How to Scan Barcodes in an ASP.NET Application

How to Set Up IronBarcode as a barcode reader in ASP.NET?

Getting started with IronBarcode in your .NET projects takes just minutes. The library supports both ASP.NET Core and traditional ASP.NET MVC applications, making it versatile for a wide range of project types.

First, install IronBarcode using the NuGet Package Manager Console:

Install-Package BarCode

Alternatively, you can install it through Visual Studio's NuGet Package Manager UI by searching for "IronBarCode" and clicking Install. The package automatically manages all dependencies, ensuring a smooth integration. For detailed installation guidance, check the IronBarcode installation guide.

Once installed, add the necessary using statement to your C# barcode reader files:

using IronBarCode;

using IronBarCode;

Imports IronBarCode

This simple import gives you access to IronBarcode's comprehensive barcode reading and generation capabilities. The library supports over 30 barcode formats, including QR Code generation, Code 128, Code 39, Data Matrix, and PDF417, covering virtually any barcode type you'll encounter in production environments. According to Microsoft's documentation on ASP.NET, proper package management is crucial for maintaining secure and efficient web applications.

How to Implement File Upload Barcode Scanning?

The most common barcode scanning scenario in ASP.NET web applications involves users uploading an image file containing barcodes in the web browsers. This implementation works perfectly for processing invoices, shipping labels, or any document with embedded barcodes.

Create a simple HTML form in your ASP.NET view using a div element:

<form method="post" enctype="multipart/form-data">
    <div class="form-group">
        <label for="barcodeFile">Select Barcode Image:</label>
        <input type="file" name="barcodeFile" id="barcodeFile"
               accept="image/*,.pdf" class="form-control" />
    </div>
    <button type="submit" class="btn btn-primary">Scan Barcode</button>
</form>
<div id="results">
    @ViewBag.BarcodeResult
</div>

<form method="post" enctype="multipart/form-data">
    <div class="form-group">
        <label for="barcodeFile">Select Barcode Image:</label>
        <input type="file" name="barcodeFile" id="barcodeFile"
               accept="image/*,.pdf" class="form-control" />
    </div>
    <button type="submit" class="btn btn-primary">Scan Barcode</button>
</form>
<div id="results">
    @ViewBag.BarcodeResult
</div>

IRON VB CONVERTER ERROR developers@ironsoftware.com

Now implement the backend controller to process the uploaded file with your ASP.NET barcode reader:

[HttpPost]
public async Task<IActionResult> ScanBarcode(IFormFile barcodeFile)
{
    if (barcodeFile != null && barcodeFile.Length > 0)
    {
        using (var stream = new MemoryStream())
        {
            await barcodeFile.CopyToAsync(stream);
            stream.Position = 0;
            // Read barcode from the uploaded image
            var results = BarcodeReader.Read(stream);
            if (results.Any())
            {
                ViewBag.BarcodeResult = string.Join(", ",
                    results.Select(r => $"{r.BarcodeType}: {r.Text}"));
            }
            else
            {
                ViewBag.BarcodeResult = "No barcodes found in the image.";
            }
        }
    }
    return View();
}

[HttpPost]
public async Task<IActionResult> ScanBarcode(IFormFile barcodeFile)
{
    if (barcodeFile != null && barcodeFile.Length > 0)
    {
        using (var stream = new MemoryStream())
        {
            await barcodeFile.CopyToAsync(stream);
            stream.Position = 0;
            // Read barcode from the uploaded image
            var results = BarcodeReader.Read(stream);
            if (results.Any())
            {
                ViewBag.BarcodeResult = string.Join(", ",
                    results.Select(r => $"{r.BarcodeType}: {r.Text}"));
            }
            else
            {
                ViewBag.BarcodeResult = "No barcodes found in the image.";
            }
        }
    }
    return View();
}

IRON VB CONVERTER ERROR developers@ironsoftware.com

This implementation handles the uploaded file by copying it to a memory stream, then using IronBarcode's BarcodeReader.Read method to extract all barcodes from the image. The method automatically detects the barcode format and returns detailed results, including the barcode type and decoded text. IronBarcode processes various image formats, including JPEG, PNG, GIF, TIFF, BMP, and even PDF documents, eliminating the need for format-specific handling code. This versatility makes it ideal for document processing scenarios discussed in Stack Overflow's barcode implementation threads.

How to Build a REST API for Barcode or QR Code Scanning?

Modern ASP.NET web applications often require barcode scanning capabilities exposed through REST APIs, enabling integration with mobile apps, SPAs, or third-party services. Here's how to create a robust barcode scanner API using ASP.NET Core:

[ApiController]
[Route("api/[controller]")]
public class BarcodeController : ControllerBase
{
    [HttpPost("scan")]
    public IActionResult ScanBarcode([FromBody] BarcodeRequest request)
    {
        try
        {
            // Convert base64 string to byte array
            byte[] imageBytes = Convert.FromBase64String(request.ImageBase64);
            // Read barcodes from the image
            var results = BarcodeReader.Read(imageBytes);
            var response = results.Select(r => new
            {
                type = r.BarcodeType.ToString(),
                value = r.Text,
                position = new { x = r.Points.Select(b => b.X).Min(), y= r.Points.Select(b => b.Y).Min(), r.Width, r.Height }
            }).ToList();
            return Ok(new { success = true, barcodes = response });
        }
        catch (Exception ex)
        {
            return BadRequest(new { success = false, error = ex.Message });
        }
    }
}
public class BarcodeRequest
{
    public string ImageBase64 { get; set; }
}

[ApiController]
[Route("api/[controller]")]
public class BarcodeController : ControllerBase
{
    [HttpPost("scan")]
    public IActionResult ScanBarcode([FromBody] BarcodeRequest request)
    {
        try
        {
            // Convert base64 string to byte array
            byte[] imageBytes = Convert.FromBase64String(request.ImageBase64);
            // Read barcodes from the image
            var results = BarcodeReader.Read(imageBytes);
            var response = results.Select(r => new
            {
                type = r.BarcodeType.ToString(),
                value = r.Text,
                position = new { x = r.Points.Select(b => b.X).Min(), y= r.Points.Select(b => b.Y).Min(), r.Width, r.Height }
            }).ToList();
            return Ok(new { success = true, barcodes = response });
        }
        catch (Exception ex)
        {
            return BadRequest(new { success = false, error = ex.Message });
        }
    }
}
public class BarcodeRequest
{
    public string ImageBase64 { get; set; }
}

IRON VB CONVERTER ERROR developers@ironsoftware.com

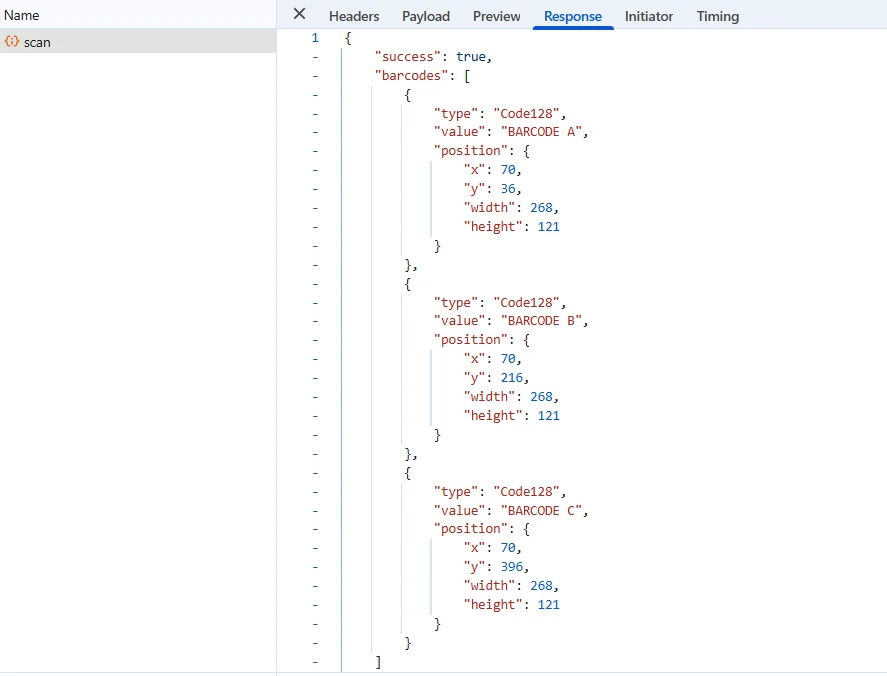

This barcode reader API endpoint accepts base64-encoded images, a standard format for transmitting images over HTTP. The response includes the barcode value and its type. The implementation follows RESTful best practices, ensuring seamless integration with any frontend framework.

The following JavaScript code is used to consume this API from a JavaScript client:

async function scanBarcode(imageFile) {
    const base64 = await convertToBase64(imageFile);
    const response = await fetch('/api/barcode/scan', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ imageBase64: base64 })
    });
    const result = await response.json();
    console.log('Scanned barcodes:', result.barcodes);
}
 async function convertToBase64(file) {
    return new Promise((resolve, reject) => {
        const reader = new FileReader();
        reader.onload = () => {
            // Remove the data URL prefix to get only the base64 string
            const base64 = reader.result.split(',')[1];
            resolve(base64);
        };
        reader.onerror = error => reject(error);
        reader.readAsDataURL(file);
    });
}

async function scanBarcode(imageFile) {
    const base64 = await convertToBase64(imageFile);
    const response = await fetch('/api/barcode/scan', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ imageBase64: base64 })
    });
    const result = await response.json();
    console.log('Scanned barcodes:', result.barcodes);
}
 async function convertToBase64(file) {
    return new Promise((resolve, reject) => {
        const reader = new FileReader();
        reader.onload = () => {
            // Remove the data URL prefix to get only the base64 string
            const base64 = reader.result.split(',')[1];
            resolve(base64);
        };
        reader.onerror = error => reject(error);
        reader.readAsDataURL(file);
    });
}

IRON VB CONVERTER ERROR developers@ironsoftware.com

This API approach enables seamless integration with modern JavaScript frameworks, mobile applications, and supports scenarios where barcode scanning needs to happen asynchronously or in batch operations.

How to Handle Challenging Barcode Images?

Real-world barcode scanning in ASP.NET web applications often involves less-than-perfect images: photos taken at angles, poor lighting conditions, or partially damaged barcodes. IronBarcode excels in these scenarios through its advanced image processing capabilities:

var options = new BarcodeReaderOptions
{
    // Balance speed vs accuracy
    Speed = ReadingSpeed.Balanced,
    // Specify expected barcode types for better performance
    ExpectBarcodeTypes = BarcodeEncoding.QRCode | BarcodeEncoding.Code128,
    // Enable automatic rotation correction
    AutoRotate = true,
    // Apply image filters for clarity
    ImageFilters = new ImageFilterCollection
    {
        new SharpenFilter(),
        new ContrastFilter(1.5f)
    },
    // Use multiple threads for faster processing
    Multithreaded = true
};
var results = BarcodeReader.Read("challenging-image.jpg", options);

var options = new BarcodeReaderOptions
{
    // Balance speed vs accuracy
    Speed = ReadingSpeed.Balanced,
    // Specify expected barcode types for better performance
    ExpectBarcodeTypes = BarcodeEncoding.QRCode | BarcodeEncoding.Code128,
    // Enable automatic rotation correction
    AutoRotate = true,
    // Apply image filters for clarity
    ImageFilters = new ImageFilterCollection
    {
        new SharpenFilter(),
        new ContrastFilter(1.5f)
    },
    // Use multiple threads for faster processing
    Multithreaded = true
};
var results = BarcodeReader.Read("challenging-image.jpg", options);

IRON VB CONVERTER ERROR developers@ironsoftware.com

The BarcodeReaderOptions class provides fine-grained control over the barcode scanning process. Setting AutoRotate to true handles images captured at any angle, while image filters enhance clarity for blurry or low-contrast barcodes. The Speed property lets you balance between processing speed and accuracy based on your specific ASP.NET application requirements. For high-volume processing, enabling multithreading significantly improves performance by utilizing all available CPU cores. This approach aligns with industry best practices for image processing in .NET applications.

Conclusion and Best Practices

Implementing barcode scanning in ASP.NET web applications with IronBarcode transforms a potentially complex task into straightforward, maintainable code. The library's ability to handle multiple formats, process imperfect images, decode barcodes, and deliver consistent results across platforms makes it an invaluable tool for enterprise applications.

For production deployments, remember to implement proper error handling, validate uploaded files for security, and consider caching frequently scanned barcodes. IronBarcode's cross-platform support ensures your barcode scanner solution works seamlessly in Docker containers and cloud environments, providing the flexibility modern applications demand. Explore the complete API documentation to discover advanced features like batch processing and PDF barcode extraction.

Ready to revolutionize your ASP.NET application with professional barcode scanning? Start your free trial to unlock the full potential of IronBarcode in your production environment.
