條碼工具

QR Code 機器學習（開發者教程）

發佈 2023年8月29日

快速回應 (QR) 代码已成为现代社会不可或缺的一部分，彻底改变了信息共享和访问的方式。这些二维条码由黑白方阵组成，可以使用智能手机相机扫描，快速检索存储的信息，例如URL、联系方式、网站URL、产品详情等。然而，随着技术的发展，QR码的功能也在不断进步。机器学习 (機器學習) 成為增強 QR 碼生成、識別和解碼流程的強大工具，從而提升用戶體驗並提高功能。

信息與數據交換的世界已被 QR 碼和條碼的廣泛使用所改變。這些二維碼提供了快速訪問數位內容的方法，並在各行各業中發揮多種功能。然而，在面對各種多樣化的代碼時，區分 QR 碼和條碼可能會具有挑戰性。然而，透過利用機器學習的力量 (機器學習) 和 .NET/C# 框架，開發者可以創建一個能夠精確分類 QR 碼和條碼的智能系統，從而簡化數據處理並提升用戶體驗。整合 IronBarcode 的解碼功能進一步強化了解決方案，使得從識別出的代碼中提取準確內容成為可能。

在本文中，我們將訓練模型來分類給定的輸入為條碼或 QR 碼，隨後我們將使用 IronBarcode 對輸入代碼進行解碼。

使用 ML.NET 模型生成器進行 QR 碼分類

模型生成器在 Visual Studio 中集成的一個工具，通過提供直觀的界面簡化了構建機器學習模型的過程。我們將使用 Model Builder 創建一個分類模型，以區分 QR 碼和條形碼。分類完成後，我們將集成 IronBarcode 來解碼識別出的代碼。

第一步：數據收集

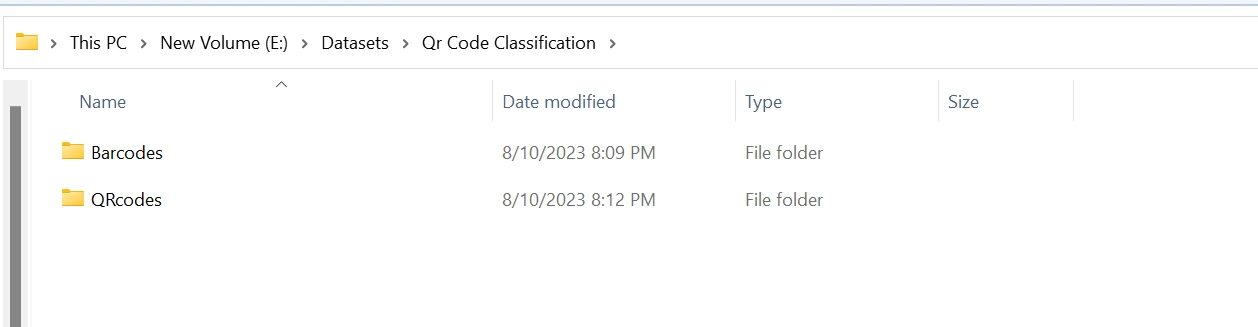

訓練任何模型的第一步是數據收集。我們需要數據來訓練模型。我已經從网上下載了數據 Kaggle您可以從任何來源下載它，根據您的喜好進行選擇。下載數據集後，創建一個主目錄，並將這兩個數據集放入該主目錄中。數據組織為兩個子目錄：

條形碼
QR碼

QR Code 機器學習（開發者教程）：圖 1

下一步是打開 Visual Studio 並創建一個新的機器學習模型。

步驟 2：在 Visual Studio 中建立專案並新增機器學習模型

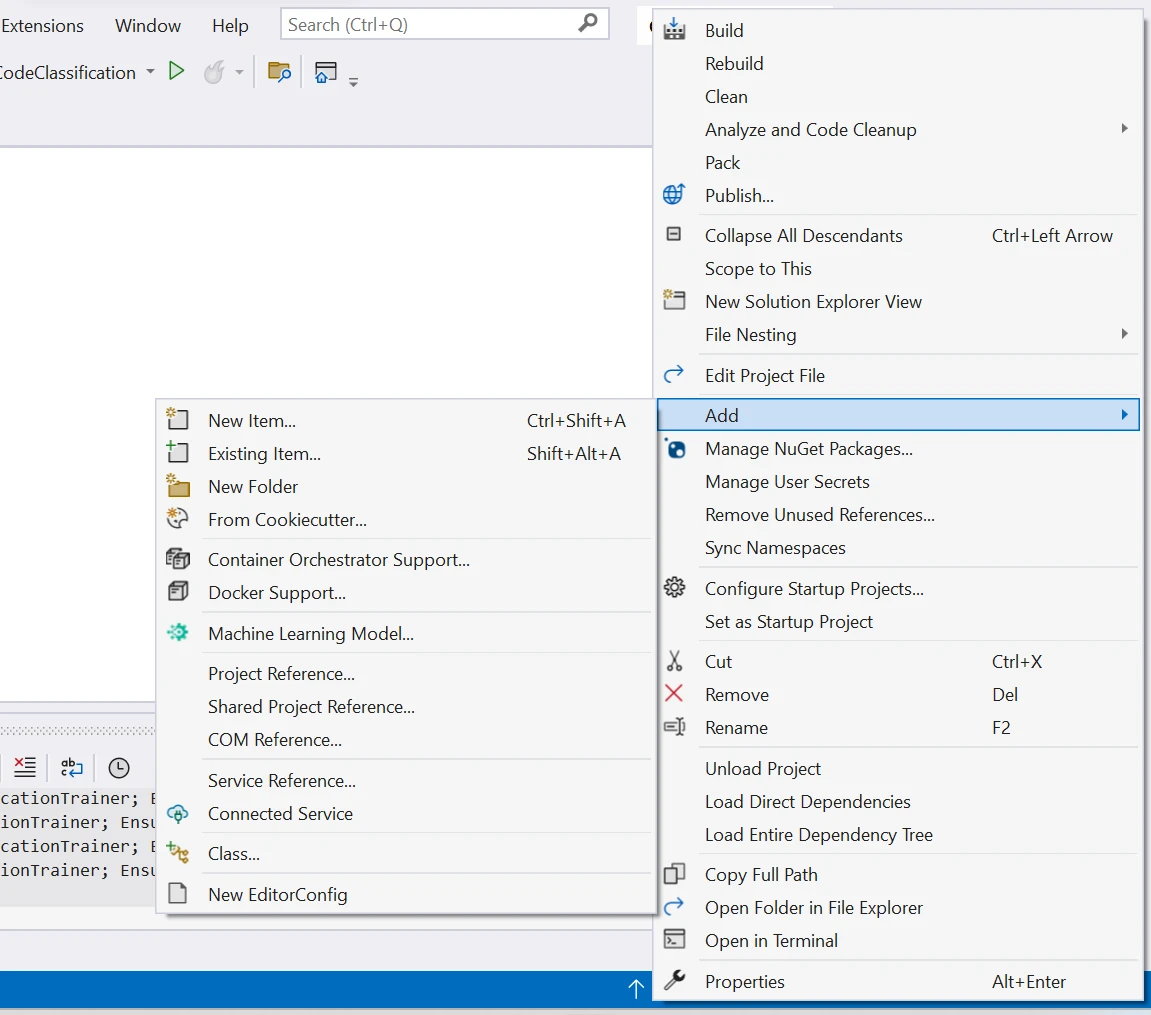

在 Visual Studio 中建立您的專案。該專案可以是任何類型，例如 ASP.NET Web API、ASP.NET MVC、WEB Forms 或控制台應用程式。在這個例子中，我使用的是控制台應用程式。從 Solution Explorer 中右鍵點擊專案。選擇新增 > 機器學習模型，如下所示。

QR碼機器學習（開發者教程）：圖2
