如何使用 C# 從模板創建 PowerPoint

PowerPoint 簡報仍然是有效傳遞商業、教育及其他領域資訊的標準。 PowerPoint 是一個靈活的工具,無論是教學、向團隊更新項目進度,或向潛在投資者進行簡報,它都能提升您的溝通效果。 然而,從頭製作簡報可能需要大量時間,而設計的效率和一致性可能不如預期。 這時 PowerPoint 範本派上用場,提供預製的幻燈片,具有可根據需求修改的主題和版面。

role="alert"> 推出 IronPPT: 來自 Iron Software 的 .NET PowerPoint 庫
IronPPT 無縫讀取和保存 PPTX 文件 - 不需要 Microsoft Office。非常適合在任何 .NET 應用程序中自動化幻燈片、文本、形狀和圖像。立即開始使用 IronPPT!

在這篇文章中,我們將看看如何使用 C# 從範本創建一個 PowerPoint。 我們可以通過使用 Microsoft [PowerPoint Interop library](https://learn.microsoft.com/en-us/previous-versions/office/office-12/ff764034(v=office.12) 來加速過程,並使客戶能夠輕鬆創建精美的簡報。

如何在 C# 中使用範本創建 PowerPoint

  1. 創建一個新的 C# 專案。
  2. 在一個新的實例中啟動 PowerPoint 程式。
  3. 將範本中的幻燈片插入到新創建的簡報中。
  4. 創建一個新文件並保存簡報。
  5. 關閉 PowerPoint 程式並結束簡報。

理解從範本製作 PowerPoint

在進入程式碼之前,首先回顧一下程式化撰寫 PowerPoint 簡報的基本概念。 通過 Microsoft 的 PowerPoint Interop library,開發人員可以使用 .NET 語言如 C# 與 PowerPoint 應用程序進行溝通。 此包公開了許多功能,包括創建幻燈片、添加文本、插入圖片和應用格式等功能。

創建一個新的 Visual Studio 專案

要開始新的 Visual Studio 專案,請按照以下指示操作。

啟動 Visual Studio 應用程式。 在使用 Visual Studio 之前,請確保已在計算機上安裝它。

選擇檔案,然後是新的,最後是專案。

如何在 C# 中使用 Create 範本製作 PowerPoint:圖 1 - 在 Visual Studio 中創建新專案。 選擇 C# 語言和控制台應用程式或控制台應用程式 (.NET Core) 專案。

從 "創建新專案" 方框的左側,選擇您希望的編程語言(例如 C#)。 接下來,從可用的專案範本清單中選擇 "控制台應用程序" 或 "控制台應用程序 (.NET Core)" 範本。 請填寫 "名稱" 欄位以給您的專案命名。

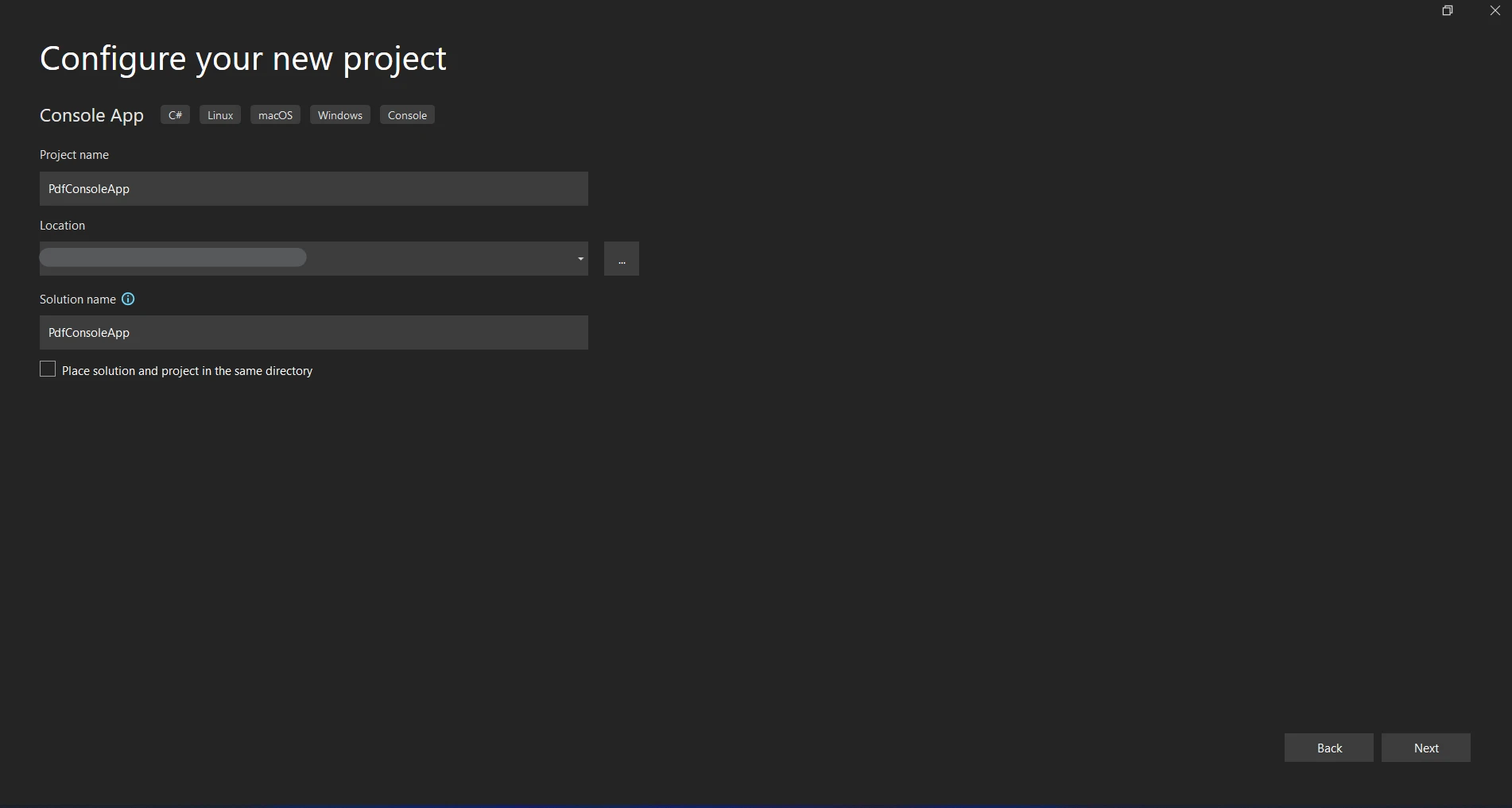

如何在 C# 中使用 Create 範本製作 PowerPoint:Fig 2 - 配置控制台應用程式專案:新增專案名稱和位置。

決定專案將儲存的位置。 點擊 "下一步" 以開始在新的控制台應用程序專案上工作。 然後選擇相應的 .NET Framework 並點擊 "創建"。

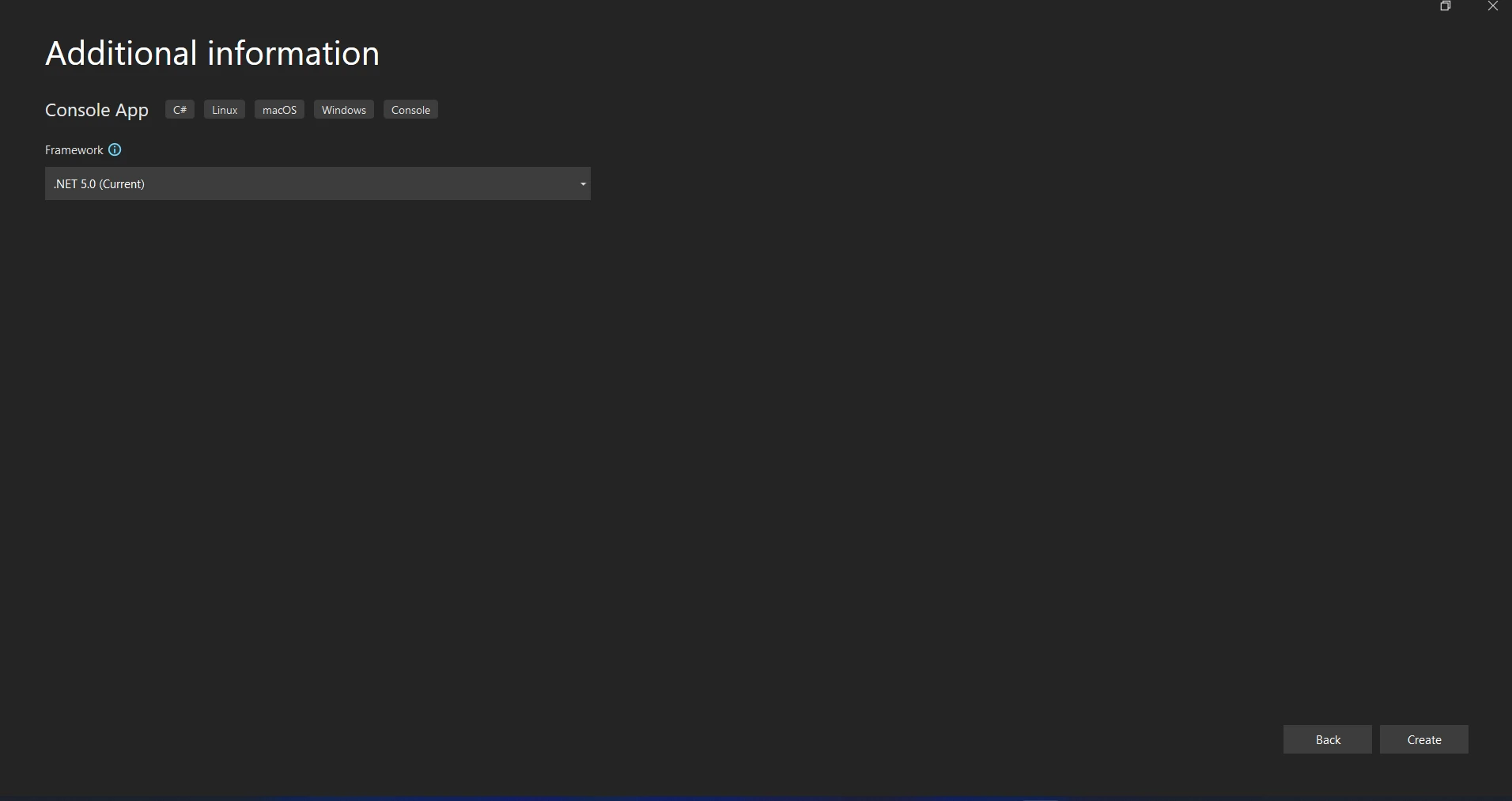

如何在 C# 中使用 Create 範本製作 PowerPoint:Fig 3 - 選擇相應的 .NET Framework 並點擊 創建。

在新建立的 C# 專案中,添加 Microsoft PowerPoint Interop library 的參考。 現在,由於這個庫,開發和與簡報互動變得更容易,它使得 C# 程式碼和 PowerPoint 應用程序之間的溝通得以實現。

使用 C# 從範本創建 PowerPoint

加載PowerPoint範本作為我們新簡報的基礎是第一步。範本中經常可以看到預定義的幻燈片布局、主題和內容占位符。 Microsoft.Office.PowerPoint.Interop library 的功能允許我們從 C# 源碼中打開範本文件並檢索其內容。

using PowerPoint = Microsoft.Office.Interop.PowerPoint;
using Microsoft.Office.Core; // Make sure to include this for MsoTriState

class Program
{
    static void Main(string[] args)
    {
        // Initialize PowerPoint application
        PowerPoint.Application powerpointApp = new PowerPoint.Application();

        // Open an existing PowerPoint file
        PowerPoint.Presentation presentation = powerpointApp.Presentations.Open(
            @"C:\Path\To\Existing\output.pptx",
            MsoTriState.msoFalse,
            MsoTriState.msoFalse,
            MsoTriState.msoTrue);

        // Insert slides from a template file into the presentation
        presentation.Slides.InsertFromFile(
            @"C:\Path\To\External\demo.pptx",
            presentation.Slides.Count + 1,
            1,
            0);

        // Save the updated presentation
        presentation.Save();

        // Close the presentation and quit PowerPoint application
        presentation.Close();
        powerpointApp.Quit();
    }
}
using PowerPoint = Microsoft.Office.Interop.PowerPoint;
using Microsoft.Office.Core; // Make sure to include this for MsoTriState

class Program
{
    static void Main(string[] args)
    {
        // Initialize PowerPoint application
        PowerPoint.Application powerpointApp = new PowerPoint.Application();

        // Open an existing PowerPoint file
        PowerPoint.Presentation presentation = powerpointApp.Presentations.Open(
            @"C:\Path\To\Existing\output.pptx",
            MsoTriState.msoFalse,
            MsoTriState.msoFalse,
            MsoTriState.msoTrue);

        // Insert slides from a template file into the presentation
        presentation.Slides.InsertFromFile(
            @"C:\Path\To\External\demo.pptx",
            presentation.Slides.Count + 1,
            1,
            0);

        // Save the updated presentation
        presentation.Save();

        // Close the presentation and quit PowerPoint application
        presentation.Close();
        powerpointApp.Quit();
    }
}
Imports PowerPoint = Microsoft.Office.Interop.PowerPoint
Imports Microsoft.Office.Core ' Make sure to include this for MsoTriState

Friend Class Program
	Shared Sub Main(ByVal args() As String)
		' Initialize PowerPoint application
		Dim powerpointApp As New PowerPoint.Application()

		' Open an existing PowerPoint file
		Dim presentation As PowerPoint.Presentation = powerpointApp.Presentations.Open("C:\Path\To\Existing\output.pptx", MsoTriState.msoFalse, MsoTriState.msoFalse, MsoTriState.msoTrue)

		' Insert slides from a template file into the presentation
		presentation.Slides.InsertFromFile("C:\Path\To\External\demo.pptx", presentation.Slides.Count + 1, 1, 0)

		' Save the updated presentation
		presentation.Save()

		' Close the presentation and quit PowerPoint application
		presentation.Close()
		powerpointApp.Quit()
	End Sub
End Class
$vbLabelText   $csharpLabel

加載範本後,我們使用它的佈局創建一個新的簡報。 我們使用 PowerPoint 演示文件(output.pptx),這可以幫助我們創建一個 PowerPoint 演示物件,這將成為我們材料的畫布。 範本的佈局和主題將被帶入這個簡報中,使它具有統一的視覺風格。

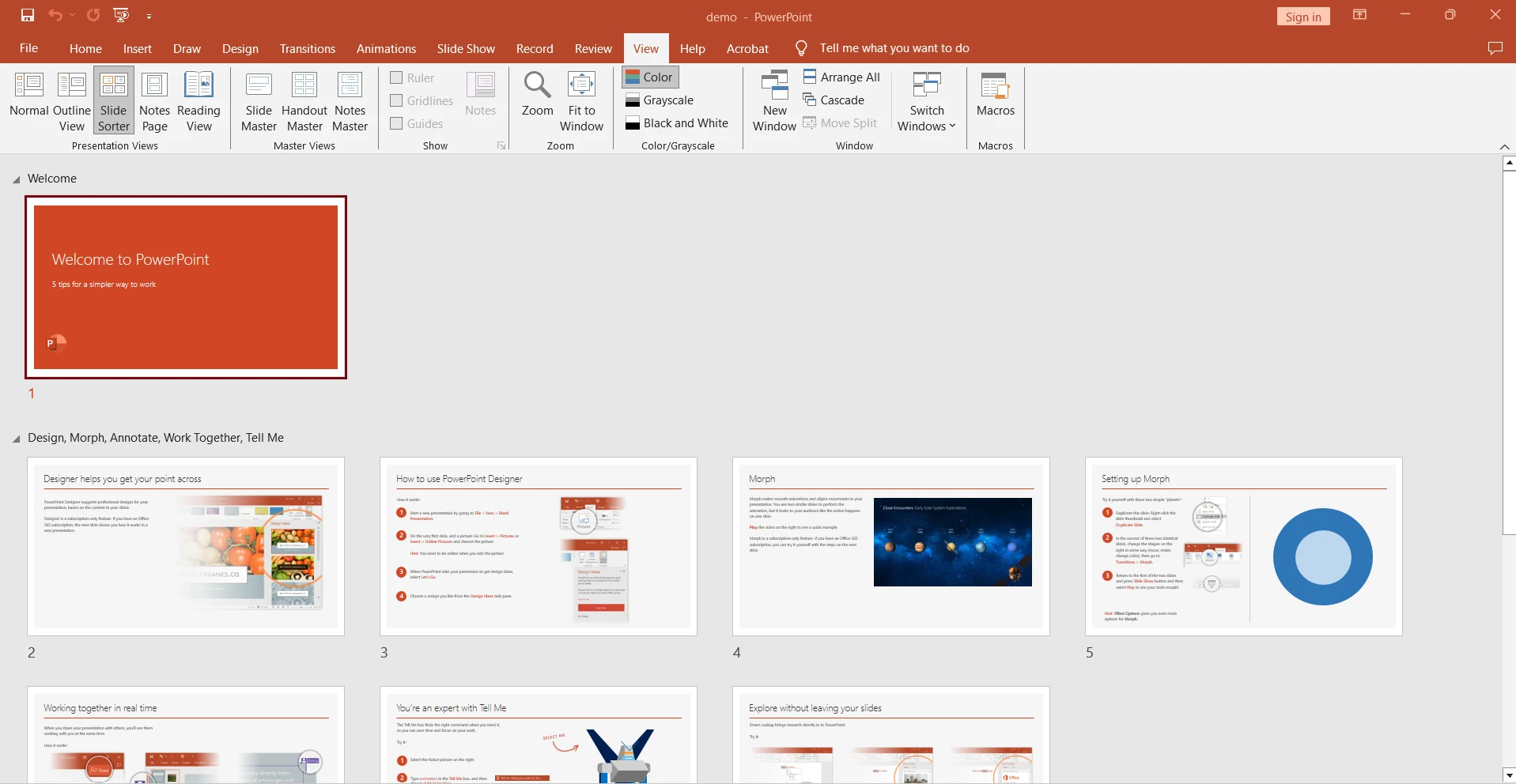

如何在 C# 中使用 Create 範本製作 PowerPoint:图4 - 第二个 PowerPoint 文件 (demo.pptx),包含您希望在演示中包含的幻灯片

presentation.Slides.InsertFromFile() 方法需要四個參數:FileNameIndexSlideStartSlideEnd

  • 指定您希望包含在您的演示中的幻燈片的 PowerPoint 文件的路徑作為第一個參數(demo.pptx)。
  • 下一個參數是您希望插入幻燈片在目標呈現中的位置。
  • 其他兩個參數是可選的。 這些參數允許我們指定開始和結束幻燈片索引。 如果我們需要提取特定範圍內的幻燈片,我們可以使用這些參數。

在使用 InsertFromFile() 方法插入幻燈片後,可以使用presentation.Save() 方法保存演示。 保存後,使用 Close() 方法關閉 PowerPoint 程序,然後使用 Quit() 方法退出演示。 通過從外部文件動態添加幻燈片的方式,您可以改善 PowerPoint 簡報的內容和靈活性。

輸出

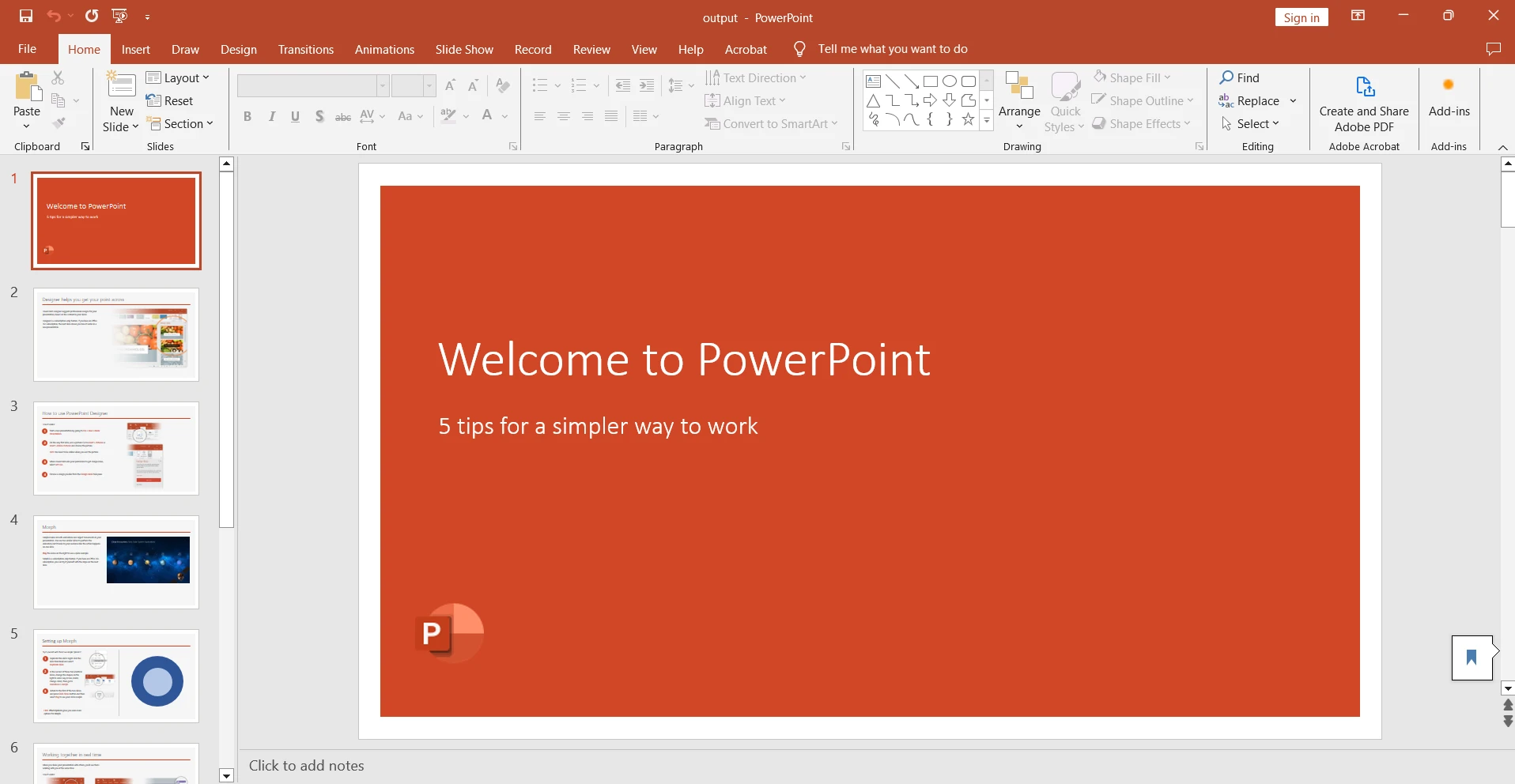

如何在 C# 中使用 Create 範本製作 PowerPoint:圖6 - 輸出:output.pptx

IronXL

介紹一個功能豐富的用於處理 Excel 文件的 C# 庫,稱為 IronXL。 Iron Software 的 IronXL 提供了多種工具,可動態創建、填充和格式化 Excel 文件。 憑藉其易用的API和詳細的文檔,IronXL 簡化了 Excel 在 C# 中的交互,為開發者提供了無縫的 Excel 相關任務體驗。

IronXL 的特點

  • 廣泛的 Excel 支持: IronXL 能夠以各種 Excel 格式開啟和操作大量的 Excel 文件,如 CSV、XLS 和 XLSX 文件格式。 開發者可以通過 IronXL 的強大解析功能,有效地從舊版和現代 Excel 文件中提取數據。
  • 高速度: IronXL 優先考慮性能優化。 使用高效的算法和內存管理策略,確保 Excel 的交互可靠且快速。 IronXL 提供減少的內存負擔和優化的處理速度,因此開發者可以輕鬆管理大型 Excel 文件。
  • 簡單和用戶友好的API: IronXL 的用戶友好API使其適合各種技能水平的開發人员。 IronXL 提供簡單的方法來讀取 Excel 文件、存取 Excel 工作簿和從單元格中獲取數據,降低了 C# 開發者的學習曲線,加速了創建和讀取現有文件的過程。

要了解更多關於 IronXL 文檔的信息,請參考這裡

安裝 IronXL

要安裝 IronXL,請使用下面步驟提供的指示和命令:

在 Visual Studio 中,導航到工具 -> NuGet 程式包管理器 -> 程式包管理器控制台。

在程式包管理器的控制台標籤中輸入以下命令:

Install-Package IronXL.Excel

IronXL 程式包在下載並安裝到當前專案後,即可使用。

使用 IronXL 創建 Excel

现在,讓我們查看一個實際的代碼示例,展示如何使用 IronXL 在 C# 中寫入數據到 Excel 文檔中。 我們將演示如何啟動一個新的 Excel 工作簿,填充一個工作表,然後將信息保存到一個文件中:

using IronXL;

class Program
{
    static void Main(string[] args)
    {
        // Create a new WorkBook object
        WorkBook workBook = WorkBook.Create(ExcelFileFormat.XLSX);

        // Add a new WorkSheet to the workbook
        WorkSheet workSheet = workBook.CreateWorkSheet("Sheet1");

        // Define sample data
        string[,] data = {
            { "Name", "Age", "City" },
            { "Superman", "35", "Metropolis" },
            { "Batman", "34", "Gotham City" },
            { "Flash", "30", "Central City" }
        };

        // Populate the worksheet with data
        for (int row = 0; row < data.GetLength(0); row++)
        {
            for (int col = 0; col < data.GetLength(1); col++)
            {
                workSheet.SetCellValue(row, col, data[row, col]);
            }
        }

        // Save the workbook to a .xlsx file
        workBook.SaveAs("Demo.xlsx");

        // Close the workbook
        workBook.Close();
    }
}
using IronXL;

class Program
{
    static void Main(string[] args)
    {
        // Create a new WorkBook object
        WorkBook workBook = WorkBook.Create(ExcelFileFormat.XLSX);

        // Add a new WorkSheet to the workbook
        WorkSheet workSheet = workBook.CreateWorkSheet("Sheet1");

        // Define sample data
        string[,] data = {
            { "Name", "Age", "City" },
            { "Superman", "35", "Metropolis" },
            { "Batman", "34", "Gotham City" },
            { "Flash", "30", "Central City" }
        };

        // Populate the worksheet with data
        for (int row = 0; row < data.GetLength(0); row++)
        {
            for (int col = 0; col < data.GetLength(1); col++)
            {
                workSheet.SetCellValue(row, col, data[row, col]);
            }
        }

        // Save the workbook to a .xlsx file
        workBook.SaveAs("Demo.xlsx");

        // Close the workbook
        workBook.Close();
    }
}
Imports IronXL

Friend Class Program
	Shared Sub Main(ByVal args() As String)
		' Create a new WorkBook object
		Dim workBook As WorkBook = WorkBook.Create(ExcelFileFormat.XLSX)

		' Add a new WorkSheet to the workbook
		Dim workSheet As WorkSheet = workBook.CreateWorkSheet("Sheet1")

		' Define sample data
		Dim data(,) As String = {
			{ "Name", "Age", "City" },
			{ "Superman", "35", "Metropolis" },
			{ "Batman", "34", "Gotham City" },
			{ "Flash", "30", "Central City" }
		}

		' Populate the worksheet with data
		For row As Integer = 0 To data.GetLength(0) - 1
			For col As Integer = 0 To data.GetLength(1) - 1
				workSheet.SetCellValue(row, col, data(row, col))
			Next col
		Next row

		' Save the workbook to a .xlsx file
		workBook.SaveAs("Demo.xlsx")

		' Close the workbook
		workBook.Close()
	End Sub
End Class
$vbLabelText   $csharpLabel

在這個代碼示例中,我們首先使用 IronXL 的 Create() 函數創建一個新的 WorkBook 物件,指定所需的 Excel 文件格式。 下一步是在工作簿中創建一個新的工作表,並定義一些樣本數據在一個二維數組中。 接下來,我們利用嵌套循環來訪問和設置不同單元格的值,以填充工作表的樣本數據。 為了釋放系統資源,我們在使用 SaveAs() 方法將其保存到一個名為 "Demo.xlsx" 的文件後關閉工作簿。 同樣,我們可以為目標文件生成多個工作表。

下面顯示的是作為輸出的 Excel 文件。 要獲取有關寫入 Excel 文件的更多信息,請參考程式碼範例頁面

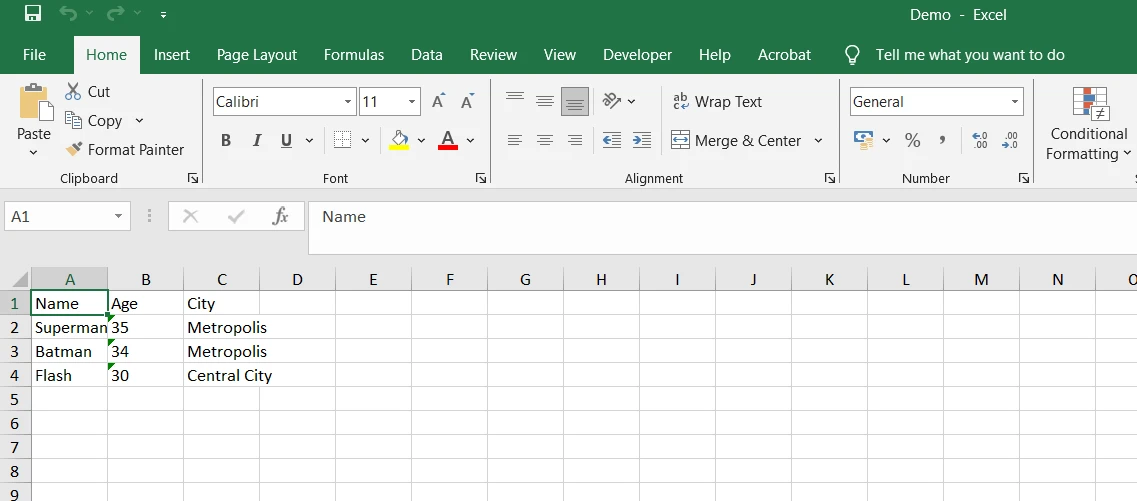

如何在 C# 中使用 Create 範本製作 PowerPoint:圖6 - Excel 文件輸出

結論

總而言之,利用 C#從範本創建 PowerPoint 簡報使用户能提高設計的一致性,加速工作流程,並創造出具有影響的内容。 開發者可以透過自動化創建過程並使用 Microsoft PowerPoint Interop library 的功能來節省時間和精力,並确保專業效果。 學習這種方法將幫助你作為演講者、商業專業人士或教育者提高演示技巧,並通過引人注目的幻燈片吸引您的觀眾。

對於 C# 開發者, IronXL 是一個 Microsoft Excel 的強大替代品,提供對 Excel 的完整支持、優秀的性能以及與 .NET 框架的無縫整合。 IronXL 的用戶友好API和對 Excel 文檔的精細控制簡化了 C# 中的 Excel 寫作。 這促進開發者自動化 Excel 相關任務、導出數據和生成動態報告的過程。 無論是為桌面、 Web 還是移動應用創建 Excel 文件, C#開發者都可以依靠 IronXL 簡化 Excel 相關任務並在他們的 C# 程序中發揮 Excel 的全部潛力。

IronXL 在首次啟動時價格為 $799。 另外,用户可以選擇付費一年會員費以獲取產品支援和更新。 IronXL 提供保障以防止未經授權的擴散,收費詳情請造訪此授權頁面。 點擊此網站連結查看更多 Iron Software。 View more about Iron Software by clicking this website link.
