Cómo el OCR con visión artificial mejora la precisión del reconocimiento de texto

¿Cuál es la relación entre la visión por ordenador y el reconocimiento óptico de caracteres?

La visión por ordenador abarca el campo más amplio de enseñar a las máquinas a interpretar la información visual, mientras que OCR se centra específicamente en la conversión de texto impreso o manuscrito dentro de un archivo de imagen en texto codificado por la máquina. Optical character recognition operates as a specialized application within computer vision, drawing on many of the same underlying techniques for image analysis and pattern recognition.

El proceso moderno de OCR consta de tres etapas interconectadas. La detección de texto identifica regiones de texto dentro de una imagen escaneada que contienen caracteres individuales, aislando estas áreas de fondos, gráficos y otros elementos visuales. A continuación, el preprocesamiento de imágenes mejora estas regiones detectadas, corrigiendo las distorsiones y mejorando el contraste para que las imágenes de los caracteres sean más distinguibles. Por último, el reconocimiento de caracteres aplica la concordancia de patrones y la inferencia de redes neuronales para convertir la representación visual de cada glifo almacenado en su correspondiente texto digital.

La tecnología de reconocimiento óptico de caracteres tradicional tenía problemas cuando alguna de estas etapas se topaba con una entrada imperfecta. Un escaneado ligeramente girado puede producir un completo sinsentido, mientras que las imágenes de entrada de baja resolución o los documentos impresos con patrones de fondo suelen fallar por completo. Computer vision techniques address these limitations by making each pipeline stage more adaptive and resilient, enabling successful recognition across business documents, bank statements, and even handwritten notes.

The fastest way to see OCR working in your .NET project is to run a basic recognition pass:

using IronOcr;

// Initialize the optical character reader
var ocr = new IronTesseract();

// Load scanned document or image file
using var input = new OcrInput();

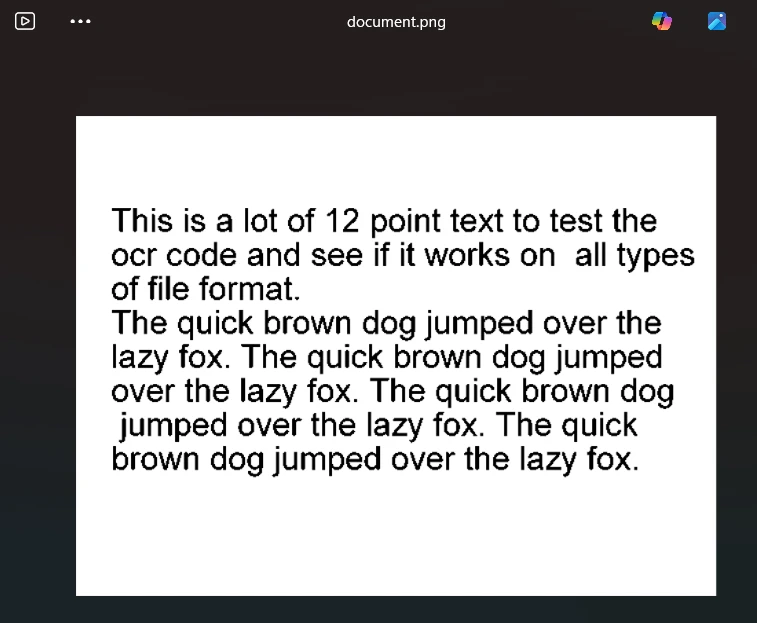

input.LoadImage("document.png");

// Perform text recognition and data extraction
OcrResult result = ocr.Read(input);
Console.WriteLine(result.Text);

using IronOcr;

// Initialize the optical character reader
var ocr = new IronTesseract();

// Load scanned document or image file
using var input = new OcrInput();
input.LoadImage("document.png");

// Perform text recognition and data extraction
OcrResult result = ocr.Read(input);
Console.WriteLine(result.Text);

Imports IronOcr

' Initialize the optical character reader
Dim ocr As New IronTesseract()

' Load scanned document or image file
Using input As New OcrInput()
    input.LoadImage("document.png")

    ' Perform text recognition and data extraction
    Dim result As OcrResult = ocr.Read(input)
    Console.WriteLine(result.Text)
End Using

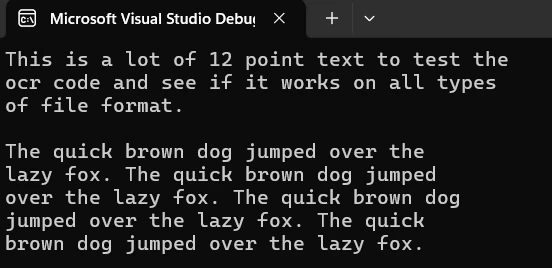

The code above demonstrates the simplest OCR workflow using IronOCR. The IronTesseract class provides a managed wrapper around the Tesseract 5 engine, while OcrInput handles image file loading and format conversion. For clean, well-formatted text documents, this basic optical character recognition approach often suffices. Sin embargo, los documentos escaneados en el mundo real rara vez llegan en perfectas condiciones, por lo que el preprocesamiento resulta esencial para extraer el texto con precisión.

¿Cómo mejora el preprocesamiento de imágenes el reconocimiento de textos?

Image preprocessing applies computer vision operations to enhance input quality before the OCR engine analyzes it. Estas transformaciones abordan las causas más comunes de los fallos de OCR: rotación, ruido, bajo contraste y resolución insuficiente. Cada técnica de preprocesamiento se dirige a un defecto específico de la imagen, y su combinación estratégica puede rescatar documentos impresos e imágenes escaneadas que de otro modo serían ilegibles.

Deskewing corrects rotational misalignment that occurs when documents are scanned at an angle. Incluso una ligera rotación afecta significativamente a la precisión del OCR, ya que el software de reconocimiento óptico de caracteres espera que las líneas de texto discurran horizontalmente. La operación de corrección analiza los ángulos de las líneas de texto y aplica una rotación correctiva para alinear el contenido.

Noise reduction removes digital artifacts, speckles, and scanner-introduced distortions that can be misinterpreted as individual characters. Los patrones de fondo, las marcas de polvo y los artefactos de compresión crean ruido que interfiere con la segmentación precisa de los caracteres en la imagen original.

Binarization converts images to pure black and white, eliminating color information and grayscale gradients. Esta simplificación ayuda al motor de reconocimiento a distinguir el texto impreso del fondo de forma más definitiva, sobre todo en documentos con papel de color o impresiones descoloridas, donde identificar las letras se convierte en un reto.

Resolution enhancement increases pixel density for poor-quality scans or photographs. Higher resolution provides more detail for the OCR software to analyze, improving its ability to distinguish between similar-looking characters and enabling successful recognition even on degraded input.

using IronOcr;

var ocr = new IronTesseract();

// Load poor quality scan for document processing
using var input = new OcrInput();
input.LoadImage("low-quality-scan.jpg");

// Apply preprocessing filters for improved accuracy
input.Deskew();                   // Correct rotational skew in scanned image
input.DeNoise();                  // Remove digital artifacts from input
input.Binarize();                 // Convert to black and white for text extraction
input.EnhanceResolution(300);     // Boost to 300 DPI for single character clarity

OcrResult result = ocr.Read(input);
Console.WriteLine($"Extracted: {result.Text}");

using IronOcr;

var ocr = new IronTesseract();

// Load poor quality scan for document processing
using var input = new OcrInput();
input.LoadImage("low-quality-scan.jpg");

// Apply preprocessing filters for improved accuracy
input.Deskew();                   // Correct rotational skew in scanned image
input.DeNoise();                  // Remove digital artifacts from input
input.Binarize();                 // Convert to black and white for text extraction
input.EnhanceResolution(300);     // Boost to 300 DPI for single character clarity

OcrResult result = ocr.Read(input);
Console.WriteLine($"Extracted: {result.Text}");

Imports IronOcr

Dim ocr As New IronTesseract()

' Load poor quality scan for document processing
Using input As New OcrInput()
    input.LoadImage("low-quality-scan.jpg")

    ' Apply preprocessing filters for improved accuracy
    input.Deskew()                   ' Correct rotational skew in scanned image
    input.DeNoise()                  ' Remove digital artifacts from input
    input.Binarize()                 ' Convert to black and white for text extraction
    input.EnhanceResolution(300)     ' Boost to 300 DPI for single character clarity

    Dim result As OcrResult = ocr.Read(input)
    Console.WriteLine($"Extracted: {result.Text}")
End Using

This example chains multiple preprocessing filters before performing OCR. The Deskew() method analyzes the document and applies rotational correction, while DeNoise() removes speckles and artifacts from the text image. The Binarize() call converts the scanned image to pure black and white for cleaner text extraction, and EnhanceResolution() boosts the image to 300 DPI -- the recommended minimum for accurate character recognition.

The order of filter application matters. Por lo general, la eliminación de distorsiones debe realizarse al principio de la cadena, ya que los filtros posteriores funcionan mejor en imágenes correctamente alineadas. La reducción de ruido antes de la binarización ayuda a evitar que los artefactos se codifiquen permanentemente en la conversión a blanco y negro. Experimenting with filter combinations for specific document types often reveals the optimal sequence for a given use case, whether the OCR application processes invoices, receipts, patient records, or scanned contracts.

¿Qué modelos de aprendizaje profundo potencian el OCR moderno?

Contemporary OCR engines rely on deep learning architectures that have revolutionized text recognition accuracy. A diferencia de los enfoques tradicionales, que comparaban los caracteres con plantillas predefinidas, los modelos de OCR basados en redes neuronales aprenden a reconocer patrones de texto a partir de vastos conjuntos de datos de entrenamiento, lo que les permite manejar variaciones de fuentes, estilos de escritura e imágenes degradadas con mucha más eficacia. Este enfoque de aprendizaje automático impulsa las soluciones de OCR más capaces de la actualidad.

The recognition pipeline typically combines two neural network types. Convolutional Neural Networks (CNNs) excel at feature extraction from images. These networks process the input image through multiple layers that progressively identify increasingly complex patterns -- from basic edges and curves to complete character shapes. The CNN produces a feature map that encodes the visual characteristics of the text region, handling both printed text and handwritten text with improved accuracy.

A continuación, las redes de memoria a largo plazo (LSTM) procesan estas características como una secuencia, reconociendo que el texto digital fluye en un orden específico. Las LSTM conservan la memoria de entradas anteriores, lo que les permite comprender el contexto y manejar la naturaleza secuencial del lenguaje escrito. This combination -- often called CRNN (Convolutional Recurrent Neural Network) -- forms the backbone of modern OCR accuracy and enables intelligent character recognition across multiple languages.

The Tesseract 5 engine that powers IronOCR implements this LSTM-based architecture, representing a significant advancement over earlier versions that relied purely on traditional pattern recognition. El enfoque de la red neuronal maneja fuentes específicas, oclusiones parciales y degradación de la imagen que derrotarían a los sistemas de OCR basados en plantillas.

using IronOcr;

var ocr = new IronTesseract();

// Configure OCR engine for multilingual text recognition
ocr.Language = OcrLanguage.English;  // IronOCR supports 125+ languages

// Process PDF with mixed handwriting styles and printed text

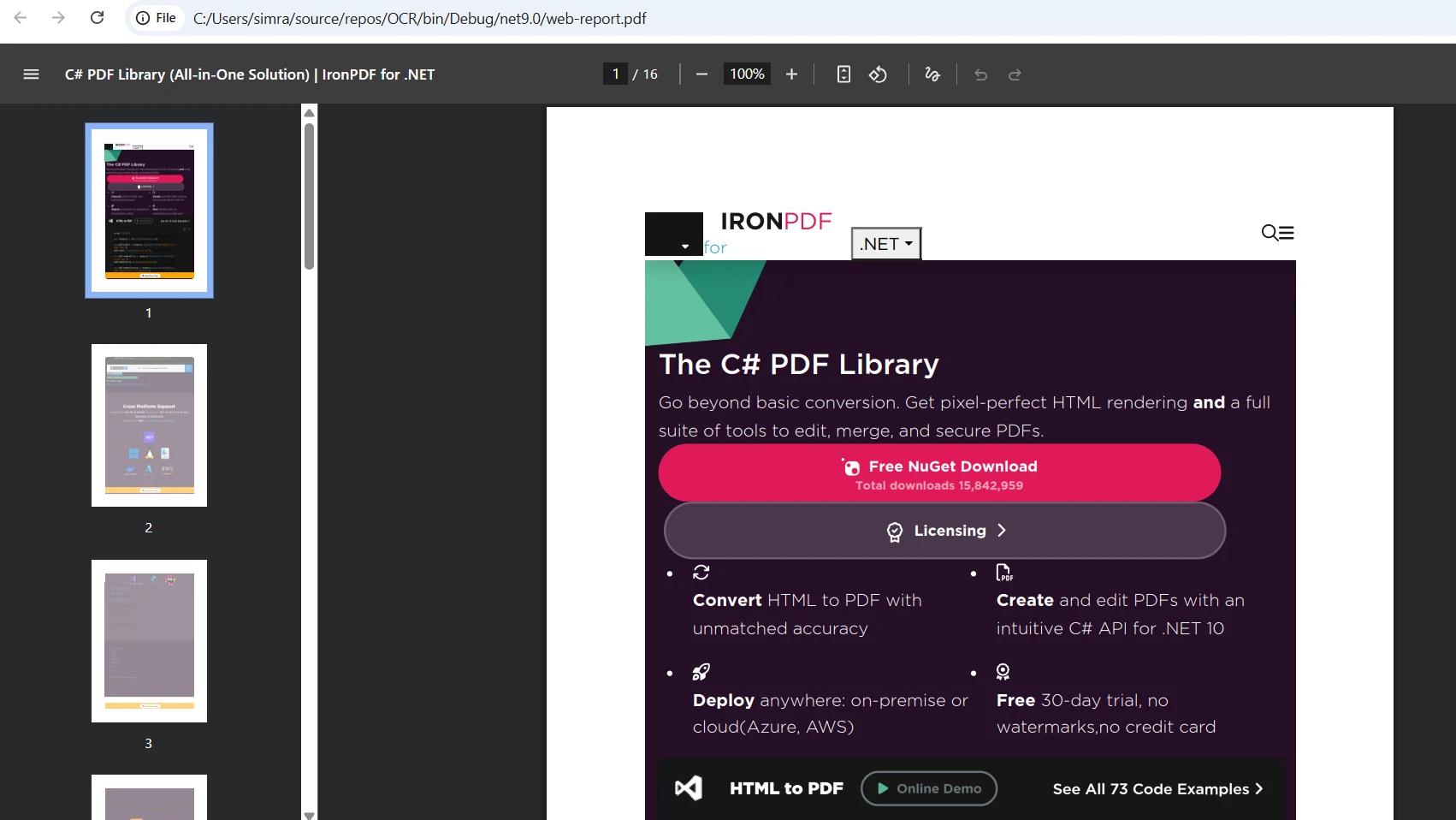

using var input = new OcrInput("web-report.pdf");
input.Deskew();

OcrResult result = ocr.Read(input);

// Access detailed recognition data including text regions
foreach (var page in result.Pages)
{
    Console.WriteLine($"Page {page.PageNumber}: {page.Text}");
}

using IronOcr;

var ocr = new IronTesseract();

// Configure OCR engine for multilingual text recognition
ocr.Language = OcrLanguage.English;  // IronOCR supports 125+ languages

// Process PDF with mixed handwriting styles and printed text
using var input = new OcrInput("web-report.pdf");
input.Deskew();

OcrResult result = ocr.Read(input);

// Access detailed recognition data including text regions
foreach (var page in result.Pages)
{
    Console.WriteLine($"Page {page.PageNumber}: {page.Text}");
}

Imports IronOcr

Dim ocr As New IronTesseract()

' Configure OCR engine for multilingual text recognition
ocr.Language = OcrLanguage.English  ' IronOCR supports 125+ languages

' Process PDF with mixed handwriting styles and printed text
Using input As New OcrInput("web-report.pdf")
    input.Deskew()

    Dim result As OcrResult = ocr.Read(input)

    ' Access detailed recognition data including text regions
    For Each page In result.Pages
        Console.WriteLine($"Page {page.PageNumber}: {page.Text}")
    Next
End Using

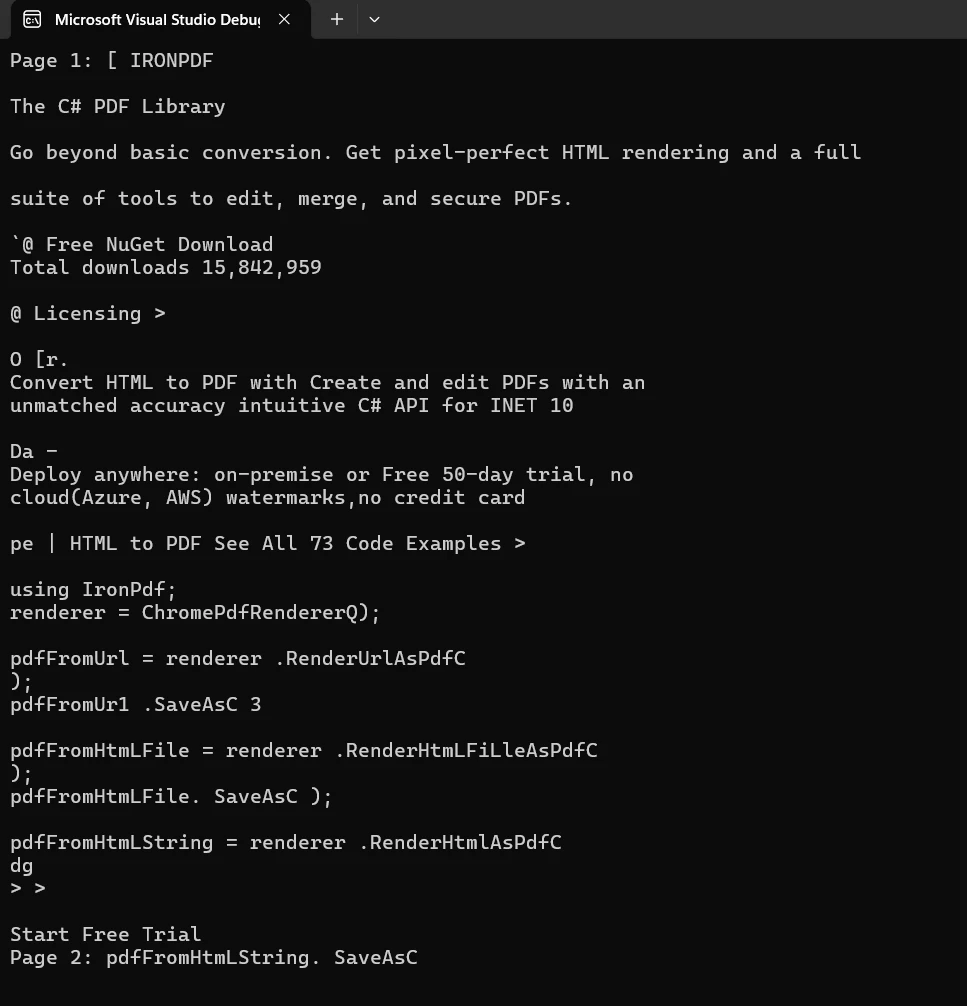

The IronTesseract class provides access to Tesseract 5's neural network capabilities through a clean .NET interface. The OcrResult object returned contains not just the extracted text but structured data, including pages, paragraphs, lines, and individual words with their confidence scores and bounding coordinates.

How Do You Enable Region-Based OCR for Forms and Tables?

Region-based OCR restricts recognition to defined areas of an image, which is useful when documents contain specific zones of interest such as form fields, invoice line items, or table cells. This targeted approach improves both speed and accuracy by focusing computational resources on relevant content.

using IronOcr;
using IronSoftware.Drawing;

var ocr = new IronTesseract();

using var input = new OcrInput();
input.LoadImage("invoice.jpg");

// Define a crop region for the total amount field (x, y, width, height in pixels)
var totalRegion = new CropRectangle(x: 600, y: 800, width: 300, height: 50);
input.AddRegion(totalRegion);

OcrResult result = ocr.Read(input);
Console.WriteLine($"Invoice total: {result.Text}");

using IronOcr;
using IronSoftware.Drawing;

var ocr = new IronTesseract();

using var input = new OcrInput();
input.LoadImage("invoice.jpg");

// Define a crop region for the total amount field (x, y, width, height in pixels)
var totalRegion = new CropRectangle(x: 600, y: 800, width: 300, height: 50);
input.AddRegion(totalRegion);

OcrResult result = ocr.Read(input);
Console.WriteLine($"Invoice total: {result.Text}");

Imports IronOcr
Imports IronSoftware.Drawing

Dim ocr As New IronTesseract()

Using input As New OcrInput()
    input.LoadImage("invoice.jpg")

    ' Define a crop region for the total amount field (x, y, width, height in pixels)
    Dim totalRegion As New CropRectangle(x:=600, y:=800, width:=300, height:=50)
    input.AddRegion(totalRegion)

    Dim result As OcrResult = ocr.Read(input)
    Console.WriteLine($"Invoice total: {result.Text}")
End Using

Combining region-based OCR with confidence thresholds gives you fine-grained control over data quality. For financial documents and legal materials, flagging any word below an 85% confidence level for secondary review is a practical baseline. You can tune the threshold per document type based on the quality of scans arriving from each source.

Learn more about region-based OCR and crop rectangles in the IronOCR documentation.

How Can Developers Optimize OCR Accuracy Programmatically?

Beyond applying standard preprocessing filters, you can fine-tune how OCR performs for specific document types and quality requirements. Confidence scoring, automatic filter optimization, and searchable PDF generation all contribute to maximizing recognition accuracy in production applications that must recognize text reliably across diverse document types.

Confidence scores indicate how certain the engine is about each recognized element. El análisis de estas puntuaciones ayuda a identificar áreas problemáticas que pueden necesitar verificación manual o enfoques de procesamiento alternativos. Applications can set confidence thresholds below which results are flagged for review -- essential for sensitive documents that require high accuracy.

using IronOcr;

var ocr = new IronTesseract();

// Load business document for OCR processing
using var input = new OcrInput("receipt.jpg");

// Let the system determine optimal preprocessing for OCR accuracy
string suggestedCode = OcrInputFilterWizard.Run(
    "receipt.jpg",
    out double confidence,
    ocr);

Console.WriteLine($"Achieved confidence: {confidence:P1}");
Console.WriteLine($"Optimal filter chain: {suggestedCode}");

// Apply recommended filters for successful recognition
input.DeNoise();
input.Deskew();

OcrResult result = ocr.Read(input);

// Analyze word-level confidence for extracted text
foreach (var word in result.Words)
{
    if (word.Confidence < 0.85)
    {
        Console.WriteLine($"Low confidence: '{word.Text}' ({word.Confidence:P0})");
    }
}

using IronOcr;

var ocr = new IronTesseract();

// Load business document for OCR processing
using var input = new OcrInput("receipt.jpg");

// Let the system determine optimal preprocessing for OCR accuracy
string suggestedCode = OcrInputFilterWizard.Run(
    "receipt.jpg",
    out double confidence,
    ocr);

Console.WriteLine($"Achieved confidence: {confidence:P1}");
Console.WriteLine($"Optimal filter chain: {suggestedCode}");

// Apply recommended filters for successful recognition
input.DeNoise();
input.Deskew();

OcrResult result = ocr.Read(input);

// Analyze word-level confidence for extracted text
foreach (var word in result.Words)
{
    if (word.Confidence < 0.85)
    {
        Console.WriteLine($"Low confidence: '{word.Text}' ({word.Confidence:P0})");
    }
}

Imports IronOcr

Dim ocr As New IronTesseract()

' Load business document for OCR processing
Using input As New OcrInput("receipt.jpg")

    ' Let the system determine optimal preprocessing for OCR accuracy
    Dim confidence As Double
    Dim suggestedCode As String = OcrInputFilterWizard.Run("receipt.jpg", confidence, ocr)

    Console.WriteLine($"Achieved confidence: {confidence:P1}")
    Console.WriteLine($"Optimal filter chain: {suggestedCode}")

    ' Apply recommended filters for successful recognition
    input.DeNoise()
    input.Deskew()

    Dim result As OcrResult = ocr.Read(input)

    ' Analyze word-level confidence for extracted text
    For Each word In result.Words
        If word.Confidence < 0.85 Then
            Console.WriteLine($"Low confidence: '{word.Text}' ({word.Confidence:P0})")
        End If
    Next
End Using

The OcrInputFilterWizard analyzes an image and tests various filter combinations to determine which preprocessing chain produces the highest confidence results. This automated approach eliminates guesswork when handling unfamiliar document types. The wizard returns both the achieved confidence level and the code needed to reproduce the optimal configuration, streamlining OCR application development for business processes.

El análisis de confianza a nivel de palabra que se muestra en el bucle proporciona una evaluación granular de la calidad. Las aplicaciones que procesan documentos financieros, historiales de pacientes o material jurídico suelen requerir este nivel de escrutinio para garantizar que los datos extraídos cumplen las normas de precisión. Las palabras que caen por debajo del umbral de confianza pueden activar procesos de verificación secundarios o intentos de reconocimiento alternativos, apoyando los flujos de trabajo de gestión de datos que exigen fiabilidad.

using IronOcr;

var ocr = new IronTesseract();

using var input = new OcrInput("scanned-contract.pdf");
input.Deskew();
input.DeNoise();

OcrResult result = ocr.Read(input);

// Export as searchable PDF with embedded text layer
result.SaveAsSearchablePdf("searchable-contract.pdf");
Console.WriteLine("Searchable PDF saved successfully.");

using IronOcr;

var ocr = new IronTesseract();

using var input = new OcrInput("scanned-contract.pdf");
input.Deskew();
input.DeNoise();

OcrResult result = ocr.Read(input);

// Export as searchable PDF with embedded text layer
result.SaveAsSearchablePdf("searchable-contract.pdf");
Console.WriteLine("Searchable PDF saved successfully.");

Imports IronOcr

Dim ocr As New IronTesseract()

Using input As New OcrInput("scanned-contract.pdf")
    input.Deskew()
    input.DeNoise()

    Dim result As OcrResult = ocr.Read(input)

    ' Export as searchable PDF with embedded text layer
    result.SaveAsSearchablePdf("searchable-contract.pdf")
    Console.WriteLine("Searchable PDF saved successfully.")
End Using

How Do You Compare OCR Performance Across Tipo de documentos?

Different document categories -- printed forms, handwritten notes, low-quality fax transmissions, and high-resolution camera captures -- respond differently to preprocessing and recognition settings. Benchmarking your pipeline against representative samples from each category reveals where accuracy gaps exist and which filters to tune.

These accuracy improvements are directional estimates based on preprocessing effect research from academic OCR benchmarking studies. Actual results vary depending on scan equipment, document age, and content complexity. Running the OcrInputFilterWizard against your own sample set gives you empirical data specific to your pipeline.

Explore the full list of available IronOCR preprocessing filters to understand all options available to you when tuning a pipeline.

What Are the Key IronOCR Features for Production Document Processing?

When deploying OCR in production, several IronOCR capabilities beyond basic recognition become important for reliability and throughput. Understanding these features helps you design a pipeline that scales without sacrificing accuracy.

Multi-format input support -- IronOCR accepts images (PNG, JPEG, TIFF, BMP, GIF, WEBP), PDF files, and multi-page TIFFs through a single unified API. This means you can handle whatever format arrives from scanning stations, email attachments, or document management systems without writing format-specific code paths.

Thread safety -- The IronTesseract class is thread-safe when you create a single instance and share it across threads. For high-throughput applications, create one instance per thread or use a pool to avoid lock contention on the underlying Tesseract engine.

Barcode and QR code co-processing -- IronOCR can read barcodes and QR codes from the same image in a single pass, removing the need for a separate barcode library when processing mixed-content documents such as shipping labels or product inventory sheets.

Output format options -- Beyond plain text, IronOCR can return structured data in HOCR format, export directly to searchable PDFs, and provide word bounding boxes suitable for downstream data extraction workflows.

Review the complete IronOCR features overview to see all capabilities before finalizing your architecture.

¿Cuales son tus próximos pasos?

Computer vision techniques fundamentally transform optical character recognition from a technology that only works with perfect input into one capable of handling the messy reality of scanned documents, photographs, and degraded images. The preprocessing stage -- deskewing, denoising, binarization, and resolution enhancement -- addresses physical capture defects, while neural network architectures such as CNN-LSTM provide script-recognition intelligence to accurately interpret varied fonts and handwriting styles.

For .NET developers, IronOCR packages these capabilities into a managed library that simplifies native Tesseract integration while adding practical enhancements for production use. The combination of automatic preprocessing optimization, detailed confidence reporting, and structured result data enables document processing systems that perform reliably across diverse real-world inputs -- from printed documents to handwritten notes -- and support multilingual OCR across multiple languages.

Para seguir adelante:

• Download the IronOCR free trial and run the code examples from this guide against your own documents
• Review the IronOCR tutorials for step-by-step walkthroughs covering common use cases such as PDF text extraction, form field reading, and batch processing
• Explore the IronOCR API reference to understand the full surface of IronTesseract, OcrInput, and OcrResult
• Check IronOCR licensing options to choose the right plan for your deployment scenario
