What is IronXL?

IronXL for Python is a robust library developed by Iron Software that allows developers to create, read, and edit Excel files (XLS, XLSX, and CSV) in Python projects. Here are some key features and benefits of using IronXL:

What is python-docx

python-docx is a Python library that creates, modifies, and works with Microsoft Word documents such as .docx files. It provides a simple API to interact with Word documents, allowing you to perform tasks such as adding text, formatting, inserting tables and images, and more.

Key Features

Prerequisites

Before we dive into the code, ensure that you have the following prerequisites:

1. Python Installed: Make sure you have Python installed on your machine. You can download it from the official Python website.
2. IronXL Installed: You need to install the IronXL package. You can do this using pip.
3. python-docx Installed: You need to install the python-docx package. You can do this using pip.
4. Excel File: Create a sample Excel file with data.

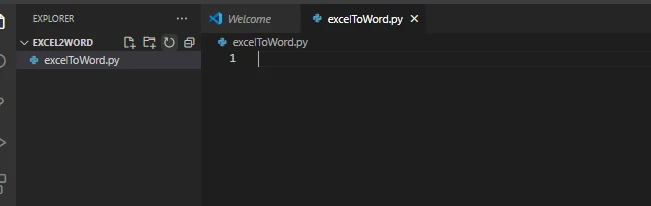

Step 1: Create a Python File Named excelToWord.py

Open your favorite IDE like Visual Studio Code and create a file called excelToWord.py.

Step 2: Add IronXL and python-docx Packages

Use Pip to install the IronXL and python-docx packages.

pip install IronXL python-docx

pip install IronXL python-docx

Step 3: Create or Add an Excel File to the Project Folder

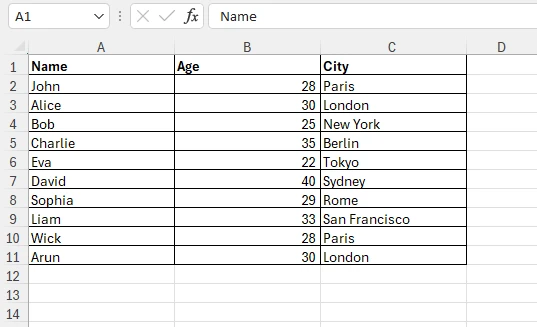

Copy the sample Excel file to your code folder. The file contains the below data.

Step 4: Read the Excel Document Using IronXL

Using IronXL, load the Excel document and read all the cells using the code below.

import ironxl
# Import Document class from python-docx to work with Word documents
from docx import Document

# Set the License Key for IronXL (replace 'your license' with your actual license key)
ironxl.License.LicenseKey = "your license"

# Load the Excel workbook and select the first worksheet
workbook = ironxl.WorkBook.Load("sample.xlsx")
sheet = workbook.WorkSheets[0]

# Read data from the Excel sheet
data = []

# Iterate through rows and columns in the Excel sheet
for row in range(0, len(sheet.Rows)):
    row_data = []
    for col in range(0, len(sheet.Columns)):
        cell_value = sheet.GetCellAt(row, col)
        print(cell_value)  # Print each cell value
        row_data.append(cell_value)
    data.append(row_data)

import ironxl
# Import Document class from python-docx to work with Word documents
from docx import Document

# Set the License Key for IronXL (replace 'your license' with your actual license key)
ironxl.License.LicenseKey = "your license"

# Load the Excel workbook and select the first worksheet
workbook = ironxl.WorkBook.Load("sample.xlsx")
sheet = workbook.WorkSheets[0]

# Read data from the Excel sheet
data = []

# Iterate through rows and columns in the Excel sheet
for row in range(0, len(sheet.Rows)):
    row_data = []
    for col in range(0, len(sheet.Columns)):
        cell_value = sheet.GetCellAt(row, col)
        print(cell_value)  # Print each cell value
        row_data.append(cell_value)
    data.append(row_data)

Step 5: Create a Word Document and Insert Excel Data Using python-docx

The Word document generation process involves creating a Word document and inserting data that was read from the Excel file.

# Create a new Word document
doc = Document()

# Add a title to the Word document
doc.add_heading('Excel Data Export Using Python Docx', 0)

# Create a table with headers (first row of Excel data)
table = doc.add_table(rows=1, cols=len(data[0]))
hdr_cells = table.rows[0].cells
# Populate header cells with data
for i, header in enumerate(data[0]):
    hdr_cells[i].text = str(header)

# Populate table with data from Excel
for row in data[1:]:
    row_cells = table.add_row().cells
    for i, cell in enumerate(row):
        row_cells[i].text = str(cell)

# Save the generated Word document
doc.save("sample.docx")

# Create a new Word document
doc = Document()

# Add a title to the Word document
doc.add_heading('Excel Data Export Using Python Docx', 0)

# Create a table with headers (first row of Excel data)
table = doc.add_table(rows=1, cols=len(data[0]))
hdr_cells = table.rows[0].cells
# Populate header cells with data
for i, header in enumerate(data[0]):
    hdr_cells[i].text = str(header)

# Populate table with data from Excel
for row in data[1:]:
    row_cells = table.add_row().cells
    for i, cell in enumerate(row):
        row_cells[i].text = str(cell)

# Save the generated Word document
doc.save("sample.docx")

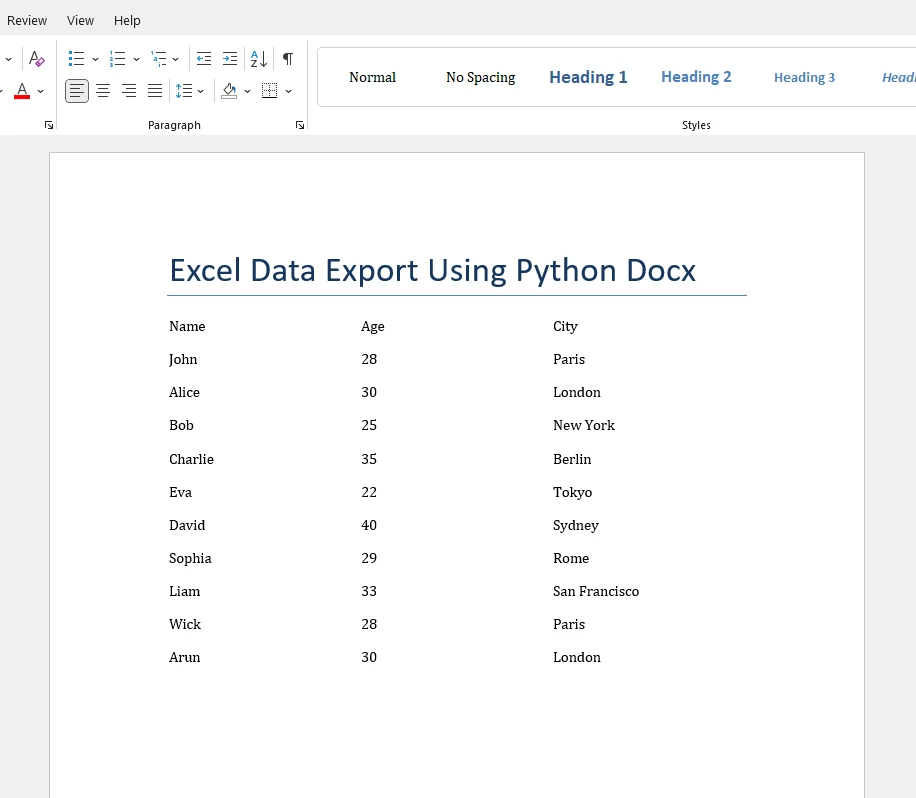

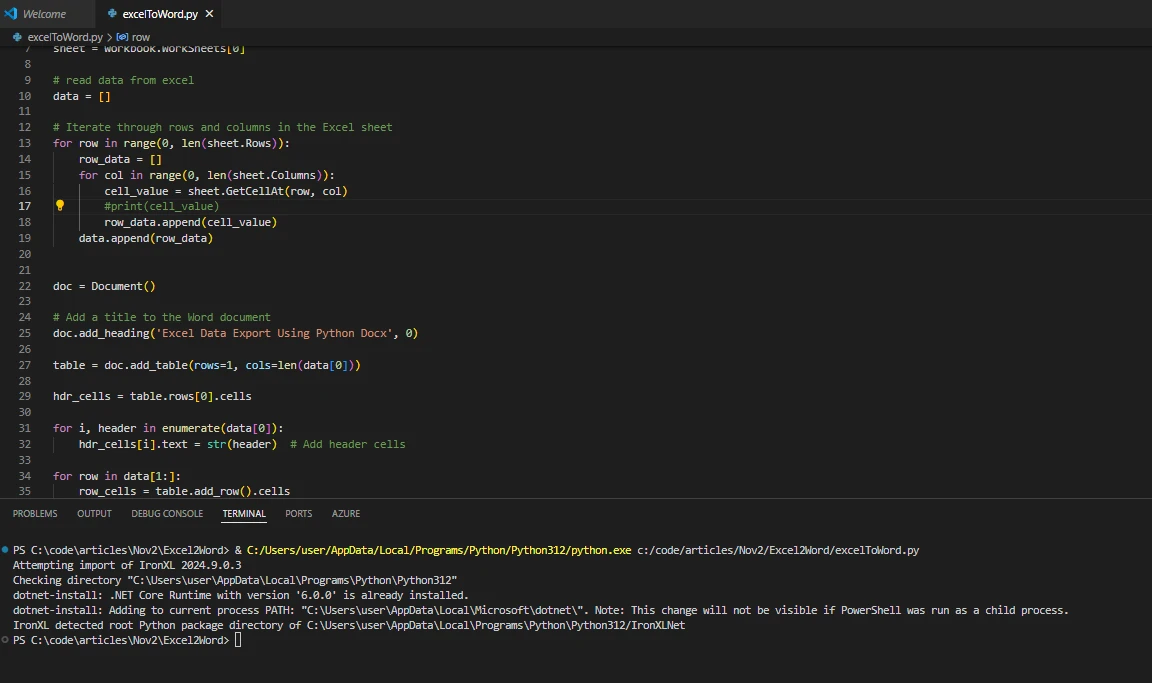

Complete Code for Generating Word Documents

# Import required libraries
import ironxl
from docx import Document

# Set the License Key for IronXL
ironxl.License.LicenseKey = "your license"

# Load the Excel workbook
workbook = ironxl.WorkBook.Load("sample.xlsx")
sheet = workbook.WorkSheets[0]

# Read data from the Excel sheet
data = []
# Iterate through rows and columns in the Excel sheet
for row in range(0, len(sheet.Rows)):
    row_data = []
    for col in range(0, len(sheet.Columns)):
        cell_value = sheet.GetCellAt(row, col)
        print(cell_value)  # Print each cell value
        row_data.append(cell_value)
    data.append(row_data)

# Document generation process
# Create a new Word document
doc = Document()
# Add a title to the Word document
doc.add_heading('Excel Data Export Using Python Docx', 0)

# Create a table in the Word document
table = doc.add_table(rows=1, cols=len(data[0]))
hdr_cells = table.rows[0].cells
for i, header in enumerate(data[0]):
    hdr_cells[i].text = str(header)  # Add header cells

for row in data[1:]:
    row_cells = table.add_row().cells
    for i, cell in enumerate(row):
        row_cells[i].text = str(cell)

# Save the Word document
doc.save("sample.docx")

# Import required libraries
import ironxl
from docx import Document

# Set the License Key for IronXL
ironxl.License.LicenseKey = "your license"

# Load the Excel workbook
workbook = ironxl.WorkBook.Load("sample.xlsx")
sheet = workbook.WorkSheets[0]

# Read data from the Excel sheet
data = []
# Iterate through rows and columns in the Excel sheet
for row in range(0, len(sheet.Rows)):
    row_data = []
    for col in range(0, len(sheet.Columns)):
        cell_value = sheet.GetCellAt(row, col)
        print(cell_value)  # Print each cell value
        row_data.append(cell_value)
    data.append(row_data)

# Document generation process
# Create a new Word document
doc = Document()
# Add a title to the Word document
doc.add_heading('Excel Data Export Using Python Docx', 0)

# Create a table in the Word document
table = doc.add_table(rows=1, cols=len(data[0]))
hdr_cells = table.rows[0].cells
for i, header in enumerate(data[0]):
    hdr_cells[i].text = str(header)  # Add header cells

for row in data[1:]:
    row_cells = table.add_row().cells
    for i, cell in enumerate(row):
        row_cells[i].text = str(cell)

# Save the Word document
doc.save("sample.docx")

IronXL License (Trial Available)

IronXL works on a valid license file attached to the code. Users can easily get a trial license from the license page.

To use the license, place the license key somewhere in the code as below before using the IronXL library.

ironxl.License.LicenseKey = "Your License Key"

ironxl.License.LicenseKey = "Your License Key"

Conclusion

The sample code demonstrates an effective way to read data from an Excel file using IronXL and then export that data into a Word document using python-docx. The process involves two main steps:

1. Extracting Data from Excel: The script loads an Excel file and extracts the data from its first worksheet. It iterates through the rows and columns to collect cell values into a list, which can easily be manipulated or saved.
2. Creating and Populating a Word Document: Using the python-docx library, the script creates a new Word document, adds a title, and formats the extracted Excel data into a table in the Word document. It automatically places the first row of Excel data as headers and the remaining rows as table data.

This approach allows for seamless data transfer from Excel to Word, which can be useful for tasks such as report generation, data exports, or document automation. The combination of IronXL for Excel handling and python-docx for Word document creation provides a powerful solution for working with these file formats in Python.
