如何在 C# OCR 中读取车牌

如何使用 IronOCR 在 C# 中读取车牌

This article was translated from English: Does it need improvement?
Translated
View the article in English

在管理大量车辆图像时,手动读取车牌既费时又容易出错。 使用 IronOCR 等工具实现此过程的自动化,可以提供更高效、更准确的解决方案。 IronOCR 的ReadLicensePlate方法可以通过编程方式从图像中提取车牌号码,从而节省大量时间并提高数据准确性。

在本指南中,我们将演示如何使用 IronOCR 进行车牌识别,通过示例和可自定义的配置,使整个过程无缝衔接。 通过利用这些方法,开发人员可以自动读取车牌号码,从而提高停车管理、收费或安全监控等任务的效率。

要使用此功能,您还必须安装IronOcr.Extension.AdvancedScan软件包。

快速入门:立即提取车牌号码

只需调用 IronOCR 的ReadLicensePlate方法,即可通过编程方式从任何图像中提取车牌文本。 它已准备就绪——只需加载图像,调用该方法,即可立即获取车牌号码和置信度。

Nuget Icon立即开始使用 NuGet 创建 PDF 文件:

  1. 使用 NuGet 包管理器安装 IronOCR

    PM > Install-Package IronOcr

  2. 复制并运行这段代码。

    OcrLicensePlateResult result = new IronTesseract().ReadLicensePlate(new OcrInput("plate.jpg"));
  3. 部署到您的生产环境中进行测试

    立即开始在您的项目中使用 IronOCR,免费试用!
    arrow pointer

读取车牌示例

要在 IronOCR 中读取车牌,我们需要执行以下步骤:

  • 我们使用ReadLicensePlate方法,该方法接受OcrInput作为输入参数。 与库的标准Read方法相比,该方法对车牌的识别更加精确。
  • (可选)我们可以配置 IronOCR,使其仅允许车牌中存在的特定字符作为白名单,以加快车牌号码的处理速度。

[{i:(

  • 目前该方法仅适用于英文、中文、日文、韩文和拉丁字母文字。
  • 在 .NET Framework 上使用高级扫描功能需要项目在 x64 架构上运行。 @@--bracket-close--@@@

车牌

车牌

代码

:path=/static-assets/ocr/content-code-examples/how-to/read-license-plate-read-license-plate.cs
using IronOcr;
using System;

var ocr = new IronTesseract();
ocr.Configuration.WhiteListCharacters = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789_";

using var inputLicensePlate = new OcrInput();
inputLicensePlate.LoadImage("plate.jpeg");

// Read license plate
OcrLicensePlateResult result = ocr.ReadLicensePlate(inputLicensePlate);

// Retrieve license plate number and confidence value
string output = $"{result.Text}\nResult Confidence: {result.Confidence}";

Console.WriteLine(output);
Imports Microsoft.VisualBasic
Imports IronOcr
Imports System

Private ocr = New IronTesseract()
ocr.Configuration.WhiteListCharacters = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789_"

Dim inputLicensePlate = New OcrInput()
inputLicensePlate.LoadImage("plate.jpeg")

' Read license plate
Dim result As OcrLicensePlateResult = ocr.ReadLicensePlate(inputLicensePlate)

' Retrieve license plate number and confidence value
Dim output As String = $"{result.Text}" & vbLf & "Result Confidence: {result.Confidence}"

Console.WriteLine(output)
$vbLabelText   $csharpLabel

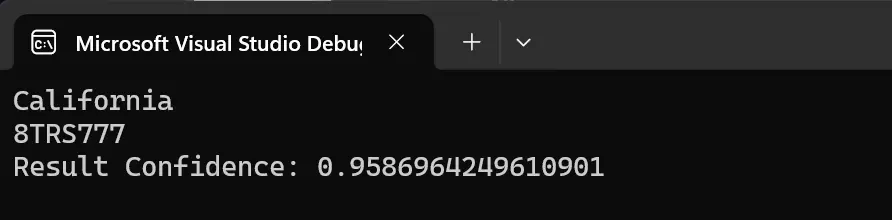

输出

车牌结果

该代码演示了如何将图像作为OcrInput导入,并将其与ReadLicensePlate方法一起使用,以从车牌中提取文本。 输出结果显示了与输入图像中显示的车牌匹配的提取文本,以及指示 OCR 准确性的置信度。

文本:从 OCR 输入中提取的文本。

置信度:一个"双精度"属性,表示每个字符平均值的统计准确性置信度,1 为最高,0 为最低。


从汽车图片中识别车牌

该方法对于包含车牌的汽车图像也同样有效。 这段代码与上面的代码完全相同,只是输入图像发生了变化。 您还可以提取车牌所在区域的像素坐标。

示例输入

车牌

:path=/static-assets/ocr/content-code-examples/how-to/read-license-plate-read-from-car.cs
using IronOcr;
using IronSoftware.Drawing;
using System;

var ocr = new IronTesseract();
using var inputLicensePlate = new OcrInput();
inputLicensePlate.LoadImage("car_license.jpg");

// Read license plate
OcrLicensePlateResult result = ocr.ReadLicensePlate(inputLicensePlate);

// Retrieve license plate coordinates
RectangleF rectangle = result.Licenseplate;

// Write license plate value and coordinates in a string
string output = $"License Plate Number:\n{result.Text}\n\n"
              + $"License Plate Area_\n"
              + $"Starting X: {rectangle.X}\n"
              + $"Starting Y: {rectangle.Y}\n"
              + $"Width: {rectangle.Width}\n"
              + $"Height: {rectangle.Height}";

Console.WriteLine(output);
Imports Microsoft.VisualBasic
Imports IronOcr
Imports IronSoftware.Drawing
Imports System

Private ocr = New IronTesseract()
Private inputLicensePlate = New OcrInput()
inputLicensePlate.LoadImage("car_license.jpg")

' Read license plate
Dim result As OcrLicensePlateResult = ocr.ReadLicensePlate(inputLicensePlate)

' Retrieve license plate coordinates
Dim rectangle As RectangleF = result.Licenseplate

' Write license plate value and coordinates in a string
Dim output As String = $"License Plate Number:" & vbLf & "{result.Text}" & vbLf & vbLf & $"License Plate Area_" & vbLf & $"Starting X: {rectangle.X}" & vbLf & $"Starting Y: {rectangle.Y}" & vbLf & $"Width: {rectangle.Width}" & vbLf & $"Height: {rectangle.Height}"

Console.WriteLine(output)
$vbLabelText   $csharpLabel

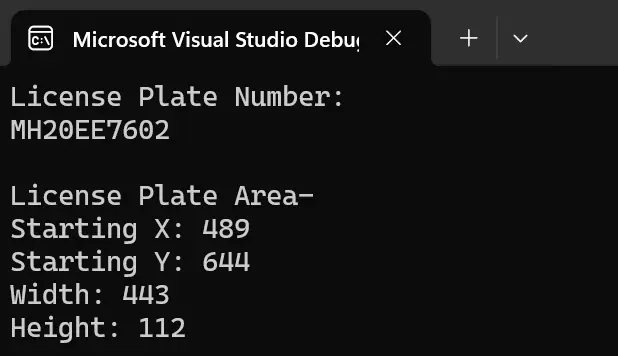

输出

车牌号搜索结果

该示例展示了如何将ReadLicensePlate方法应用于汽车图像。 该方法还会返回车牌在图像中所在的矩形坐标。

该方法经过优化,仅用于查找单个车牌,并且能够在图库图片中搜索车牌。

常见问题解答

如何在C#中自动化车牌识别?

您可以使用 IronOCR 的 ReadLicensePlate 方法在 C# 中自动识别车牌。此方法允许您从图像中提取车牌号码,与手动方法相比,提高了效率和准确性。

使用IronOCR读取车牌涉及哪些步骤?

要使用 IronOCR 读取车牌,请下载 C# 库,导入车牌图像作为 OcrInput,并使用 ReadLicensePlate 方法提取数据。然后,您可以访问 OcrLicensePlateResult 属性进行进一步处理。

IronOCR能处理带有可见车牌的汽车图像吗?

是的,IronOCR可以从汽车图像中读取车牌。它还可以提供车牌在图像中位置的像素坐标。

IronOCR支持哪些语言用于车牌阅读?

IronOCR 的 ReadLicensePlate 方法支持英文字母、中文、日文、韩文和拉丁字母脚本的车牌读取。

如何通过配置字符白名单增强车牌识别?

通过配置IronOCR以白名单形式列出车牌中常见的特定字符,可以提高识别性能并加快车牌号码的处理。

高级车牌扫描需要哪些附加包?

有关高级扫描功能,您需要安装 IronOcr.Extensions.AdvancedScan 包。

车牌识别中的置信度有什么意义?

车牌识别中的置信度表示OCR过程的统计准确性,范围为0到1,1表示最高置信度。

IronOCR如何针对.NET Framework优化车牌阅读?

在x64架构上运行时,IronOCR针对.NET Framework进行了车牌阅读优化,确保高效的处理和识别性能。
