Barcode Inventory Management Using Ironbarcode

Manual Errors

Manual inventory barcode systems often result in inaccuracies caused by human error, such as misrecording stock levels or misplacing inventory entries. These mistakes can cascade, leading to misaligned stock counts and operational delays.

Time-Consuming Processes

Traditional inventory methods require significant time investments, such as manually counting stock, barcode scanning, and updating logs. This time expenditure impacts operational efficiency and slows decision-making processes.

Lack of Real-Time Insights

Without automated systems to track inventory, inventory data is often outdated by the time it is analyzed. This lag creates blind spots, making it difficult to identify trends, restock appropriately, or manage shortages in real-time.

Step 1: Set up the .NET Environment and Install IronBarcode

Begin by creating a new .NET project in Visual Studio. To install IronBarcode, use the NuGet Package Manager:

1. Right-click on your project in Solution Explorer and select Manage NuGet Packages.
2. Navigate to the Browse tab, search for BarCode, and install the package published by Iron Software.

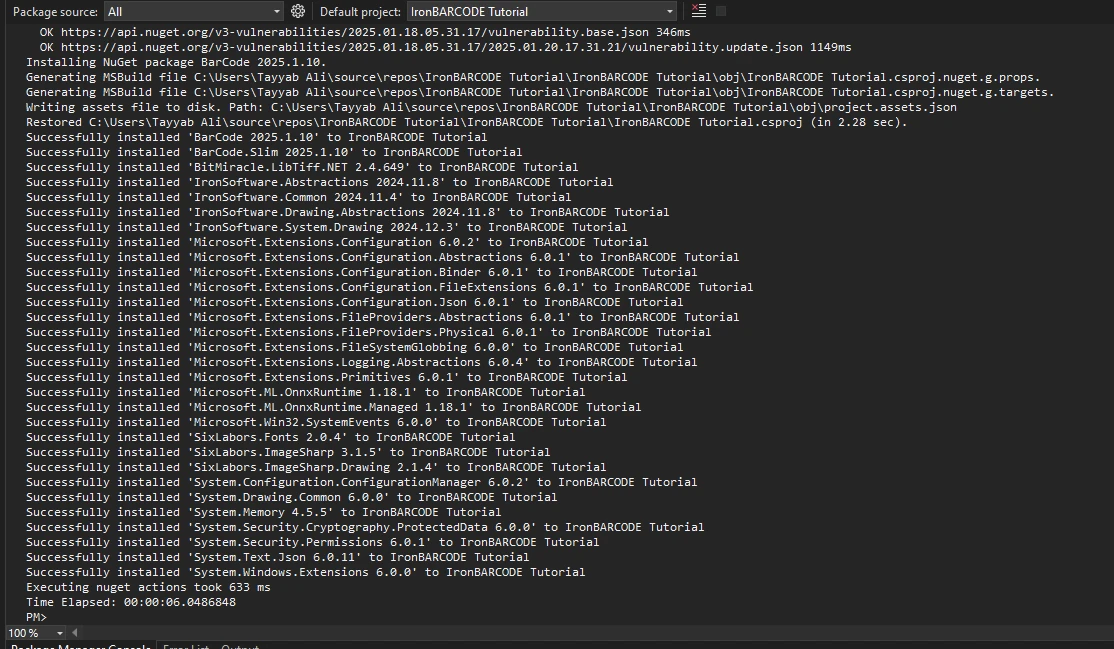

Alternatively, install via the Package Manager Console:

Install-Package BarCode

After installation, include the IronBarcode namespace in your code:

using IronBarCode;

using IronBarCode;

Imports IronBarCode

Step 2: Generate Barcodes for Products

For each product, generate a unique barcode using IronBarcode. Here's an example of creating a Code 128 barcode:

// Define the product SKU
string productSku = "SKU12345";

// Generate the barcode
GeneratedBarcode barcode = BarcodeWriter.CreateBarcode(productSku, BarcodeWriterEncoding.Code128);

// Save the barcode as a PNG image
barcode.SaveAsPng($"C:\\Barcodes\\{productSku}.png");

// Define the product SKU
string productSku = "SKU12345";

// Generate the barcode
GeneratedBarcode barcode = BarcodeWriter.CreateBarcode(productSku, BarcodeWriterEncoding.Code128);

// Save the barcode as a PNG image
barcode.SaveAsPng($"C:\\Barcodes\\{productSku}.png");

' Define the product SKU
Dim productSku As String = "SKU12345"

' Generate the barcode
Dim barcode As GeneratedBarcode = BarcodeWriter.CreateBarcode(productSku, BarcodeWriterEncoding.Code128)

' Save the barcode as a PNG image
barcode.SaveAsPng($"C:\Barcodes\{productSku}.png")

This code creates a barcode for the specified SKU and saves it as a PNG image.

Step 3: Integrate Barcode Scanning

To update inventory records using the barcode scanners:

// Path to the barcode labels image
string barcodeImagePath = "C:\\Barcodes\\SKU12345.png";

// Barcode scanning system
BarcodeResult result = BarcodeReader.Read(barcodeImagePath).FirstOrDefault();

if (result != null)
{
    string scannedSku = result.Text;
    // Update inventory levels based on the scanned SKU
    UpdateInventory(scannedSku);
}

// Path to the barcode labels image
string barcodeImagePath = "C:\\Barcodes\\SKU12345.png";

// Barcode scanning system
BarcodeResult result = BarcodeReader.Read(barcodeImagePath).FirstOrDefault();

if (result != null)
{
    string scannedSku = result.Text;
    // Update inventory levels based on the scanned SKU
    UpdateInventory(scannedSku);
}

' Path to the barcode labels image
Dim barcodeImagePath As String = "C:\Barcodes\SKU12345.png"

' Barcode scanning system
Dim result As BarcodeResult = BarcodeReader.Read(barcodeImagePath).FirstOrDefault()

If result IsNot Nothing Then
	Dim scannedSku As String = result.Text
	' Update inventory levels based on the scanned SKU
	UpdateInventory(scannedSku)
End If

This code reads the barcode from the image and retrieves the encoded SKU, which can then be used to update inventory records.

Step 4: Update Inventory Database

Establish a connection to your SQL database to reflect inventory changes:

using System.Data.SqlClient;

// Connection string to the database
string connectionString = "YourConnectionStringHere";

// Method to update inventory
void UpdateInventory(string sku)
{
    using (SqlConnection connection = new SqlConnection(connectionString))
    {
        connection.Open();
        string query = "UPDATE Inventory SET StockLevel = StockLevel - 1 WHERE SKU = @sku";
        using (SqlCommand command = new SqlCommand(query, connection))
        {
            command.Parameters.AddWithValue("@sku", sku);
            command.ExecuteNonQuery();
        }
    }
}

using System.Data.SqlClient;

// Connection string to the database
string connectionString = "YourConnectionStringHere";

// Method to update inventory
void UpdateInventory(string sku)
{
    using (SqlConnection connection = new SqlConnection(connectionString))
    {
        connection.Open();
        string query = "UPDATE Inventory SET StockLevel = StockLevel - 1 WHERE SKU = @sku";
        using (SqlCommand command = new SqlCommand(query, connection))
        {
            command.Parameters.AddWithValue("@sku", sku);
            command.ExecuteNonQuery();
        }
    }
}

Imports System.Data.SqlClient

' Connection string to the database
Private connectionString As String = "YourConnectionStringHere"

' Method to update inventory
Private Sub UpdateInventory(ByVal sku As String)
	Using connection As New SqlConnection(connectionString)
		connection.Open()
		Dim query As String = "UPDATE Inventory SET StockLevel = StockLevel - 1 WHERE SKU = @sku"
		Using command As New SqlCommand(query, connection)
			command.Parameters.AddWithValue("@sku", sku)
			command.ExecuteNonQuery()
		End Using
	End Using
End Sub

This function decrements the stock level of the scanned SKU in the inventory database.

Step 5: Real-Time Reporting and Insights

Develop dashboards to monitor stock levels or integrate with accounting software trends, using tools like ASP.NET for web-based reporting or Power BI for advanced analytics.

By following these steps, the retail business can transition from manual inventory tracking to an automated system, reducing errors and improving operational efficiency.
