API de escaneo de recibos (Tutorial para desarrolladores)

IronOCR

IronOCR is a versatile OCR library and API developed by Iron Software, offering developers a powerful solution for extracting text from various sources such as scanned documents, images, and PDFs. With its advanced OCR algorithms, computer vision, and machine learning models, IronOCR ensures high accuracy and reliability, even in challenging scenarios. The library supports multiple languages and font styles, making it suitable for global applications. By incorporating IronOCR with machine learning model capabilities into their applications, developers can easily automate data entry, text analysis, and other tasks, enhancing productivity and efficiency.

With IronOCR, developers can effortlessly fetch text from a variety of sources, including documents, photographs, screenshots, and even live camera feeds as JSON responses. By utilizing sophisticated algorithms and machine learning models, IronOCR analyzes the image data, recognizes individual characters, and converts them into machine-readable text. This extracted text can then be used for various purposes, such as data entry, information retrieval, text analysis, and automation of manual tasks.

Prerequisites

Before you can start working with IronOCR, there are a few prerequisites that need to be in place. These prerequisites include:

1. Ensure that you have a suitable development environment set up on your computer. This typically involves having an Integrated Development Environment (IDE) such as Visual Studio installed.
2. It's important to have a basic understanding of the C# programming language. This will enable you to comprehend and modify the code examples provided in the article effectively.
3. You'll need to have the IronOCR library installed in your project. This can be accomplished by using the NuGet Package Manager within Visual Studio or through the command line interface.

By ensuring that these prerequisites are met, you'll be ready to dive into the process of working with IronOCR.

Creating a New Visual Studio Project

To get started with IronOCR, the first step is to create a new Visual Studio project.

Open Visual Studio and go to Files, then hover on New, and click on Project.

New Project Image

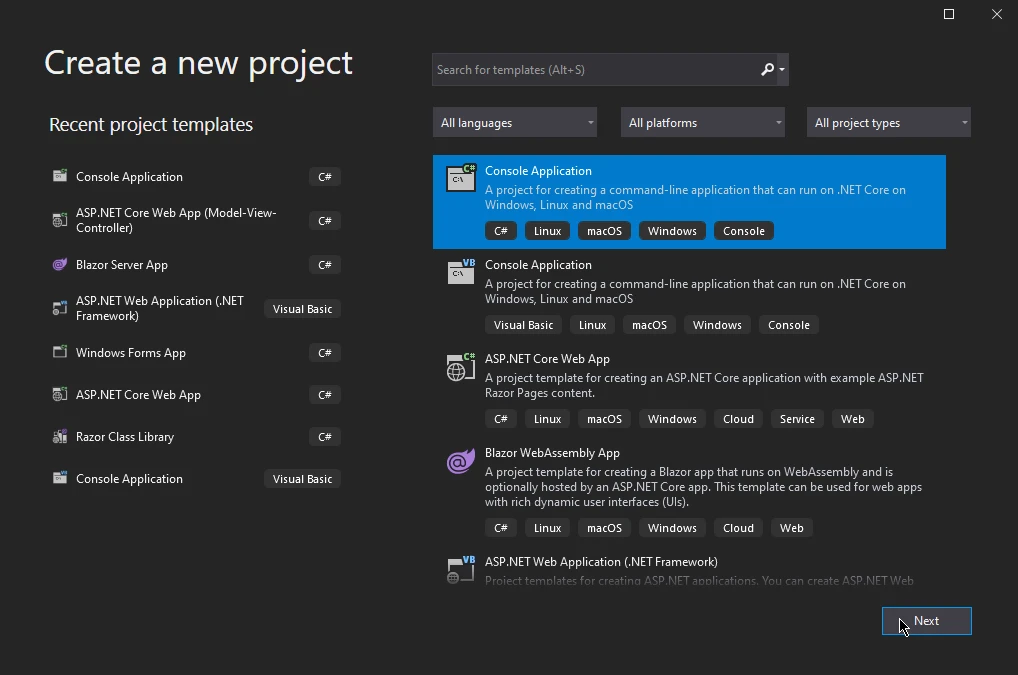

In the new window, select Console Application and click on Next.

Console Application

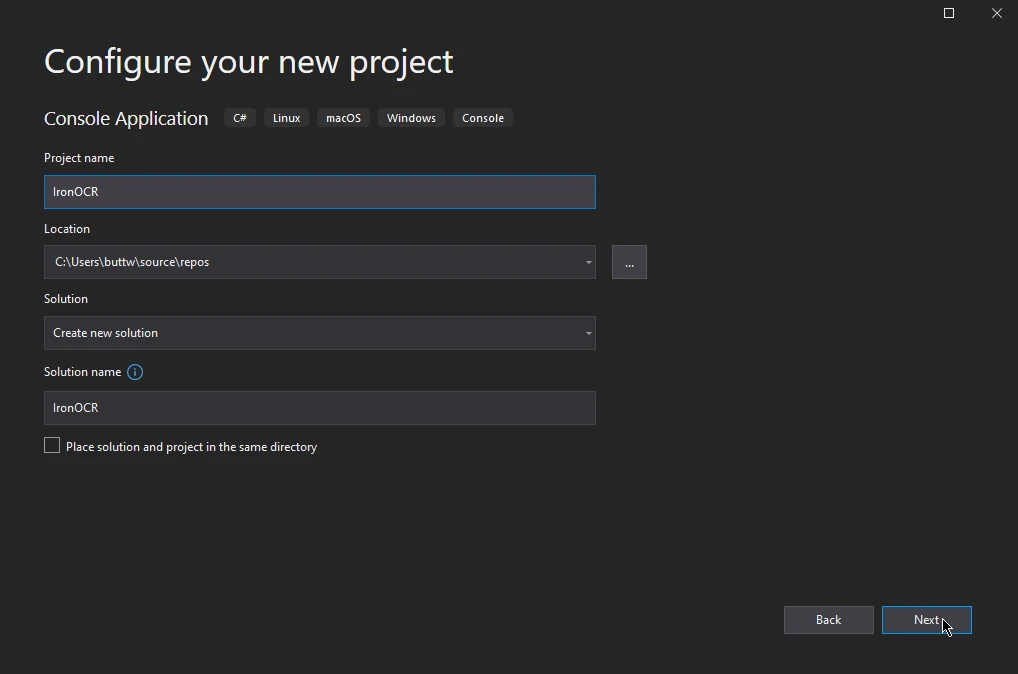

A new window will appear. Write the name of your new project, and location and click on Next.

Project Configuration

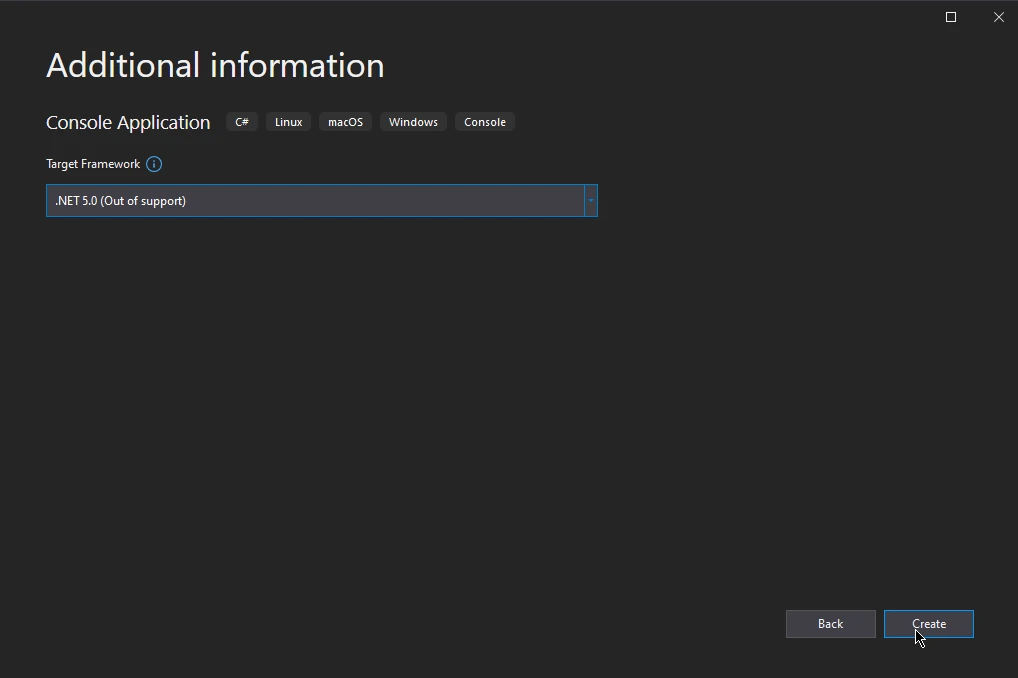

Finally, provide the Target Framework and click on Create.

Target Framework

Now your new Visual Studio project is created, let's install the IronOCR.

Installing IronOCR

There are several methods for downloading and installing the IronOCR library. However, here are the two simplest approaches.

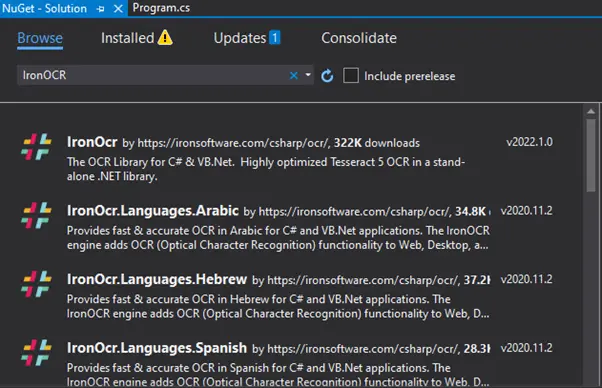

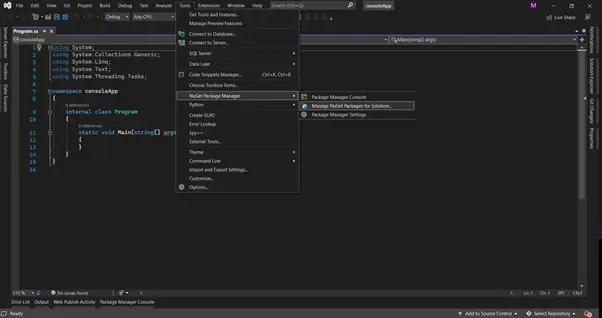

1. Using the Visual Studio NuGet Package Manager

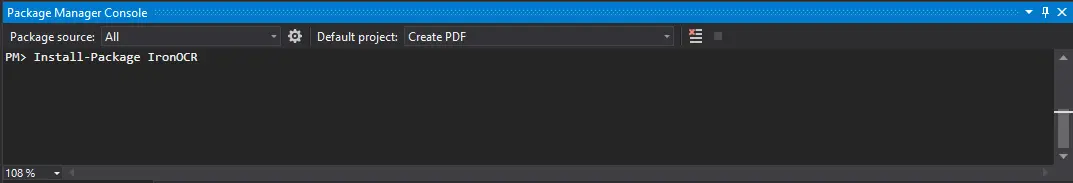

2. Using the Visual Studio Command Line

Data extraction using receipt OCR API

Extracting data from receipt images using IronOCR and saving them in structured data form is a lifesaver for most developers. Using IronOCR, you can achieve that with just a few lines of code. Using this you can extract line items, pricing, tax amount, total amount, and many more with different document types.

using IronOcr;
using System;
using System.Collections.Generic;
using System.Text.RegularExpressions;

class ReceiptScanner
{
    static void Main()
    {
        var ocr = new IronTesseract();
        // Load the image of the receipt
        using (var input = new OcrInput(@"r2.png"))
        {
            // Perform OCR on the input image
            var result = ocr.Read(input);

            // Regular expression patterns to extract relevant details from the OCR result
            var descriptionPattern = @"\w+\s+(.*?)\s+(\d+\.\d+)\s+Units\s+(\d+\.\d+)\s+Tax15%\s+\$(\d+\.\d+)";
            var pricePattern = @"\$\d+(\.\d{2})?";

            // Variables to store extracted data
            var descriptions = new List<string>();
            var unitPrices = new List<decimal>();
            var taxes = new List<decimal>();
            var amounts = new List<decimal>();

            var lines = result.Text.Split('\n');
            foreach (var line in lines)
            {
                // Match each line against the description pattern
                var descriptionMatch = Regex.Match(line, descriptionPattern);
                if (descriptionMatch.Success)
                {
                    descriptions.Add(descriptionMatch.Groups[1].Value.Trim());
                    unitPrices.Add(decimal.Parse(descriptionMatch.Groups[2].Value));

                    // Calculate tax and total amount for each item
                    var tax = unitPrices[unitPrices.Count - 1] * 0.15m;
                    taxes.Add(tax);
                    amounts.Add(unitPrices[unitPrices.Count - 1] + tax);
                }
            }

            // Output the extracted data
            for (int i = 0; i < descriptions.Count; i++)
            {
                Console.WriteLine($"Description: {descriptions[i]}");
                Console.WriteLine($"Quantity: 1.00 Units");
                Console.WriteLine($"Unit Price: ${unitPrices[i]:0.00}");
                Console.WriteLine($"Taxes: ${taxes[i]:0.00}");
                Console.WriteLine($"Amount: ${amounts[i]:0.00}");
                Console.WriteLine("-----------------------");
            }
        }
    }
}

using IronOcr;
using System;
using System.Collections.Generic;
using System.Text.RegularExpressions;

class ReceiptScanner
{
    static void Main()
    {
        var ocr = new IronTesseract();
        // Load the image of the receipt
        using (var input = new OcrInput(@"r2.png"))
        {
            // Perform OCR on the input image
            var result = ocr.Read(input);

            // Regular expression patterns to extract relevant details from the OCR result
            var descriptionPattern = @"\w+\s+(.*?)\s+(\d+\.\d+)\s+Units\s+(\d+\.\d+)\s+Tax15%\s+\$(\d+\.\d+)";
            var pricePattern = @"\$\d+(\.\d{2})?";

            // Variables to store extracted data
            var descriptions = new List<string>();
            var unitPrices = new List<decimal>();
            var taxes = new List<decimal>();
            var amounts = new List<decimal>();

            var lines = result.Text.Split('\n');
            foreach (var line in lines)
            {
                // Match each line against the description pattern
                var descriptionMatch = Regex.Match(line, descriptionPattern);
                if (descriptionMatch.Success)
                {
                    descriptions.Add(descriptionMatch.Groups[1].Value.Trim());
                    unitPrices.Add(decimal.Parse(descriptionMatch.Groups[2].Value));

                    // Calculate tax and total amount for each item
                    var tax = unitPrices[unitPrices.Count - 1] * 0.15m;
                    taxes.Add(tax);
                    amounts.Add(unitPrices[unitPrices.Count - 1] + tax);
                }
            }

            // Output the extracted data
            for (int i = 0; i < descriptions.Count; i++)
            {
                Console.WriteLine($"Description: {descriptions[i]}");
                Console.WriteLine($"Quantity: 1.00 Units");
                Console.WriteLine($"Unit Price: ${unitPrices[i]:0.00}");
                Console.WriteLine($"Taxes: ${taxes[i]:0.00}");
                Console.WriteLine($"Amount: ${amounts[i]:0.00}");
                Console.WriteLine("-----------------------");
            }
        }
    }
}

Imports Microsoft.VisualBasic
Imports IronOcr
Imports System
Imports System.Collections.Generic
Imports System.Text.RegularExpressions

Friend Class ReceiptScanner
	Shared Sub Main()
		Dim ocr = New IronTesseract()
		' Load the image of the receipt
		Using input = New OcrInput("r2.png")
			' Perform OCR on the input image
			Dim result = ocr.Read(input)

			' Regular expression patterns to extract relevant details from the OCR result
			Dim descriptionPattern = "\w+\s+(.*?)\s+(\d+\.\d+)\s+Units\s+(\d+\.\d+)\s+Tax15%\s+\$(\d+\.\d+)"
			Dim pricePattern = "\$\d+(\.\d{2})?"

			' Variables to store extracted data
			Dim descriptions = New List(Of String)()
			Dim unitPrices = New List(Of Decimal)()
			Dim taxes = New List(Of Decimal)()
			Dim amounts = New List(Of Decimal)()

			Dim lines = result.Text.Split(ControlChars.Lf)
			For Each line In lines
				' Match each line against the description pattern
				Dim descriptionMatch = Regex.Match(line, descriptionPattern)
				If descriptionMatch.Success Then
					descriptions.Add(descriptionMatch.Groups(1).Value.Trim())
					unitPrices.Add(Decimal.Parse(descriptionMatch.Groups(2).Value))

					' Calculate tax and total amount for each item
					Dim tax = unitPrices(unitPrices.Count - 1) * 0.15D
					taxes.Add(tax)
					amounts.Add(unitPrices(unitPrices.Count - 1) + tax)
				End If
			Next line

			' Output the extracted data
			For i As Integer = 0 To descriptions.Count - 1
				Console.WriteLine($"Description: {descriptions(i)}")
				Console.WriteLine($"Quantity: 1.00 Units")
				Console.WriteLine($"Unit Price: ${unitPrices(i):0.00}")
				Console.WriteLine($"Taxes: ${taxes(i):0.00}")
				Console.WriteLine($"Amount: ${amounts(i):0.00}")
				Console.WriteLine("-----------------------")
			Next i
		End Using
	End Sub
End Class

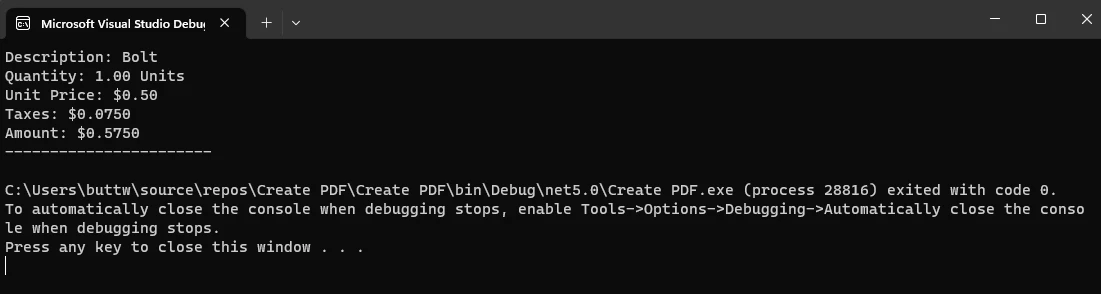

As you can see below, IronOCR can easily extract the required text from the receipt.

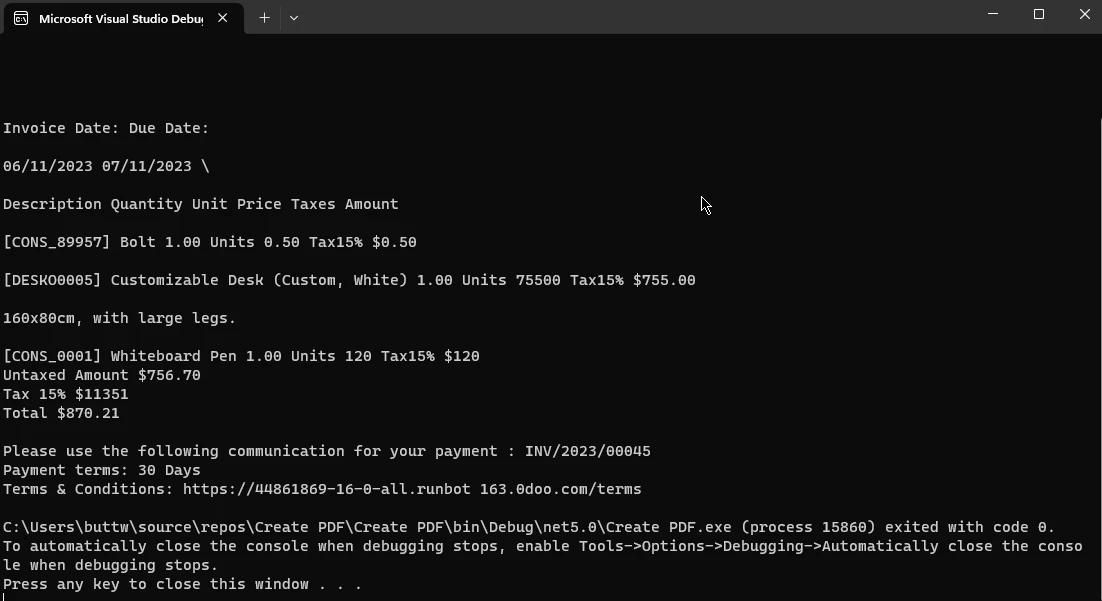

Output

using IronOcr;
using System;

class WholeReceiptExtractor
{
    static void Main()
    {
        var ocr = new IronTesseract();
        using (var input = new OcrInput(@"r3.png"))
        {
            // Perform OCR on the entire receipt and print text output to console
            var result = ocr.Read(input);
            Console.WriteLine(result.Text);
        }
    }
}

using IronOcr;
using System;

class WholeReceiptExtractor
{
    static void Main()
    {
        var ocr = new IronTesseract();
        using (var input = new OcrInput(@"r3.png"))
        {
            // Perform OCR on the entire receipt and print text output to console
            var result = ocr.Read(input);
            Console.WriteLine(result.Text);
        }
    }
}

Imports IronOcr
Imports System

Friend Class WholeReceiptExtractor
	Shared Sub Main()
		Dim ocr = New IronTesseract()
		Using input = New OcrInput("r3.png")
			' Perform OCR on the entire receipt and print text output to console
			Dim result = ocr.Read(input)
			Console.WriteLine(result.Text)
		End Using
	End Sub
End Class
