API de factura OCR (Tutorial para desarrolladores)

1. IronOCR

IronOCR, developed by Iron Software, is an OCR library offering a range of tools for developers. It uses machine learning and computer vision to extract text from scanned documents, images, and PDFs, enabling automated processing. Its APIs integrate into various languages and platforms, reducing manual data entry errors and improving efficiency. Extracted data can be analyzed and integrated into existing systems, aiding decision-making and productivity. Features like image preprocessing, barcode recognition, and file parsing increase its versatility. IronOCR empowers developers to incorporate text recognition into their applications.

2. Prerequisites

Before you can start working with IronOCR, there are a few prerequisites that need to be in place. These prerequisites include:

1. Ensure that you have a suitable development environment set up on your computer. This typically involves having an Integrated Development Environment (IDE) such as Visual Studio installed.
2. It's important to have a basic understanding of the C# programming language. This will enable you to comprehend and modify the code examples provided in the article effectively.
3. You'll need to have the IronOCR library installed in your project. This can be accomplished by using the NuGet Package Manager within Visual Studio or through the command line interface.

By ensuring that these prerequisites are met, you'll be ready to dive into the process of working with IronOCR.

3. Creating a New Visual Studio Project

To get started with IronOCR, the first step is to create a new Visual Studio project.

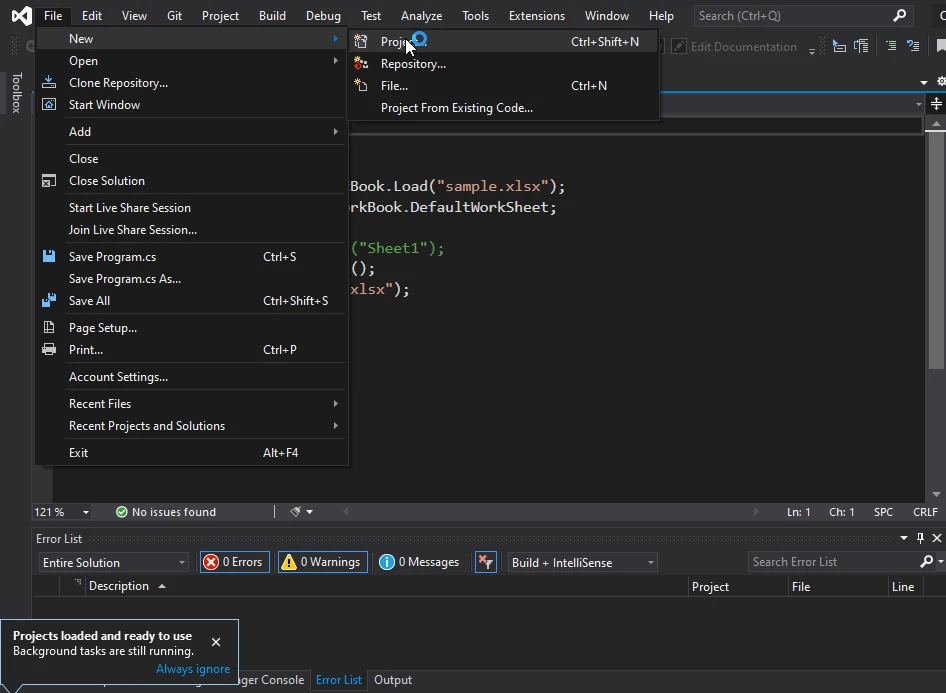

Open Visual Studio and go to Files, then hover on New, and click on Project.

New Project

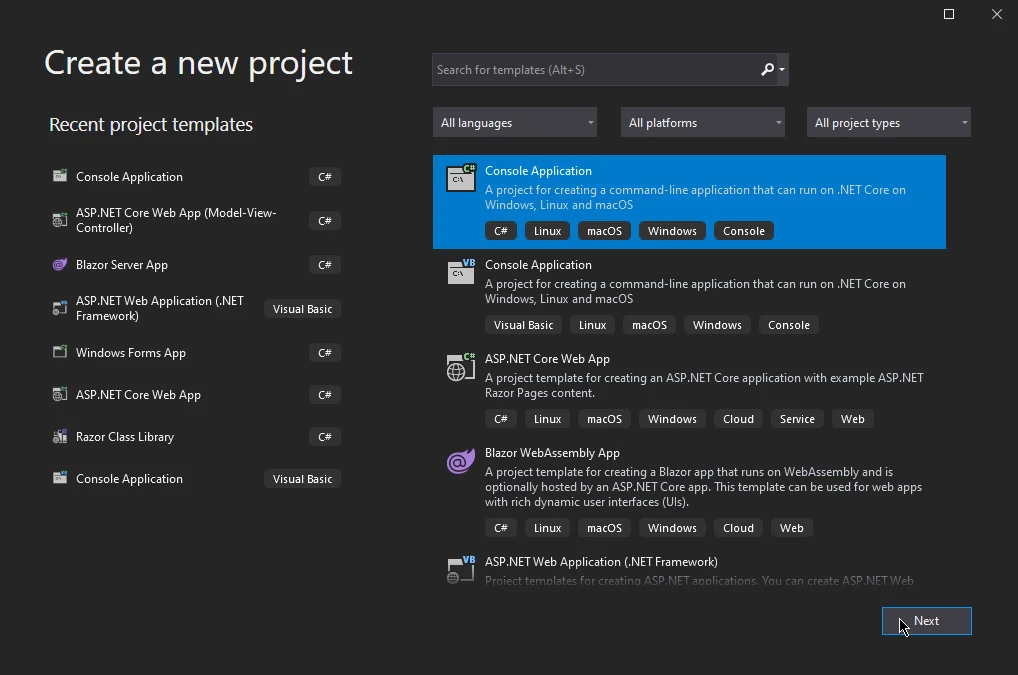

In the new window, select Console Application and click on Next.

Console Application

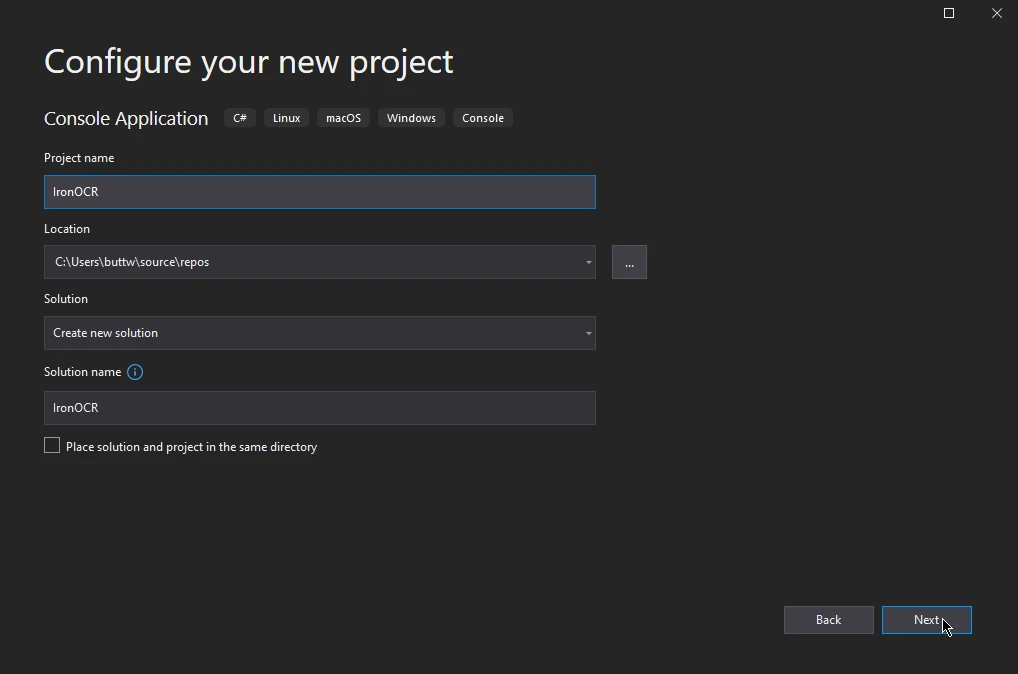

A new window will appear, write the name of your new project, and location and click on Next.

Project Configuration

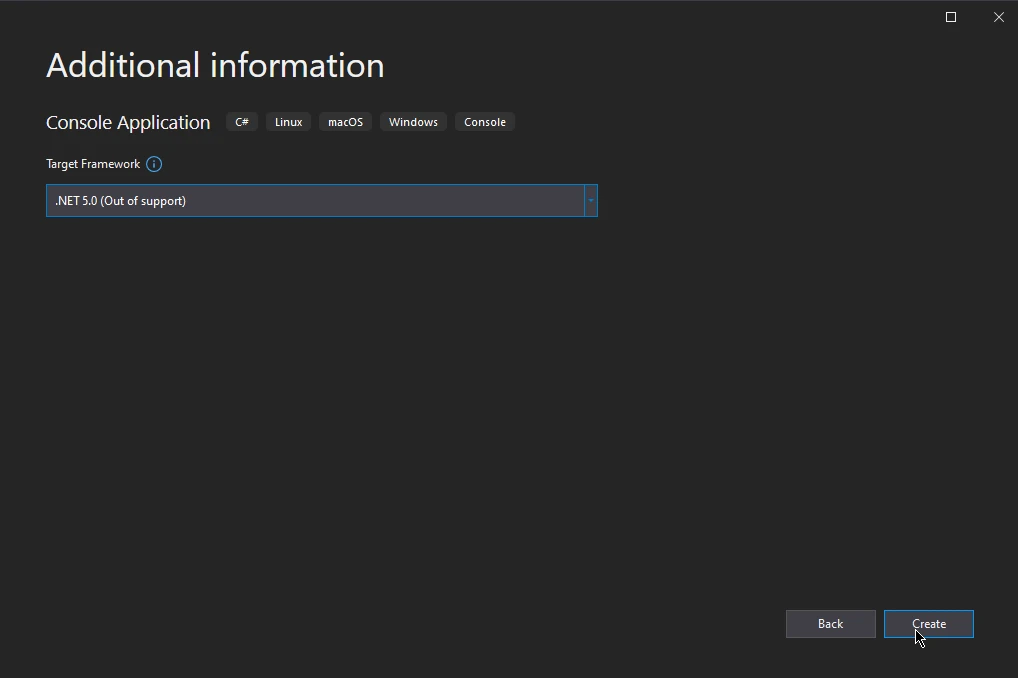

Finally, provide the Target framework and click on Create.

Target Framework

Now your new Visual Studio project is created. Let's install IronOCR.

4. Installing IronOCR

There are several methods for downloading and installing the IronOCR library. But here are the two simplest approaches.

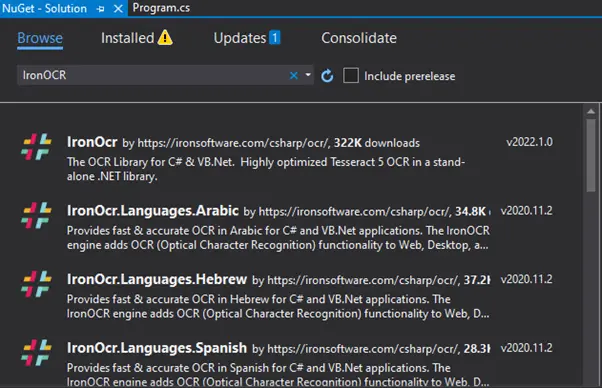

1. Using the Visual Studio NuGet Package Manager

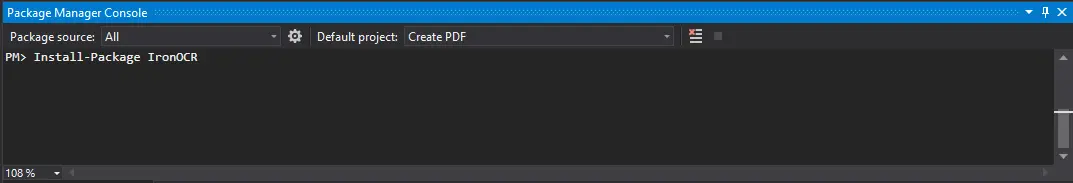

2. Using the Visual Studio Command Line

5. Extract data from Invoices using IronOCR

Using IronOCR, you can easily extract data from invoices with just a few lines of code and use that data extraction for further processes like data entry. This will replace manual data entry and many more.

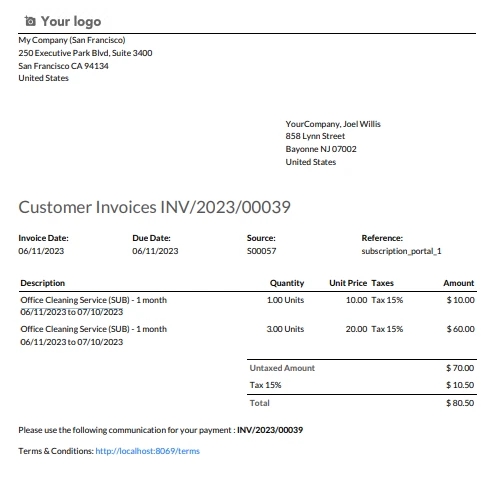

Here is an example invoice to extract text from.

The sample invoice

Now, let's write the code to extract all the data from this invoice.

using IronOcr;
using System;

// Initialize a new instance of the IronTesseract class
var ocr = new IronTesseract();

// Use the OcrInput object to load the image file
using (var input = new OcrInput(@"r2.png"))
{
    // Read the image using the Read method, which performs OCR
    var result = ocr.Read(input);

    // Output the extracted text to the console
    Console.WriteLine(result.Text);
}

using IronOcr;
using System;

// Initialize a new instance of the IronTesseract class
var ocr = new IronTesseract();

// Use the OcrInput object to load the image file
using (var input = new OcrInput(@"r2.png"))
{
    // Read the image using the Read method, which performs OCR
    var result = ocr.Read(input);

    // Output the extracted text to the console
    Console.WriteLine(result.Text);
}

Imports IronOcr
Imports System

' Initialize a new instance of the IronTesseract class
Private ocr = New IronTesseract()

' Use the OcrInput object to load the image file
Using input = New OcrInput("r2.png")
	' Read the image using the Read method, which performs OCR
	Dim result = ocr.Read(input)

	' Output the extracted text to the console
	Console.WriteLine(result.Text)
End Using

The above code gets input in the form of an image and then extracts data from that image using a Read method from the IronTesseract class.

Invoice Parser

using IronOcr;
using System;
using System.Text.RegularExpressions;

// Initialize a new instance of the IronTesseract class
var ocr = new IronTesseract();

// Use the OcrInput object to load the image file
using (var input = new OcrInput(@"r2.png"))
{
    // Perform OCR on the image
    var result = ocr.Read(input);

    // Define a regular expression pattern for the invoice number
    var linePattern = @"INV\/\d{4}\/\d{5}";

    // Match the pattern in the extracted text
    var lineMatch = Regex.Match(result.Text, linePattern);

    // Check if the pattern matches any part of the text
    if (lineMatch.Success)
    {
        // If a match is found, print the invoice number
        var lineValue = lineMatch.Value;

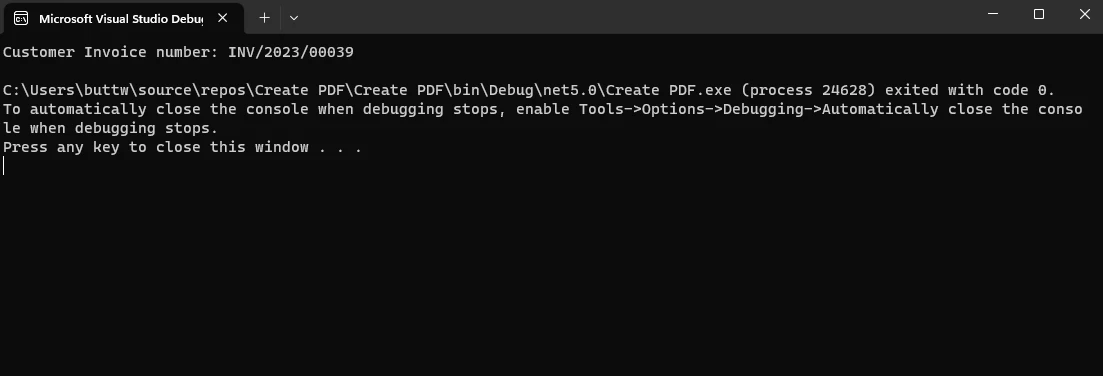

        Console.WriteLine("Customer Invoice number: " + lineValue);
    }
}

using IronOcr;
using System;
using System.Text.RegularExpressions;

// Initialize a new instance of the IronTesseract class
var ocr = new IronTesseract();

// Use the OcrInput object to load the image file
using (var input = new OcrInput(@"r2.png"))
{
    // Perform OCR on the image
    var result = ocr.Read(input);

    // Define a regular expression pattern for the invoice number
    var linePattern = @"INV\/\d{4}\/\d{5}";

    // Match the pattern in the extracted text
    var lineMatch = Regex.Match(result.Text, linePattern);

    // Check if the pattern matches any part of the text
    if (lineMatch.Success)
    {
        // If a match is found, print the invoice number
        var lineValue = lineMatch.Value;
        Console.WriteLine("Customer Invoice number: " + lineValue);
    }
}

Imports IronOcr
Imports System
Imports System.Text.RegularExpressions

' Initialize a new instance of the IronTesseract class
Private ocr = New IronTesseract()

' Use the OcrInput object to load the image file
Using input = New OcrInput("r2.png")
	' Perform OCR on the image
	Dim result = ocr.Read(input)

	' Define a regular expression pattern for the invoice number
	Dim linePattern = "INV\/\d{4}\/\d{5}"

	' Match the pattern in the extracted text
	Dim lineMatch = Regex.Match(result.Text, linePattern)

	' Check if the pattern matches any part of the text
	If lineMatch.Success Then
		' If a match is found, print the invoice number
		Dim lineValue = lineMatch.Value
		Console.WriteLine("Customer Invoice number: " & lineValue)
	End If
End Using

6. Conclusion

IronOCR's Invoice OCR API revolutionizes data extraction from invoices using machine learning and computer vision. This technology converts invoice text and numbers into a machine-readable format, simplifying data extraction for analysis, integration, and process improvement. It offers a robust solution for automating invoice processing, improving accuracy, and optimizing workflows like accounts payable. Automated data entry from scanned invoices is also made possible with this technology.

IronOCR offers high accuracy using the best results from Tesseract, without any additional settings. It supports multipage frame TIFF, PDF files, and all popular image formats. It is also possible to read barcode values from images.

Please visit the homepage website for more information on IronOCR. For more tutorials on invoice OCR, visit the following this details invoice OCR tutorial. To know about how to use computer vision to find text such as invoice fields, visit this computer vision how-to.
