Welcome to our guide on creating QR codes using C#! QR codes and .NET barcode DLL have become popular ways to share information quickly and efficiently. Whether you're developing an app, managing a website, or just looking for a neat way to share links, these codes can be incredibly useful. In this guide, we'll demonstrate how to generate QR codes efficiently using IronQR, ensuring you can generate QR codes tailored to your needs. This library makes it easy for anyone working with C# to create QR codes without getting into complex logic. We'll walk you through the steps, ensuring you have everything you need to get started. Whether you're looking to add QR code generator functionality to your app or just curious about how it's done, you're in the right place. Let's get started.

Install QR Code Generator Library in C#

立即開始在您的項目中使用 IronQR 並免費試用。

第一步:
green arrow pointer


Before we start, we need to install the IronQR NuGet Package.

Install-Package IronQR

IronQR: C# QR Library

IronQR is a C# QR Code library for integrating QR code functionality into .NET applications. IronQR supports a wide range of .NET versions and project types, including C#, VB.NET, F#, .NET Core, .NET Standard, .NET Framework, and more, ensuring compatibility with various development environments such as Windows, Linux, macOS, iOS, and Android.

IronQR distinguishes itself with its advanced features, including the ability to read QR codes and generate QR codes, support for multiple image formats, and customization options like resizing, styling, and adding logos to QR codes.

Some Key Features of IronQR

IronQR extends its functionality beyond basic QR code generation, offering several features designed to accommodate a wide range of QR code-related tasks. Let's go through these features and check their example codes which you will be able to integrate into any type of .NET application template like console app.

Read QR Codes

IronQR excels in decoding QR codes, providing users with a straightforward way to access the information embedded within QR codes. You can quickly and accurately extract data from QR codes, ranging from simple URLs to complex embedded information.

:path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-1.cs
using IronQr;
using IronSoftware.Drawing;
using System;
using System.Collections.Generic;

IronQr.License.LicenseKey = "License-Key";

// Load the image file that contains the QR Code
var inputImage = AnyBitmap.FromFile("QRCode.png");

// Prepare the image for QR code detection
QrImageInput qrInput = new QrImageInput(inputImage);

// Initialize the QR Code reader
QrReader qrReader = new QrReader();

// Execute QR Code reading on the provided image
IEnumerable<QrResult> qrResults = qrReader.Read(qrInput);

// Assuming you have the QR results in qrResults as before
foreach (var result in qrResults)
{
    Console.WriteLine(result.Value); // Print the QR code content to the console
}
Imports IronQr
Imports IronSoftware.Drawing
Imports System
Imports System.Collections.Generic

IronQr.License.LicenseKey = "License-Key"

' Load the image file that contains the QR Code
Dim inputImage = AnyBitmap.FromFile("QRCode.png")

' Prepare the image for QR code detection
Dim qrInput As New QrImageInput(inputImage)

' Initialize the QR Code reader
Dim qrReader As New QrReader()

' Execute QR Code reading on the provided image
Dim qrResults As IEnumerable(Of QrResult) = qrReader.Read(qrInput)

' Assuming you have the QR results in qrResults as before
For Each result In qrResults
	Console.WriteLine(result.Value) ' Print the QR code content to the console
Next result
$vbLabelText   $csharpLabel

The process starts by incorporating the necessary namespaces: IronQr and IronSoftware.Drawing, with a specific mention of Color from the IronSoftware.Drawing namespace to handle image manipulations.

Before diving into the QR code reading process, it's essential to activate the software with your license key by assigning it to IronQr.License.LicenseKey. The code then proceeds to load the QR code image from a file using AnyBitmap.FromFile("QRCode.png").

With the image loaded, the next step involves preparing it for QR code detection. This preparation is done by creating a QrImageInput object, which serves as a container for the image.

The core of this feature lies in the QrReader class, which is instantiated and used to perform the QR code reading operation. The reader analyzes the prepared image, searching for any QR codes it contains. The result of this operation is a collection of QrResult objects, each representing a detected QR code within the image.

To access and utilize the data encoded in the QR codes, the code iterates over the collection of results using a foreach loop. Each QrResult object contains properties such as the QR code's value, which can be accessed and displayed.

Custom QR Read Mode Options

IronQR provides different modes for reading QR codes, making it versatile for various needs.

  • Mixed Scan Mode: Balances speed and accuracy, useful for QR codes that are not clear or partly hidden.
  • Machine Learning (ML) Scan Mode: Uses advanced technology to read damaged or hard-to-read QR codes, ideal for difficult-to-detect scenarios.
  • Basic Scan Mode: The simplest and fastest way, for clear and straightforward QR codes.
:path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-2.cs
using IronQr;
using IronQr.Enum;
using IronSoftware.Drawing;
using System.Collections.Generic;

IronQr.License.LicenseKey = "License-Key";

// Load the image file that contains the QR Code
var inputImage = AnyBitmap.FromFile("QRCode.png");

QrImageInput mixedScanInput = new QrImageInput(inputImage, QrScanMode.OnlyDetectionModel);
IEnumerable<QrResult> mixedScanResults = new QrReader().Read(mixedScanInput);

QrImageInput mlScanInput = new QrImageInput(inputImage, QrScanMode.OnlyDetectionModel);
IEnumerable<QrResult> mlScanResults = new QrReader().Read(mlScanInput);

QrImageInput basicScanInput = new QrImageInput(inputImage, QrScanMode.OnlyBasicScan);
IEnumerable<QrResult> basicScanResults = new QrReader().Read(basicScanInput);
Imports IronQr
Imports IronQr.Enum
Imports IronSoftware.Drawing
Imports System.Collections.Generic

IronQr.License.LicenseKey = "License-Key"

' Load the image file that contains the QR Code
Dim inputImage = AnyBitmap.FromFile("QRCode.png")

Dim mixedScanInput As New QrImageInput(inputImage, QrScanMode.OnlyDetectionModel)
Dim mixedScanResults As IEnumerable(Of QrResult) = (New QrReader()).Read(mixedScanInput)

Dim mlScanInput As New QrImageInput(inputImage, QrScanMode.OnlyDetectionModel)
Dim mlScanResults As IEnumerable(Of QrResult) = (New QrReader()).Read(mlScanInput)

Dim basicScanInput As New QrImageInput(inputImage, QrScanMode.OnlyBasicScan)
Dim basicScanResults As IEnumerable(Of QrResult) = (New QrReader()).Read(basicScanInput)
$vbLabelText   $csharpLabel

Read Advanced QR Codes

IronQR's advanced QR code reading capabilities provide a comprehensive approach to QR code scanning and decoding. This feature set goes beyond basic reading, offering a deeper level of interaction and data extraction.

:path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-3.cs
using IronQr;
using IronSoftware.Drawing;
using System;
using System.Collections.Generic;

IronQr.License.LicenseKey = "License-Key";

var imageToScan = AnyBitmap.FromFile("QRCode.png");

QrImageInput qrInput = new QrImageInput(imageToScan);

QrReader qrScanner = new QrReader();

IEnumerable<QrResult> scanResults = qrScanner.Read(qrInput);

foreach (QrResult qrResult in scanResults)
{

    Console.WriteLine(qrResult.Value);

    Console.WriteLine(qrResult.Url);

    foreach (IronSoftware.Drawing.PointF coordinate in qrResult.Points)
    {
        Console.WriteLine($"{coordinate.X}, {coordinate.Y}");
    }
}
Imports IronQr
Imports IronSoftware.Drawing
Imports System
Imports System.Collections.Generic

IronQr.License.LicenseKey = "License-Key"

Dim imageToScan = AnyBitmap.FromFile("QRCode.png")

Dim qrInput As New QrImageInput(imageToScan)

Dim qrScanner As New QrReader()

Dim scanResults As IEnumerable(Of QrResult) = qrScanner.Read(qrInput)

For Each qrResult As QrResult In scanResults

	Console.WriteLine(qrResult.Value)

	Console.WriteLine(qrResult.Url)

	For Each coordinate As IronSoftware.Drawing.PointF In qrResult.Points
		Console.WriteLine($"{coordinate.X}, {coordinate.Y}")
	Next coordinate
Next qrResult
$vbLabelText   $csharpLabel

To create a QR Code generator using the IronQR library in a C# application, follow these steps carefully. This guide will take you through setting up a Windows form application, installing the IronQR library, writing the code to generate a QR code, and understanding the output.

Step 1: Create a Windows Application in Visual Studio

  1. Start by launching Visual Studio on your computer.
  2. Click on the "Create a New Project" button.

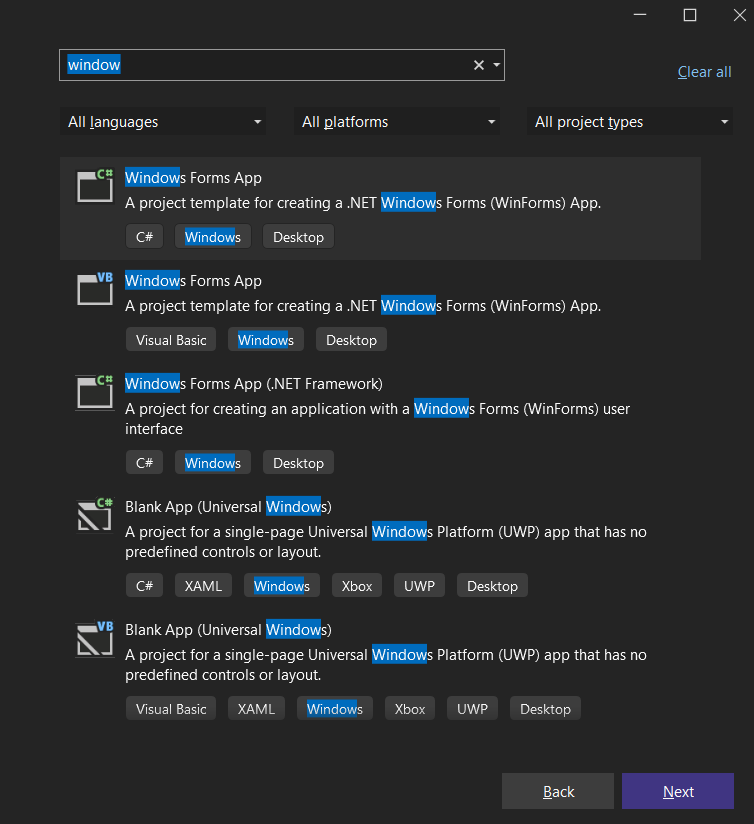

  3. Select Windows Forms App as the project type. Make sure to choose C# as the language.

    Windows Forms App

  4. Enter a name for your project and select the location to save it. Then on the next screen, select .NET framework. Then click Create.

    Project Configuration

Step 2: Install IronQR Library

Now it's time to install the IronQR library in the project. You can install the IronQR library through different methods.

Install using NuGet Package Manager

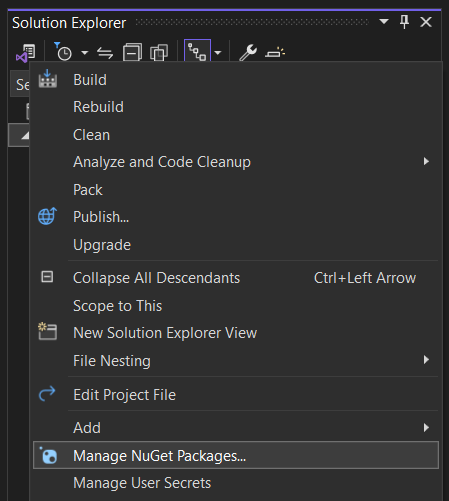

  1. Right-click on your project in the Solution Explorer and select Manage NuGet Packages.
  2. Type IronQR in the search box and press Enter. Manage NuGet Packages

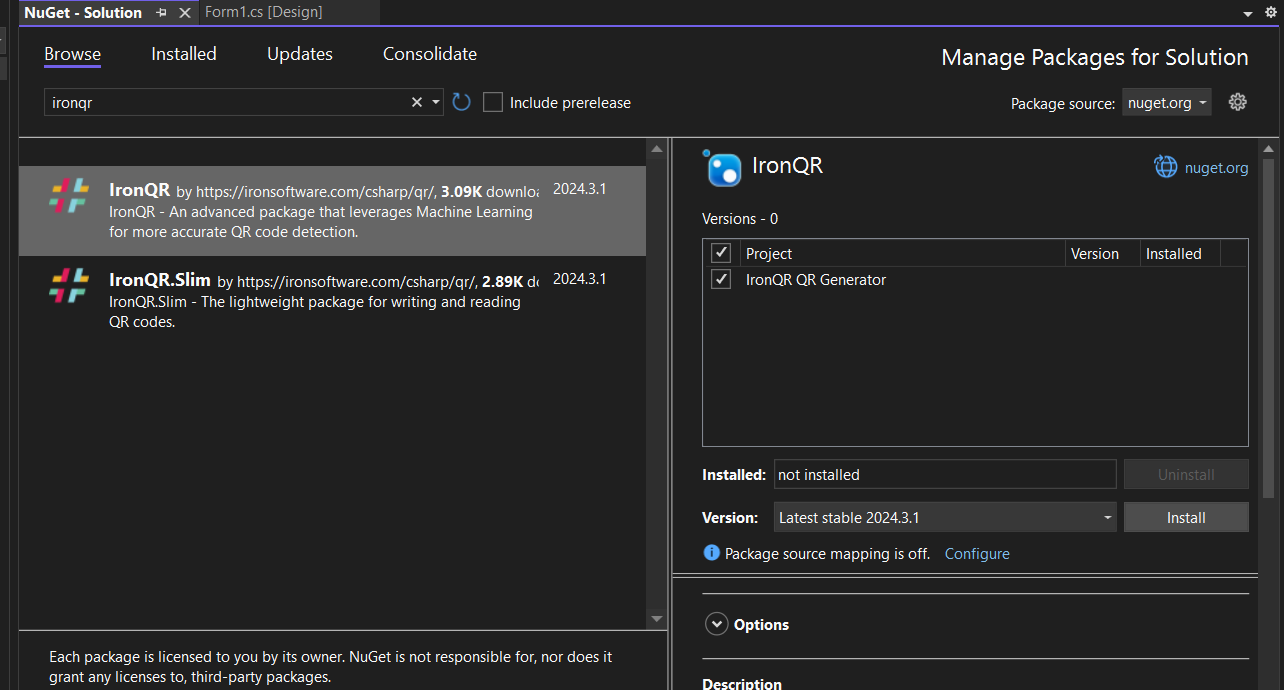

  3. Find IronQR in the list and click Install next to it.

    Install IronQR

Install using NuGet Package Manager Console

  • Go to Tools > NuGet Package Manager > Package Manager Console.
    NuGet Package Manager
  • Type Install-Package IronQR and press Enter.
  • Install IronQR

    Step 3: Design Frontend

    QR Code Generator

    3.1 Title Header

    Generate a QR Code

    Upon launching the QR Code Generator application, users are immediately presented with a striking header titled "QR Generator IronQR," set in a bold and authoritative font.

    3.2 Input Section

    Text Input for QR Code

    Users can enter the data they wish to encode into their QR code.

    Logo Selection

    Select Logo

    The "Select Logo" area allows for an additional layer of customization. Users can upload a logo that will be embedded in the QR code.

    Color Configuration

    Background Color

    Buttons for color selection allow users to customize their QR code's palette.

    3.3 Styling Parameters

    Styling

    Dimension Settings

    Allows users to specify the overall size of the QR code.

    Margin Settings

    Allows users to specify the white space surrounding the QR code.

    3.4 Output Preview

    Provides a real-time preview of the generated QR code.

    QR Output

    3.5 Action Buttons

    Generate QR

    Triggers the QR code creation process.

    QR Code in C#

    Save QR Code

    Opens a save dialog for saving the QR code.

    Save

    Reset Form

    Clears all previous inputs and selections.

    Reset

    Step 4: Write Backend Logic

    4.1 Setup and Initialization

    Includes necessary namespaces: IronQr and IronSoftware.Drawing.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-4.cs
    using IronQr;
    using IronSoftware.Drawing;
    using Color = IronSoftware.Drawing.Color;


    Imports IronQr
    Imports IronSoftware.Drawing
    Imports Color = IronSoftware.Drawing.Color
    $vbLabelText   $csharpLabel
    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-5.cs
    public QR_Generator()
    {
        InitializeComponent();
        SetLicenseKey();
        EnsureDirectoryExists(qrCodesDirectory);
    }
    'INSTANT VB WARNING: The following constructor is declared outside of its associated class:
    'ORIGINAL LINE: public QR_Generator()
    Public Sub New()
    	InitializeComponent()
    	SetLicenseKey()
    	EnsureDirectoryExists(qrCodesDirectory)
    End Sub
    $vbLabelText   $csharpLabel

    4.2 License Key Configuration

    Applies a valid license key for the IronQR library:

    private static void SetLicenseKey() {
        IronQr.License.LicenseKey = "YOUR_LICENSE_KEY";
    }
    private static void SetLicenseKey() {
        IronQr.License.LicenseKey = "YOUR_LICENSE_KEY";
    }
    Private Shared Sub SetLicenseKey()
    	IronQr.License.LicenseKey = "YOUR_LICENSE_KEY"
    End Sub
    $vbLabelText   $csharpLabel

    Replace "YOUR_LICENSE_KEY" with your actual license key.

    4.3 Directory Management

    Checks or creates necessary directories.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-7.cs
    private static void EnsureDirectoryExists(string path)
    {
        if (!System.IO.Directory.Exists(path))
        {
            System.IO.Directory.CreateDirectory(path);
        }
    }
    Private Shared Sub EnsureDirectoryExists(ByVal path As String)
    	If Not System.IO.Directory.Exists(path) Then
    		System.IO.Directory.CreateDirectory(path)
    	End If
    End Sub
    $vbLabelText   $csharpLabel

    The path to the QR codes directory is defined in the QR_Generator class constructor as qrCodesDirectory, which combines the application's startup path with a "QR Codes" folder name:

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-8.cs
    string qrCodesDirectory = System.IO.Path.Combine(Application.StartupPath, "QR Codes");
    Dim qrCodesDirectory As String = System.IO.Path.Combine(Application.StartupPath, "QR Codes")
    $vbLabelText   $csharpLabel

    4.4 Color Selection

    Provides color dialog components and utility functions.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-9.cs
    private string ColorToHex(System.Drawing.Color color)
    {
        return $"#{color.R:X2}{color.G:X2}{color.B:X2}";
    }
    Private Function ColorToHex(ByVal color As System.Drawing.Color) As String
    	Return $"#{color.R:X2}{color.G:X2}{color.B:X2}"
    End Function
    $vbLabelText   $csharpLabel

    The UpdateColor method takes the selected color and converts it to the IronSoftware.Drawing.Color format using the hexadecimal string, and updates either the QR code's foreground or background color depending on the selection. It also updates the UI to reflect the new color choice:

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-10.cs
    private void UpdateColor(ref Color targetColor, Control display, bool isBackground)
    {
        if (select_color.ShowDialog() == DialogResult.OK)
        {
            var hexColor = ColorToHex(select_color.Color);
            targetColor = new Color(hexColor);
            display.BackColor = select_color.Color;
        }
    }
    Private Sub UpdateColor(ByRef targetColor As Color, ByVal display As Control, ByVal isBackground As Boolean)
    	If select_color.ShowDialog() = DialogResult.OK Then
    		Dim hexColor = ColorToHex(select_color.Color)
    		targetColor = New Color(hexColor)
    		display.BackColor = select_color.Color
    	End If
    End Sub
    $vbLabelText   $csharpLabel

    Allows the user to select a logo.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-11.cs
    private void btn_logo_Click(object sender, EventArgs e)
    {
        if (select_logo.ShowDialog() == DialogResult.OK)
        {
            try
            {
                logoBmp = new AnyBitmap(select_logo.FileName);
                selected_logo.Image = Image.FromFile(select_logo.FileName);
            }
            catch (Exception ex)
            {
                ShowError("An error occurred while loading the logo", ex.Message);
            }
        }
    }
    Private Sub btn_logo_Click(ByVal sender As Object, ByVal e As EventArgs)
    	If select_logo.ShowDialog() = DialogResult.OK Then
    		Try
    			logoBmp = New AnyBitmap(select_logo.FileName)
    			selected_logo.Image = Image.FromFile(select_logo.FileName)
    		Catch ex As Exception
    			ShowError("An error occurred while loading the logo", ex.Message)
    		End Try
    	End If
    End Sub
    $vbLabelText   $csharpLabel

    4.6 QR Code Generation

    Contains logic for generating QR codes based on user inputs.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-12.cs
    private void btn_generate_Click(object sender, EventArgs e)
    {
        GenerateQRCode();
    }
    Private Sub btn_generate_Click(ByVal sender As Object, ByVal e As EventArgs)
    	GenerateQRCode()
    End Sub
    $vbLabelText   $csharpLabel

    The QrOptions object defines the error correction level, enhancing the QR code's resilience to damage or obscuration. The CreateStyleOptions method generates a QrStyleOptions object, which includes the user's custom settings like colors, dimensions, and the logo. Here's the method in detail:

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-14.cs
    private QrStyleOptions CreateStyleOptions()
    {
        return new QrStyleOptions
        {
            BackgroundColor = bgColor,
            Color = color,
            Dimensions = txt_dimension.Value > 0 ? Convert.ToInt32(txt_dimension.Value) : throw new ArgumentException("Please select valid dimensions!"),
            Margins = Convert.ToInt32(txt_margin.Value),
            Logo = logoBmp != null ? new QrLogo { Bitmap = logoBmp, Width = 50, Height = 50, CornerRadius = 5 } : null
        };
    }
    Private Function CreateStyleOptions() As QrStyleOptions
    'INSTANT VB TODO TASK: Throw expressions are not converted by Instant VB:
    'ORIGINAL LINE: return new QrStyleOptions { BackgroundColor = bgColor, Color = color, Dimensions = txt_dimension.Value > 0 ? Convert.ToInt32(txt_dimension.Value) : throw new ArgumentException("Please select valid dimensions!"), Margins = Convert.ToInt32(txt_margin.Value), Logo = logoBmp != null ? new QrLogo { Bitmap = logoBmp, Width = 50, Height = 50, CornerRadius = 5 } : null };
    	Return New QrStyleOptions With {
    		.BackgroundColor = bgColor,
    		.Color = color,
    		.Dimensions = If(txt_dimension.Value > 0, Convert.ToInt32(txt_dimension.Value), throw New ArgumentException("Please select valid dimensions!")),
    		.Margins = Convert.ToInt32(txt_margin.Value),
    		.Logo = If(logoBmp IsNot Nothing, New QrLogo With {
    			.Bitmap = logoBmp,
    			.Width = 50,
    			.Height = 50,
    			.CornerRadius = 5
    		}, Nothing)
    	}
    End Function
    $vbLabelText   $csharpLabel

    4.7 Saving the QR Code

    Handles saving the generated QR code.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-15.cs
    private void btn_save_Click(object sender, EventArgs e)
    {
        SaveQRCode();
    }

    private void SaveQRCode()
    {
        if (pictureBox.Image == null)
        {
            MessageBox.Show("There is no QR code to save.", "Error");
            return;
        }

        saveFileDialog.Filter = "PNG Files|*.png|JPEG Files|*.jpg";
        saveFileDialog.Title = "Save QR Code";
        saveFileDialog.FileName = "QRCode";

        if (saveFileDialog.ShowDialog() == DialogResult.OK)
        {
            try
            {
                pictureBox.Image.Save(saveFileDialog.FileName, DetermineImageFormat(saveFileDialog.FileName));
                MessageBox.Show("QR Code has been saved!", "Success");
            }
            catch (Exception ex)
            {
                ShowError("An error occurred while saving the QR code", ex.Message);
            }
        }
    }
    Private Sub btn_save_Click(ByVal sender As Object, ByVal e As EventArgs)
    	SaveQRCode()
    End Sub

    Private Sub SaveQRCode()
    	If pictureBox.Image Is Nothing Then
    		MessageBox.Show("There is no QR code to save.", "Error")
    		Return
    	End If

    	saveFileDialog.Filter = "PNG Files|*.png|JPEG Files|*.jpg"
    	saveFileDialog.Title = "Save QR Code"
    	saveFileDialog.FileName = "QRCode"

    	If saveFileDialog.ShowDialog() = DialogResult.OK Then
    		Try
    			pictureBox.Image.Save(saveFileDialog.FileName, DetermineImageFormat(saveFileDialog.FileName))
    			MessageBox.Show("QR Code has been saved!", "Success")
    		Catch ex As Exception
    			ShowError("An error occurred while saving the QR code", ex.Message)
    		End Try
    	End If
    End Sub
    $vbLabelText   $csharpLabel
    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-16.cs
    private System.Drawing.Imaging.ImageFormat DetermineImageFormat(string filePath)
    {
        return System.IO.Path.GetExtension(filePath).ToLower() == ".jpg" ? System.Drawing.Imaging.ImageFormat.Jpeg : System.Drawing.Imaging.ImageFormat.Png;
    }
    Private Function DetermineImageFormat(ByVal filePath As String) As System.Drawing.Imaging.ImageFormat
    	Return If(System.IO.Path.GetExtension(filePath).ToLower() = ".jpg", System.Drawing.Imaging.ImageFormat.Jpeg, System.Drawing.Imaging.ImageFormat.Png)
    End Function
    $vbLabelText   $csharpLabel

    4.8 Resetting the Application

    Clears user inputs and resets the form state.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-17.cs
    private void btn_reset_Click(object sender, EventArgs e)
    {
        ResetFields();
    }

    private void ResetFields()
    {
        txt_QR.Text = string.Empty;
        txt_dimension.Value = 200;
        txt_margin.Value = 0;
        bgColor = Color.White;
        color = Color.Black;
        txt_selected_color.BackColor = System.Drawing.Color.White;
        txt_selected_bgcolor.BackColor = System.Drawing.Color.Black;
        logoBmp = null;
        selected_logo.Image = null;
        pictureBox.Image = null;
    }
    Private Sub btn_reset_Click(ByVal sender As Object, ByVal e As EventArgs)
    	ResetFields()
    End Sub

    Private Sub ResetFields()
    	txt_QR.Text = String.Empty
    	txt_dimension.Value = 200
    	txt_margin.Value = 0
    	bgColor = Color.White
    	color = Color.Black
    	txt_selected_color.BackColor = System.Drawing.Color.White
    	txt_selected_bgcolor.BackColor = System.Drawing.Color.Black
    	logoBmp = Nothing
    	selected_logo.Image = Nothing
    	pictureBox.Image = Nothing
    End Sub
    $vbLabelText   $csharpLabel

    4.9 Error Handling

    Displays error messages to users.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-18.cs
    private static void ShowError(string title, string message)
    {
        MessageBox.Show($"{title}: {message}", "Error");
    }
    Private Shared Sub ShowError(ByVal title As String, ByVal message As String)
    	MessageBox.Show($"{title}: {message}", "Error")
    End Sub
    $vbLabelText   $csharpLabel

    4.10 Complete Code Example

    The full code combining all the above features can be found in the example file linked to your project.

    :path=/static-assets/qr/content-code-examples/tutorials/csharp-qr-code-generator-application-19.cs
    using IronQr;
    using IronSoftware.Drawing;
    using Color = IronSoftware.Drawing.Color;

    namespace IronQR_QR_Generator_WinForms
    {
        public partial class QR_Generator : Form
        {
            string qrCodesDirectory = System.IO.Path.Combine(Application.StartupPath, "QR Codes");
            Color bgColor = Color.White;
            Color color = Color.Black;
            AnyBitmap? logoBmp = null;

            public QR_Generator()
            {
                InitializeComponent();
                SetLicenseKey();
                EnsureDirectoryExists(qrCodesDirectory);
            }

            private static void SetLicenseKey()
            {
                IronQr.License.LicenseKey = "License-Key";
            }

            private static void EnsureDirectoryExists(string path)
            {
                if (!System.IO.Directory.Exists(path))
                {
                    System.IO.Directory.CreateDirectory(path);
                }
            }

            private void btn_color_Click(object sender, EventArgs e)
            {
                UpdateColor(ref color, txt_selected_color, false);
            }

            private void btn_background_Click(object sender, EventArgs e)
            {
                UpdateColor(ref bgColor, txt_selected_bgcolor, true);
            }

            private string ColorToHex(System.Drawing.Color color)
            {
                return $"#{color.R:X2}{color.G:X2}{color.B:X2}";
            }
            private void UpdateColor(ref Color targetColor, Control display, bool isBackground)
            {
                if (select_color.ShowDialog() == DialogResult.OK)
                {

                    var hexColor = ColorToHex(select_color.Color);
                    targetColor = new Color(hexColor);
                    display.BackColor = select_color.Color;
                }
            }

            private void btn_logo_Click(object sender, EventArgs e)
            {
                if (select_logo.ShowDialog() == DialogResult.OK)
                {
                    try
                    {
                        logoBmp = new AnyBitmap(select_logo.FileName);
                        selected_logo.Image = Image.FromFile(select_logo.FileName);
                    }
                    catch (Exception ex)
                    {
                        ShowError("An error occurred while loading the logo", ex.Message);
                    }
                }
            }

            private void btn_generate_Click(object sender, EventArgs e)
            {
                GenerateQRCode();
            }

            private void GenerateQRCode()
            {
                try
                {
                    var options = new QrOptions(QrErrorCorrectionLevel.High);
                    var myQr = QrWriter.Write(txt_QR.Text, options);
                    var style = CreateStyleOptions();
                    var qrImage = myQr.Save(style);
                    var fileName = $"{DateTime.Now:yyyyMMddHHmmssfff}_QR.png";
                    var fullPath = System.IO.Path.Combine(qrCodesDirectory, fileName);
                    qrImage.SaveAs(fullPath);
                    pictureBox.Image = Image.FromFile(fullPath);
                }
                catch (Exception ex)
                {
                    ShowError("An error occurred during QR code generation or saving", ex.Message);
                }
            }

            private QrStyleOptions CreateStyleOptions()
            {
                return new QrStyleOptions
                {
                    BackgroundColor = bgColor,
                    Color = color,
                    Dimensions = txt_dimension.Value > 0 ? Convert.ToInt32(txt_dimension.Value) : throw new ArgumentException("Please select valid dimensions!"),
                    Margins = Convert.ToInt32(txt_margin.Value),
                    Logo = logoBmp != null ? new QrLogo { Bitmap = logoBmp, Width = 50, Height = 50, CornerRadius = 5 } : null
                };
            }

            private void btn_save_Click(object sender, EventArgs e)
            {
                SaveQRCode();
            }

            private void SaveQRCode()
            {
                if (pictureBox.Image == null)
                {
                    MessageBox.Show("There is no QR code to save.", "Error");
                    return;
                }

                saveFileDialog.Filter = "PNG Files|*.png|JPEG Files|*.jpg";
                saveFileDialog.Title = "Save QR Code";
                saveFileDialog.FileName = "QRCode";

                if (saveFileDialog.ShowDialog() == DialogResult.OK)
                {
                    try
                    {
                        pictureBox.Image.Save(saveFileDialog.FileName, DetermineImageFormat(saveFileDialog.FileName));
                        MessageBox.Show("QR Code has been saved!", "Success");
                    }
                    catch (Exception ex)
                    {
                        ShowError("An error occurred while saving the QR code", ex.Message);
                    }
                }
            }

            private System.Drawing.Imaging.ImageFormat DetermineImageFormat(string filePath)
            {
                return System.IO.Path.GetExtension(filePath).ToLower() == ".jpg" ? System.Drawing.Imaging.ImageFormat.Jpeg : System.Drawing.Imaging.ImageFormat.Png;
            }

            private void btn_reset_Click(object sender, EventArgs e)
            {
                ResetFields();
            }

            private void ResetFields()
            {
                txt_QR.Text = string.Empty;
                txt_dimension.Value = 200;
                txt_margin.Value = 0;
                bgColor = Color.White;
                color = Color.Black;
                txt_selected_color.BackColor = bgColor;
                txt_selected_bgcolor.BackColor = color;
                logoBmp = null;
                selected_logo.Image = null;
                pictureBox.Image = null;
            }

            private static void ShowError(string title, string message)
            {
                MessageBox.Show($"{title}: {message}", "Error");
            }
        }
    }
    Imports IronQr
    Imports IronSoftware.Drawing
    Imports Color = IronSoftware.Drawing.Color

    Namespace IronQR_QR_Generator_WinForms
    	Partial Public Class QR_Generator
    		Inherits Form

    		Private qrCodesDirectory As String = System.IO.Path.Combine(Application.StartupPath, "QR Codes")
    		Private bgColor As Color = Color.White
    		Private color As Color = Color.Black
    		Private logoBmp? As AnyBitmap = Nothing

    		Public Sub New()
    			InitializeComponent()
    			SetLicenseKey()
    			EnsureDirectoryExists(qrCodesDirectory)
    		End Sub

    		Private Shared Sub SetLicenseKey()
    			IronQr.License.LicenseKey = "License-Key"
    		End Sub

    		Private Shared Sub EnsureDirectoryExists(ByVal path As String)
    			If Not System.IO.Directory.Exists(path) Then
    				System.IO.Directory.CreateDirectory(path)
    			End If
    		End Sub

    		Private Sub btn_color_Click(ByVal sender As Object, ByVal e As EventArgs)
    			UpdateColor(color, txt_selected_color, False)
    		End Sub

    		Private Sub btn_background_Click(ByVal sender As Object, ByVal e As EventArgs)
    			UpdateColor(bgColor, txt_selected_bgcolor, True)
    		End Sub

    		Private Function ColorToHex(ByVal color As System.Drawing.Color) As String
    			Return $"#{color.R:X2}{color.G:X2}{color.B:X2}"
    		End Function
    		Private Sub UpdateColor(ByRef targetColor As Color, ByVal display As Control, ByVal isBackground As Boolean)
    			If select_color.ShowDialog() = System.Windows.Forms.DialogResult.OK Then

    				Dim hexColor = ColorToHex(select_color.Color)
    				targetColor = New Color(hexColor)
    				display.BackColor = select_color.Color
    			End If
    		End Sub

    		Private Sub btn_logo_Click(ByVal sender As Object, ByVal e As EventArgs)
    			If select_logo.ShowDialog() = System.Windows.Forms.DialogResult.OK Then
    				Try
    					logoBmp = New AnyBitmap(select_logo.FileName)
    					selected_logo.Image = Image.FromFile(select_logo.FileName)
    				Catch ex As Exception
    					ShowError("An error occurred while loading the logo", ex.Message)
    				End Try
    			End If
    		End Sub

    		Private Sub btn_generate_Click(ByVal sender As Object, ByVal e As EventArgs)
    			GenerateQRCode()
    		End Sub

    		Private Sub GenerateQRCode()
    			Try
    				Dim options = New QrOptions(QrErrorCorrectionLevel.High)
    				Dim myQr = QrWriter.Write(txt_QR.Text, options)
    				Dim style = CreateStyleOptions()
    				Dim qrImage = myQr.Save(style)
    				Dim fileName = $"{DateTime.Now:yyyyMMddHHmmssfff}_QR.png"
    				Dim fullPath = System.IO.Path.Combine(qrCodesDirectory, fileName)
    				qrImage.SaveAs(fullPath)
    				pictureBox.Image = Image.FromFile(fullPath)
    			Catch ex As Exception
    				ShowError("An error occurred during QR code generation or saving", ex.Message)
    			End Try
    		End Sub

    		Private Function CreateStyleOptions() As QrStyleOptions
    'INSTANT VB TODO TASK: Throw expressions are not converted by Instant VB:
    'ORIGINAL LINE: return new QrStyleOptions { BackgroundColor = bgColor, Color = color, Dimensions = txt_dimension.Value > 0 ? Convert.ToInt32(txt_dimension.Value) : throw new ArgumentException("Please select valid dimensions!"), Margins = Convert.ToInt32(txt_margin.Value), Logo = logoBmp != null ? new QrLogo { Bitmap = logoBmp, Width = 50, Height = 50, CornerRadius = 5 } : null };
    			Return New QrStyleOptions With {
    				.BackgroundColor = bgColor,
    				.Color = color,
    				.Dimensions = If(txt_dimension.Value > 0, Convert.ToInt32(txt_dimension.Value), throw New ArgumentException("Please select valid dimensions!")),
    				.Margins = Convert.ToInt32(txt_margin.Value),
    				.Logo = If(logoBmp IsNot Nothing, New QrLogo With {
    					.Bitmap = logoBmp,
    					.Width = 50,
    					.Height = 50,
    					.CornerRadius = 5
    				}, Nothing)
    			}
    		End Function

    		Private Sub btn_save_Click(ByVal sender As Object, ByVal e As EventArgs)
    			SaveQRCode()
    		End Sub

    		Private Sub SaveQRCode()
    			If pictureBox.Image Is Nothing Then
    				MessageBox.Show("There is no QR code to save.", "Error")
    				Return
    			End If

    			saveFileDialog.Filter = "PNG Files|*.png|JPEG Files|*.jpg"
    			saveFileDialog.Title = "Save QR Code"
    			saveFileDialog.FileName = "QRCode"

    			If saveFileDialog.ShowDialog() = System.Windows.Forms.DialogResult.OK Then
    				Try
    					pictureBox.Image.Save(saveFileDialog.FileName, DetermineImageFormat(saveFileDialog.FileName))
    					MessageBox.Show("QR Code has been saved!", "Success")
    				Catch ex As Exception
    					ShowError("An error occurred while saving the QR code", ex.Message)
    				End Try
    			End If
    		End Sub

    		Private Function DetermineImageFormat(ByVal filePath As String) As System.Drawing.Imaging.ImageFormat
    			Return If(System.IO.Path.GetExtension(filePath).ToLower() = ".jpg", System.Drawing.Imaging.ImageFormat.Jpeg, System.Drawing.Imaging.ImageFormat.Png)
    		End Function

    		Private Sub btn_reset_Click(ByVal sender As Object, ByVal e As EventArgs)
    			ResetFields()
    		End Sub

    		Private Sub ResetFields()
    			txt_QR.Text = String.Empty
    			txt_dimension.Value = 200
    			txt_margin.Value = 0
    			bgColor = Color.White
    			color = Color.Black
    			txt_selected_color.BackColor = bgColor
    			txt_selected_bgcolor.BackColor = color
    			logoBmp = Nothing
    			selected_logo.Image = Nothing
    			pictureBox.Image = Nothing
    		End Sub

    		Private Shared Sub ShowError(ByVal title As String, ByVal message As String)
    			MessageBox.Show($"{title}: {message}", "Error")
    		End Sub
    	End Class
    End Namespace
    $vbLabelText   $csharpLabel

    Step 5: Run Application

    When the application is executed, the main window appears as organized with sections for input, styling, output, and actions. Follow the user interface to enter data, customize your QR code, and generate and save the QR code as desired.

    Conclusion

    In conclusion, this guide has walked you through the process of generating QR codes using the IronQR library in a C# application. By breaking down the steps from setting up your project in Visual Studio, integrating the IronQR library, designing a user-friendly interface, and writing the backend logic, we've demonstrated how accessible it is to add QR code functionality to your applications.

    For those interested in exploring the capabilities of IronQR further, it's worth noting that IronQR offers a free trial to get you started. Should you decide to integrate IronQR into your projects, licenses start at $799, providing a cost-effective solution for professional-grade QR code generation.

    常見問題解答

    如何在 C# 中創建二維碼生成器應用程式?

    要在 C# 中創建二維碼生成器應用程式,可以使用 IronQR 庫。首先在 Visual Studio 中設置 Windows Forms 應用程式,通過 NuGet 安裝 IronQR,設計應用程式的前端。使用 IronQR 的功能實現二維碼生成邏輯,例如顏色選擇和徽標嵌入。

    .NET 二維碼庫的優勢是什麼?

    .NET 二維碼庫如 IronQR 提供高級功能,例如高準確度讀取二維碼、生成二維碼的自訂選項,並支持各種 .NET 環境。它還允許二維碼調整大小和樣式。

    如何在 C# 中處理二維碼生成時的錯誤?

    在 C# 中,可以通過使用 try-catch 塊實施適當的錯誤處理機制來處理二維碼生成期間的錯誤。IronQR 有助於平滑的錯誤管理,確保在二維碼創建過程中出現的任何問題得到高效解決。

    我可以使用二維碼庫將徽標嵌入到二維碼中嗎?

    是的,您可以使用 IronQR 庫將徽標嵌入到二維碼中。此功能允許您通過將自定義徽標納入設計來增強二維碼的品牌化。

    如何保存 C# 應用程式中生成的二維碼?

    您可以使用 IronQR 的功能指定存儲目錄來保存 C# 應用程式中生成的二維碼。這允許您高效管理和存儲應用程式內生成的二維碼。

    配置二維碼庫的許可密鑰需要哪些步驟?

    要配置 IronQR 的許可密鑰,您需要在應用程式中整合許可代碼。這通常涉及添加 IronQR 提供的特定代碼行,以使用購買的許可激活庫。

    如何在 C# 應用程式中使用特定顏色樣式化二維碼?

    IronQR 允許您通過使用其顏色自訂功能來為二維碼設置樣式。您可以使用集成到應用程式中的顏色選擇對話框選擇二維碼的前景和背景顏色。

    在 Visual Studio 中安裝二維碼庫的過程是什麼?

    要在 Visual Studio 中安裝像 IronQR 這樣的二維碼庫,請使用 NuGet 套件管理器。搜索 'IronQR' 並點擊 'Install',將其添加到專案中。或者,使用套件管理器控制台使用命令 'Install-Package IronQR'。

    Curtis Chau
    技術作家

    Curtis Chau 擁有卡爾頓大學計算機科學學士學位,專注於前端開發,擅長於 Node.js、TypeScript、JavaScript 和 React。Curtis 熱衷於創建直觀且美觀的用戶界面,喜歡使用現代框架並打造結構良好、視覺吸引人的手冊。

    除了開發之外,Curtis 對物聯網 (IoT) 有著濃厚的興趣,探索將硬體和軟體結合的創新方式。在閒暇時間,他喜愛遊戲並構建 Discord 機器人,結合科技與創意的樂趣。

    準備好開始了嗎?
    Nuget 下載 47,669 | 版本: 2025.11 剛剛發布
