Cómo Escanear Códigos de Barras en ZXing Para Desarrolladores en C#

1. Features

• It can keep track of URLs, contact information, calendar events, and more.
• It was created with Java SE applications in mind.
• Through purpose, barcode scanner integration is possible.
• It is a simple Google Glass application.

2. Using ZXing with .NET

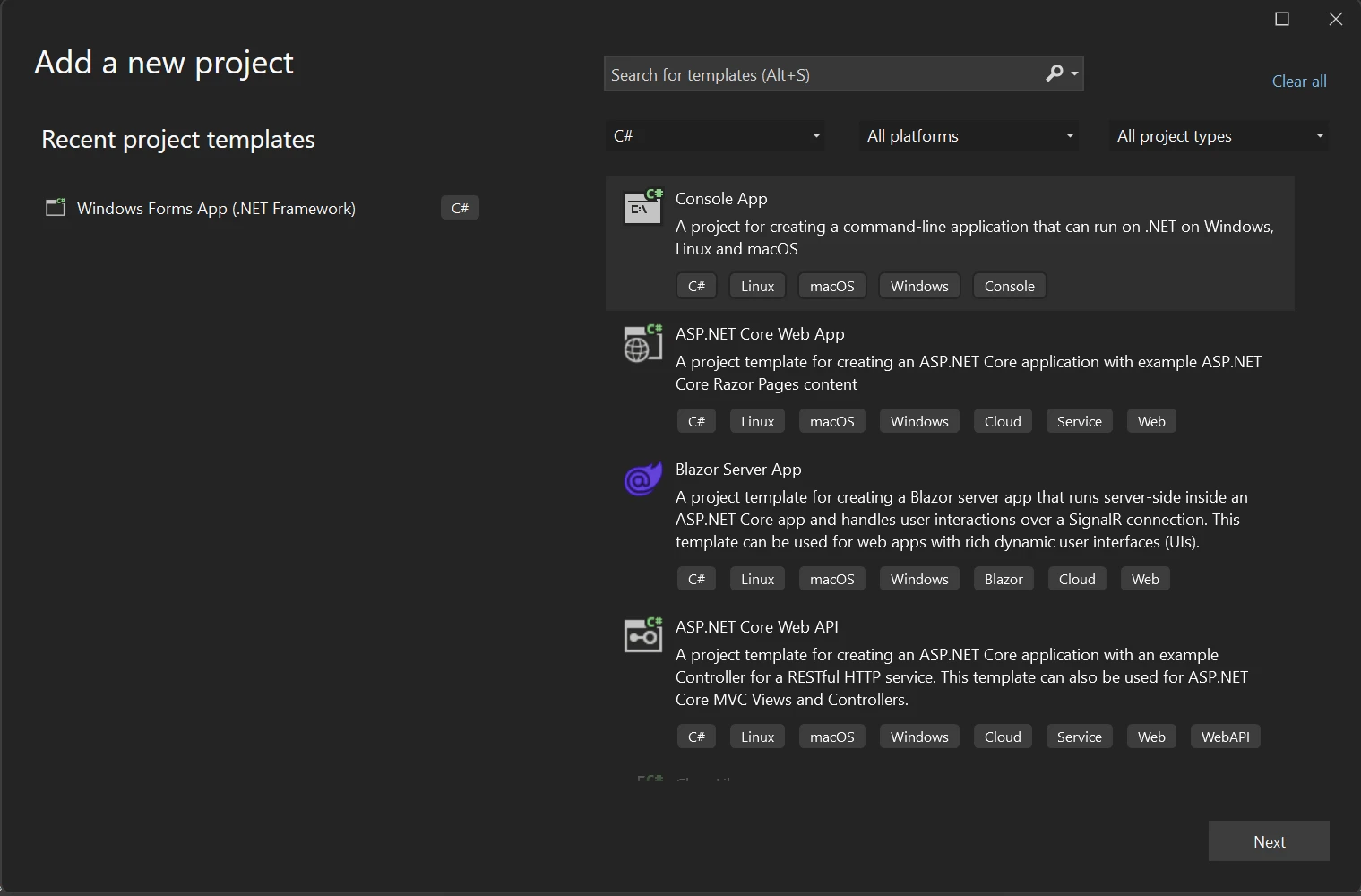

Open Visual Studio, choose "new project" from the file menu, then "console application". In this article, we are choosing the C# console app.

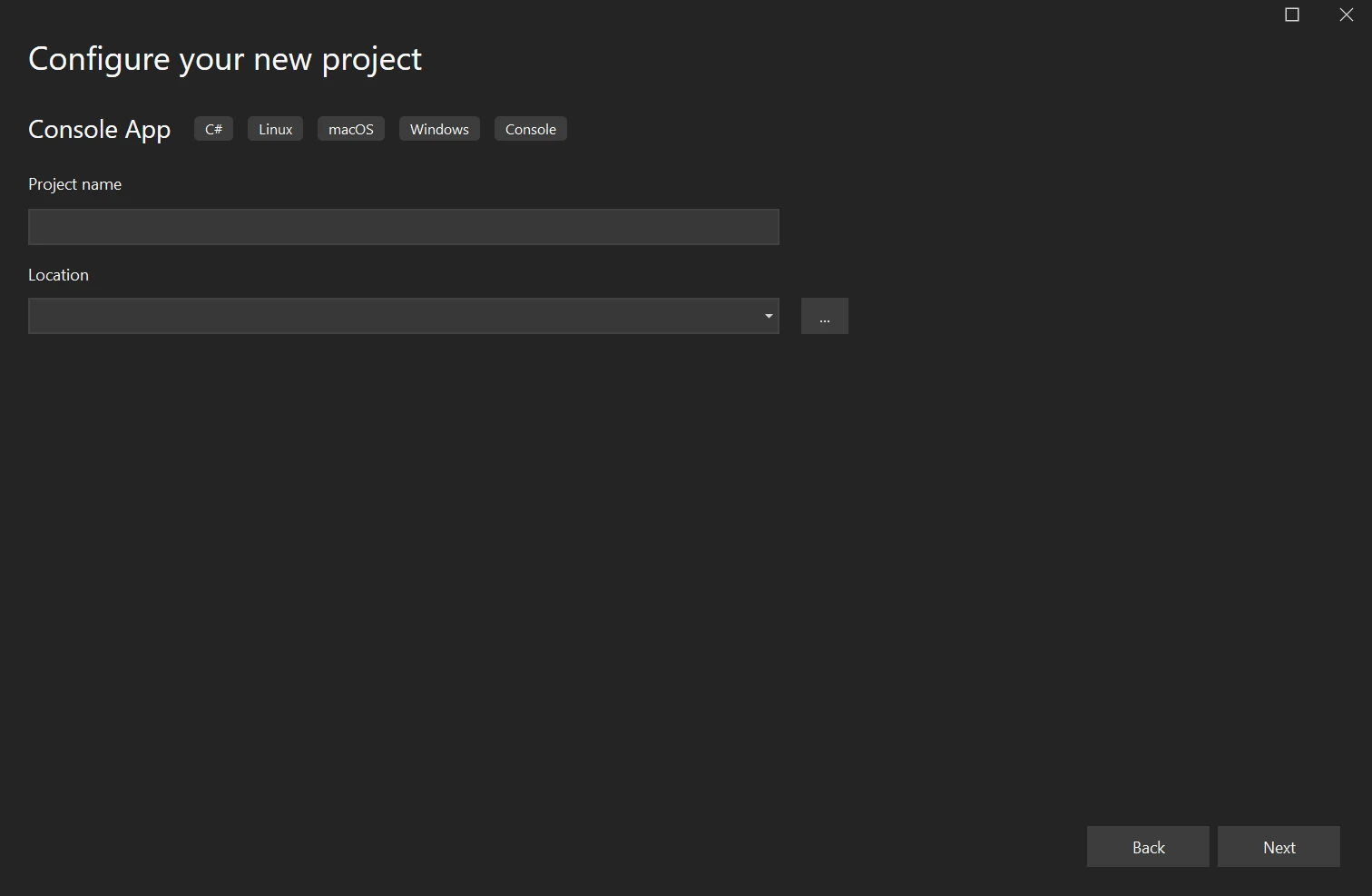

Enter the project name and the file path in the appropriate text box. Next, click the Create button to choose the required .NET Framework.

If you selected a console application, the project will now create its structure and open the program.cs file, allowing you to enter the program's code and build or execute it.

2.1 Install ZXing Barcode

Enter the following command into the NuGet Package Manager Console to install the ZXing library:

Install-Package ZXing.Net.Bindings.Windows.Compatibility

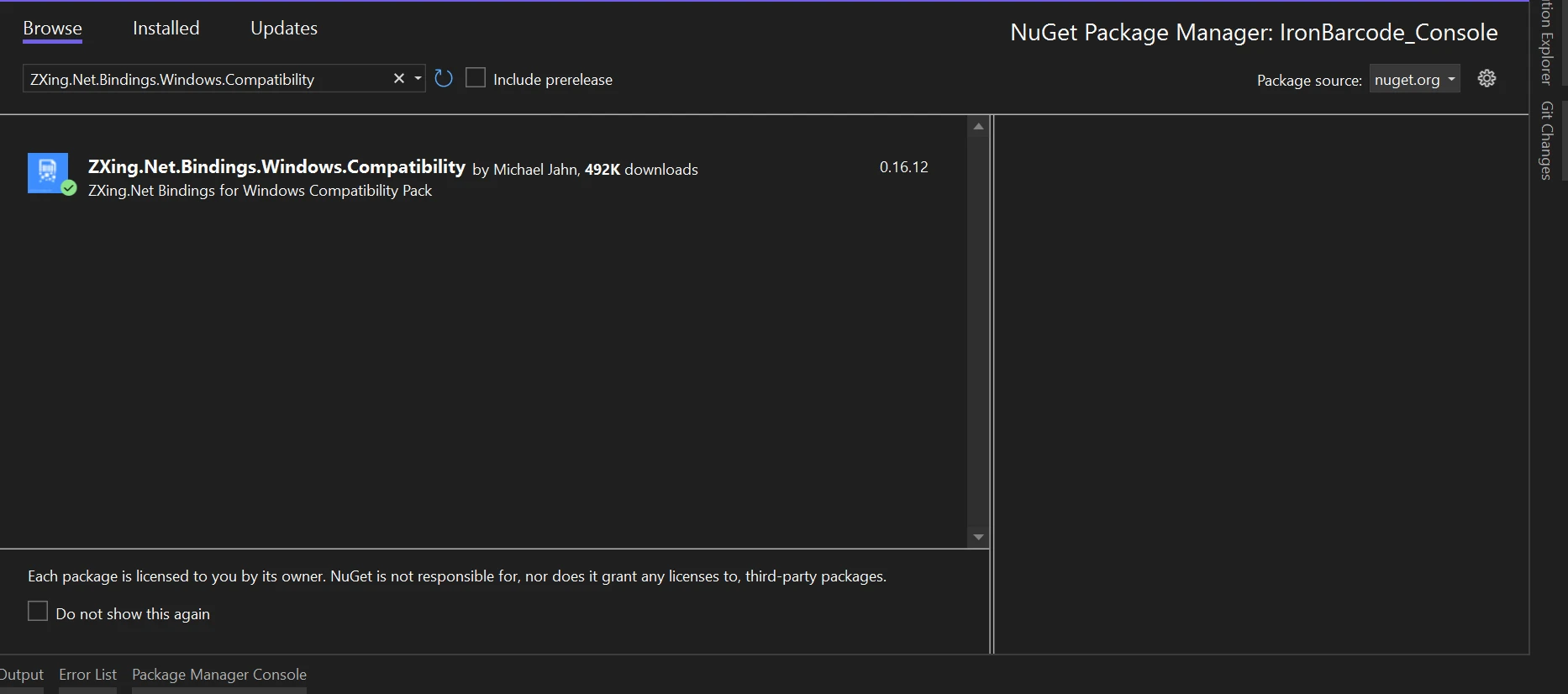

Alternatively, you can get the package using the NuGet package manager tool. Like the illustration below. Try installing the first result you choose.

2.2 Read and Write Barcode using ZXing

We can create a barcode using the following sample code. ZXing allows us to create more than 10 types of barcode formats.

using ZXing.Windows.Compatibility;

var options = new QrCodeEncodingOptions
{
    Width = 250,
    Height = 250,
};

var writer = new BarcodeWriter();
writer.Format = BarcodeFormat.QR_CODE;
writer.Options = options;

// Encode the string into a QR code bitmap image
System.Drawing.Bitmap _bitmap = writer.Write("Hello world");

// Save the bitmap as a PNG file
_bitmap.Save("Demo1.png");

using ZXing.Windows.Compatibility;

var options = new QrCodeEncodingOptions
{
    Width = 250,
    Height = 250,
};

var writer = new BarcodeWriter();
writer.Format = BarcodeFormat.QR_CODE;
writer.Options = options;

// Encode the string into a QR code bitmap image
System.Drawing.Bitmap _bitmap = writer.Write("Hello world");

// Save the bitmap as a PNG file
_bitmap.Save("Demo1.png");

Imports ZXing.Windows.Compatibility

Private options = New QrCodeEncodingOptions With {
	.Width = 250,
	.Height = 250
}

Private writer = New BarcodeWriter()
writer.Format = BarcodeFormat.QR_CODE
writer.Options = options

' Encode the string into a QR code bitmap image
Dim _bitmap As System.Drawing.Bitmap = writer.Write("Hello world")

' Save the bitmap as a PNG file
_bitmap.Save("Demo1.png")

The code above sets the height and width for the QrCodeEncodingOptions. Then it creates an instance of BarcodeWriter. For the BarcodeWriter, we set the barcode format as QR code. We assign the previously created QR code options to the writer. The Write method in the BarcodeWriter encodes the given string into a barcode and returns it as a bitmap image. The image is saved using the Save method of the bitmap. Below is the result from the code.

The next code sample demonstrates decoding a barcode using ZXing.

using ZXing.Windows.Compatibility;

// Load the barcode image into a bitmap
var barcodeBitmap = (System.Drawing.Bitmap)System.Drawing.Bitmap.FromFile("demo.png");

// Create a BarcodeReader object
var reader = new BarcodeReader();

// Decode the bitmap into a result
var result = reader.Decode(barcodeBitmap);

if (result != null)
{
    // Output the decoded text to the console
    Console.WriteLine(result.Text);
    Console.ReadKey();
}

using ZXing.Windows.Compatibility;

// Load the barcode image into a bitmap
var barcodeBitmap = (System.Drawing.Bitmap)System.Drawing.Bitmap.FromFile("demo.png");

// Create a BarcodeReader object
var reader = new BarcodeReader();

// Decode the bitmap into a result
var result = reader.Decode(barcodeBitmap);

if (result != null)
{
    // Output the decoded text to the console
    Console.WriteLine(result.Text);
    Console.ReadKey();
}

Imports ZXing.Windows.Compatibility

' Load the barcode image into a bitmap
Private barcodeBitmap = CType(System.Drawing.Bitmap.FromFile("demo.png"), System.Drawing.Bitmap)

' Create a BarcodeReader object
Private reader = New BarcodeReader()

' Decode the bitmap into a result
Private result = reader.Decode(barcodeBitmap)

If result IsNot Nothing Then
	' Output the decoded text to the console
	Console.WriteLine(result.Text)
	Console.ReadKey()
End If

In the code above, we first load the image into a bitmap and then create a BarcodeReader object. The Decode function allows us to pass the bitmap as a parameter, which can return results in multiple formats. We use the Text property to get the text encoded in the barcode.

1. Features

• IronBarcode can read and write the majority of barcode image formats and QR standards, including UPC A/E, Databar, EAN 8/13, MSI, Code 39/93/128, CodaB, RSS 14/Expanded, and ITF.
• While scanning scans and real-time video frames, IronBarcode can rectify rotation, noise, distortion, and skewing. To improve reading accuracy and speed, IronBarcode preprocesses barcode images automatically as they are being created. Dynamic barcodes are frequently used as they allow for changing content.
• IronBarcode's ability to utilize many cores and threads is advantageous for batch-processing servers.
• In single- and multipage documents, IronBarcode can automatically find one or more barcodes.

2. Using IronBarcode

To utilize the IronBarcode library in the solution, you must download the required package. To do this, use the following command in the NuGet Package Manager Console:

Install-Package BarCode

As an alternative, you can use the NuGet Package Manager, which will show all the search results, to seek and download the "Barcode" package. Then you can select the essential package to download into the program from them.

3. Read and Write Barcodes using IronBarcode

With just a few lines of code, we can quickly make barcode images using the IronBarcode library. Additionally, it enables us to save the created barcode as a separate picture file. Here is some sample C# code for creating a barcode label with a Console program.

using IronBarCode;

// Create a QR code with a medium error correction level
QRCodeWriter.CreateQrCode("Your text here", 500, QRCodeWriter.QrErrorCorrectionLevel.Medium).SaveAsPng("demo.png");

using IronBarCode;

// Create a QR code with a medium error correction level
QRCodeWriter.CreateQrCode("Your text here", 500, QRCodeWriter.QrErrorCorrectionLevel.Medium).SaveAsPng("demo.png");

Imports IronBarCode

' Create a QR code with a medium error correction level
QRCodeWriter.CreateQrCode("Your text here", 500, QRCodeWriter.QrErrorCorrectionLevel.Medium).SaveAsPng("demo.png")

This code produces a 500 by 500 pixel graphic using a medium level of error correction, and then saves it to a file location using the SaveAsPng method.

The next code example reads the text encoded in the QR code that we created in the previous example.

using IronBarCode;

// Load the QR code image into a bitmap
var barcodeBitmap = (System.Drawing.Bitmap)System.Drawing.Bitmap.FromFile("demo.png");

// Read the barcode image
var reader = IronBarCode.BarcodeReader.Read(barcodeBitmap);

// Output the decoded value to the console
Console.WriteLine(reader.Values[0]);
Console.ReadKey();

using IronBarCode;

// Load the QR code image into a bitmap
var barcodeBitmap = (System.Drawing.Bitmap)System.Drawing.Bitmap.FromFile("demo.png");

// Read the barcode image
var reader = IronBarCode.BarcodeReader.Read(barcodeBitmap);

// Output the decoded value to the console
Console.WriteLine(reader.Values[0]);
Console.ReadKey();

Imports IronBarCode

' Load the QR code image into a bitmap
Private barcodeBitmap = CType(System.Drawing.Bitmap.FromFile("demo.png"), System.Drawing.Bitmap)

' Read the barcode image
Private reader = IronBarCode.BarcodeReader.Read(barcodeBitmap)

' Output the decoded value to the console
Console.WriteLine(reader.Values(0))
Console.ReadKey()

We first load the image into a bitmap, and then read the image using the Read method on the BarcodeReader class. We use the Values property on the BarcodeResults object returned from the Read method to get the content that was read from the QR code.

To know more about ZXing and how it compares with IronBarcode, read this next blog post.

Our Reading Barcodes tutorial also provides more information about how to use IronBarcode to read barcodes and QR codes. For more code tutorials on IronBarcode.
