如何在 Android 上扫描 QR 代码(初学者教程)

如今,QR码无处不在,作为快速链接到网站、折扣或重要信息的工具。 然而,在所有Android设备上扫描它们的方法并不总是相同。 根据您的手机型号,您可能能够使用内置的相机应用程序,或者您可能需要一个单独的QR码扫描器。 为了消除任何困惑,我们整理了一份详细指南,以帮助您在任何Android智能手机或平板电脑上轻松扫描QR码。 我们还将探讨使用IronQR库以编程方式扫描QR码的方法。

在Android设备上扫描QR码的内置方法

Android设备通常配备了支持QR码扫描的原生功能。 这些内置方法提供了便利和安全性,因为它们不需要安装第三方应用程序。 让我们看看Android设备用户可用的主要内置选项。

1. Google Lens应用程序

Google Lens是一个强大的视觉分析工具,具有QR码扫描功能。 这个应用程序通常预装在Android设备上,可以通过各种入口访问。

访问Google Lens

用户可以通过几种方法在其Android手机上访问Google Lens,具体取决于其设备和偏好。 最常见的方法是通过Google应用程序。以下是访问Google Lens的步骤:

  1. 打开Google应用程序。
  2. 在搜索栏附近找到Google Lens图标。

如何扫描QR码Android(初学者教程):图1

  1. 点击图标以激活Google Lens。

对于那些更喜欢使用现有图像的人,Google Photos提供了另一个入口。 过程如下:

  1. 打开Google Photos。

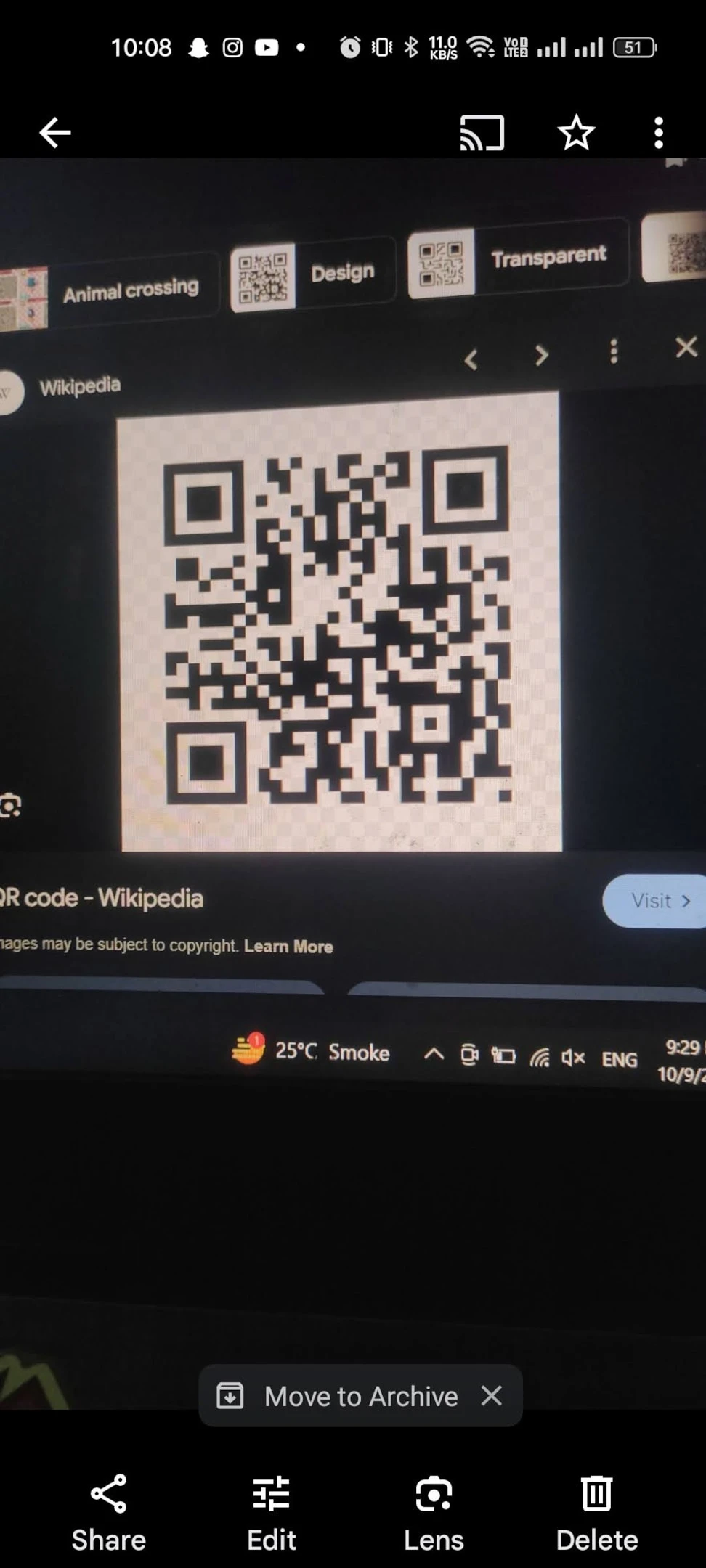

  2. 选择包含QR码的图像。

如何扫描QR码Android(初学者教程):图2

  1. 点击屏幕底部的Google Lens图标。 之后,您可以使用Google Lens功能进行QR码扫描。

一些Android设备,特别是那些运行更新版本操作系统的设备,将Google Lens直接集成到原生相机应用程序中。 这些设备的用户可以通过以下方式访问Google Lens:

  1. 启动相机应用程序。
  2. 寻找"模式"或"更多"选项。
  3. 如果可用,选择Google Lens。

使用Google Lens进行QR码扫描

激活Google Lens后,扫描QR码的过程很简单。 以下是如何使用它的方法:

  1. 将设备的相机对准QR码。
  2. 等待Google Lens自动启动扫描。
  3. 当识别到QR码时,会弹出一个包含编码信息的窗口。
  4. 点击弹出窗口进入链接内容或执行相关操作。

2. 快速设置磁贴

一些Android设备提供了用于QR码扫描的快速设置磁贴,提供快速访问此功能。 要设置和使用此功能:

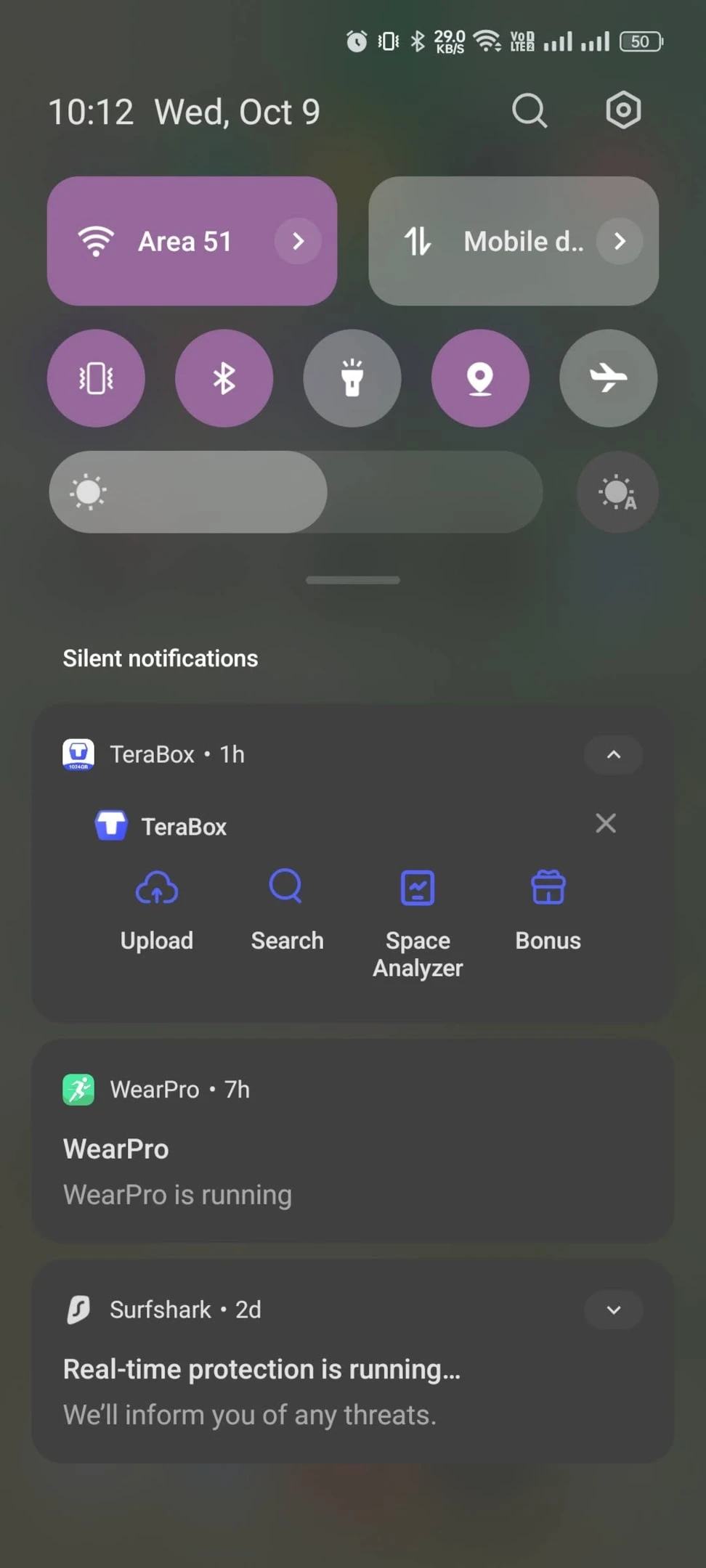

  1. 从屏幕顶部向下滑动以访问快速设置面板。

如何扫描QR码Android(初学者教程):图3

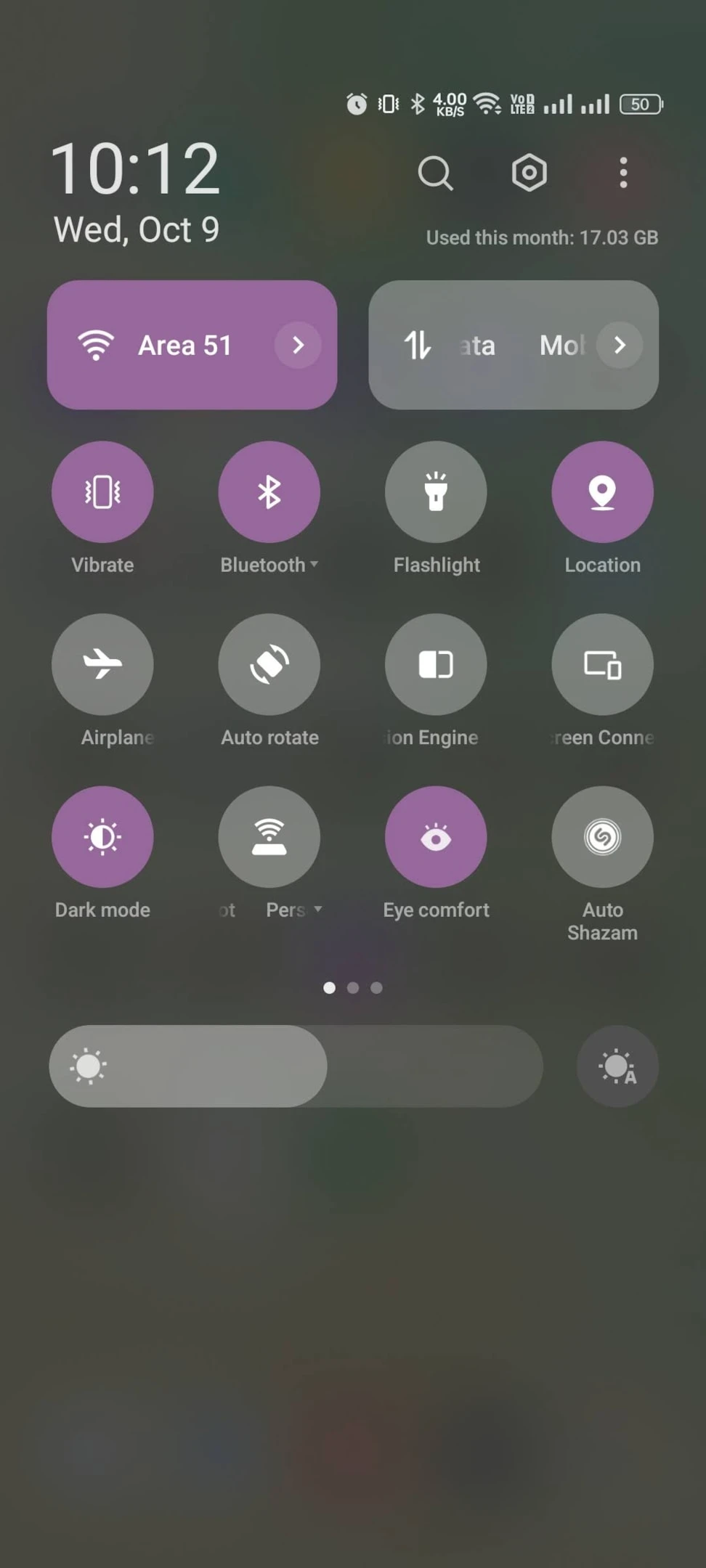

  1. 再次向下滑动以展开完整面板。

如何扫描QR码Android(初学者教程):图4

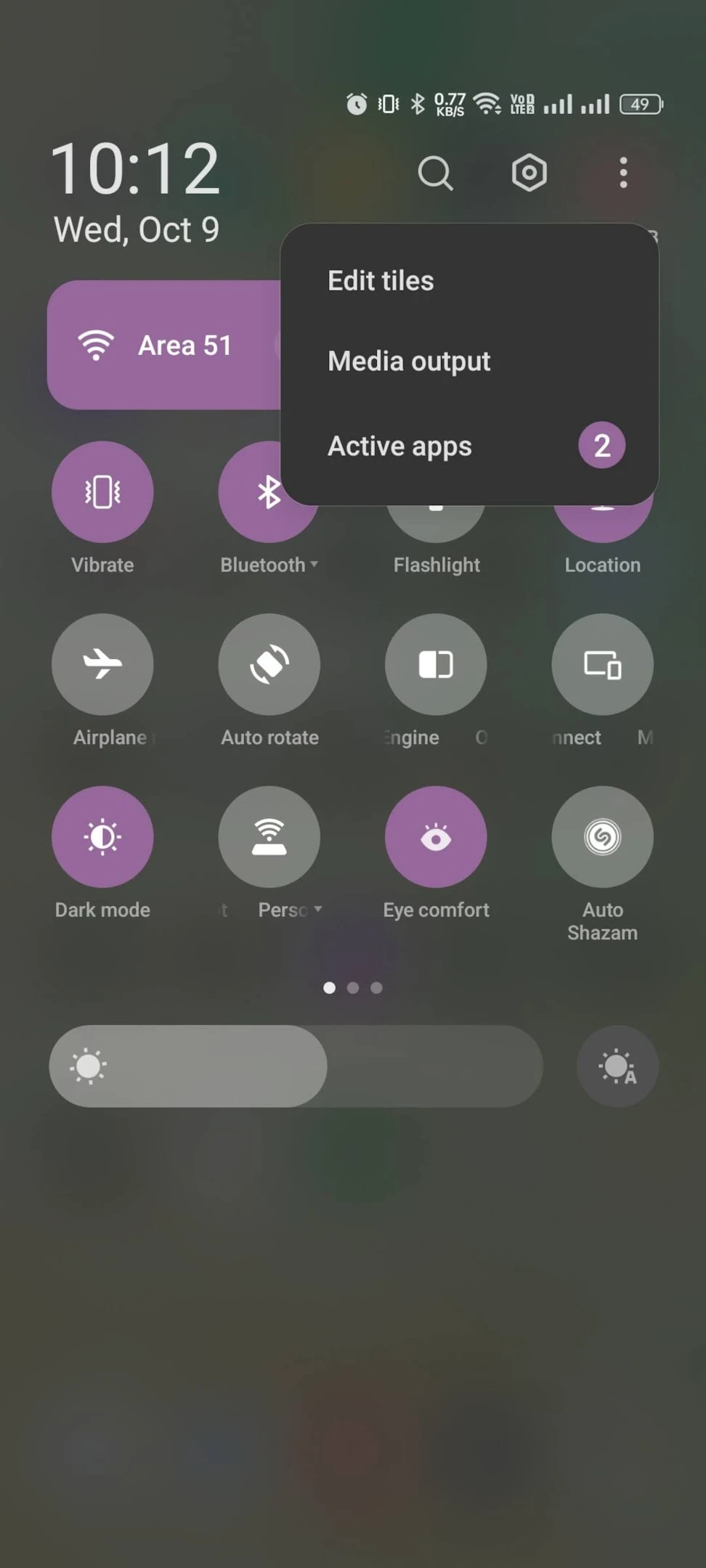

  1. 找到编辑功能,通常是铅笔图标或三点图标。

如何扫描QR码Android(初学者教程):图5

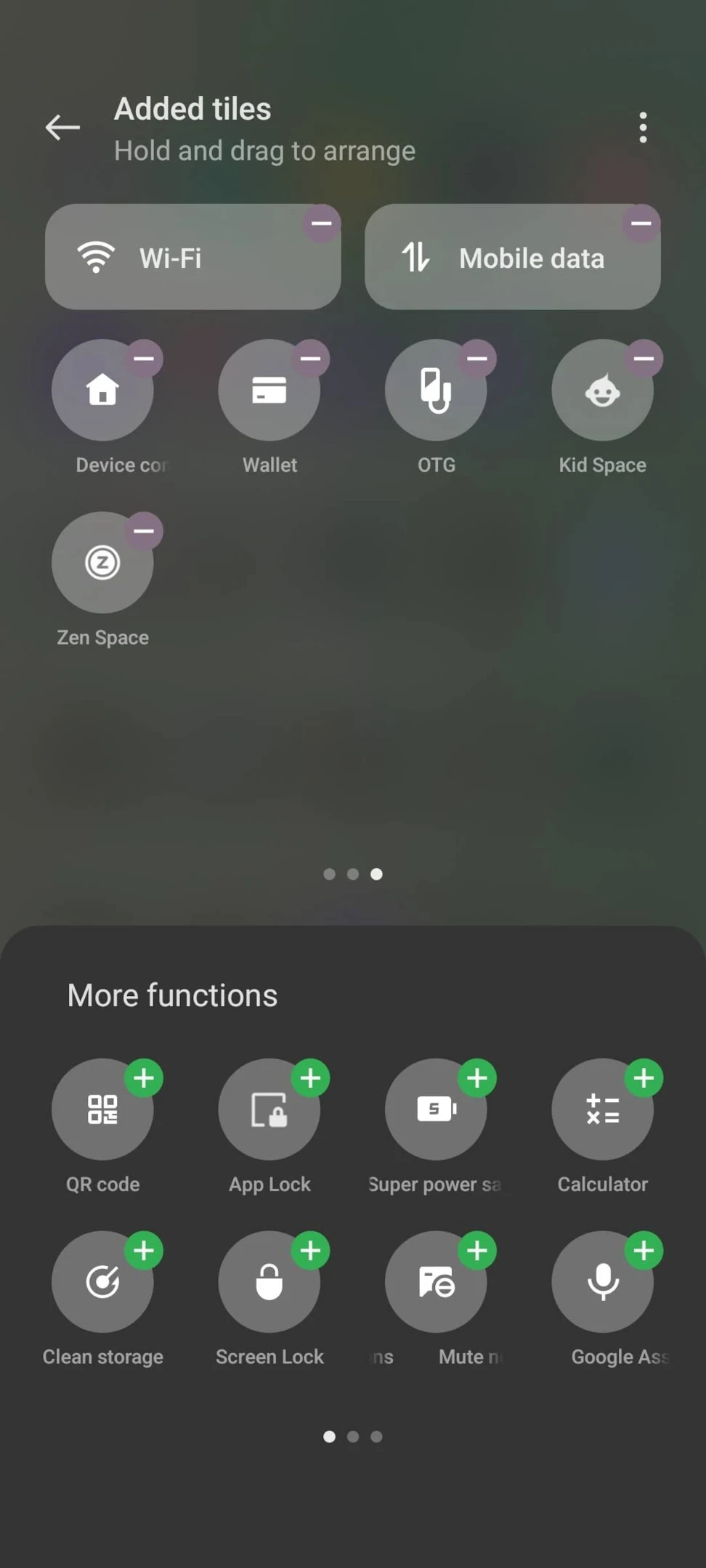

  1. 在编辑模式下,寻找标记为"QR码"或"QR扫描器"的磁贴。

如何扫描QR码Android(初学者教程):图6

  1. 将此磁贴拖动到活动快速设置区域。
  2. 保存更改以确认新布局。

要利用快速设置QR码扫描器:

  1. 打开快速设置面板。
  2. 点击QR码扫描器磁贴。
  3. 设备将启动QR码扫描界面,这可能使用相机应用或Google Lens。
  4. 将相机指向QR码以启动扫描。

这些内置方法为Android用户提供了有效的QR码扫描方式,无需额外的软件安装。 用户可以快速访问QR码中编码的信息,同时保持设备的安全性和完整性。 除此之外,您还可以通过Google Play Store下载第三方应用程序以在Android手机上扫描QR码。

介绍IronQR .NET库

虽然我们讨论的内置方法为最终用户提供了出色的QR码扫描能力,但开发人员经常需要更强大的工具来在其应用程序中创建和处理QR码。 这就是IronQR .NET库发挥作用的地方。 它为Android应用程序开发提供了强大的QR码功能解决方案。

IronQR概述

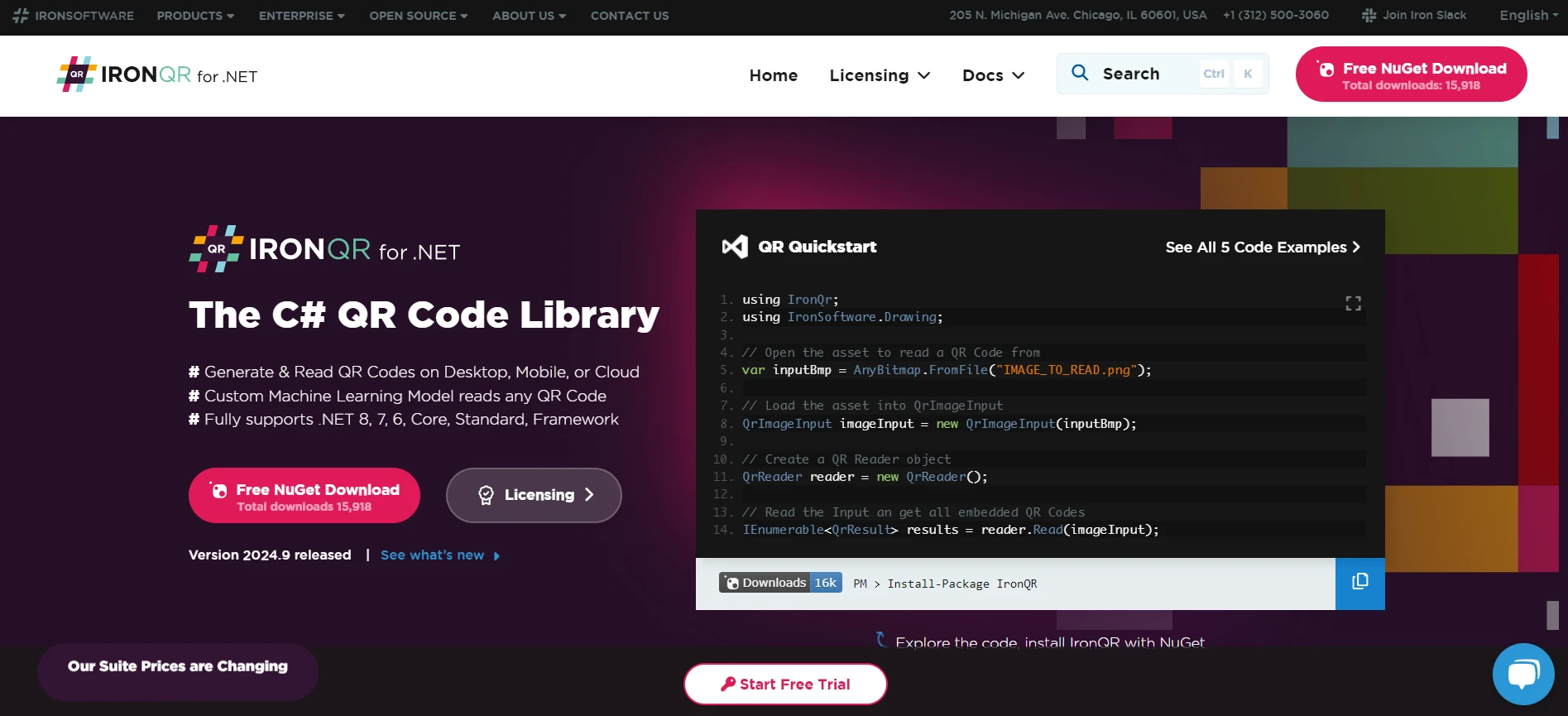

如何扫描QR码Android(初学者教程):图7

IronQR是一个全面的.NET库,专为生成、阅读QR码和操控QR码而设计。 虽然主要针对.NET开发人员,但它可以通过Xamarin或.NET MAUI等框架用于Android开发。 这是具有QR功能的跨平台应用程序的完美选择。

关键特性与优势

IronQR提供许多与QR码功能相关的特性:

  1. QR码生成:开发人员可以以编程方式创建QR码,控制各种参数,如大小、纠错级别和内容。
  2. 高级扫描能力:该库提供强大的算法,在困难条件下或从图像中读取QR码。
  3. 自定义选项:IronQR允许创建定制化的QR码,包括添加徽标或自定义颜色,同时保持可扫描性。
  4. 支持多种数据类型:该库可以将不同类型的数据(包括URL、联系信息和自定义文本)编码到QR码中。
  5. 错误处理和纠错:IronQR实施先进的纠错技术,确保生成的QR码可靠且易于扫描。

与Android开发的集成

对于在.NET环境中工作的Android开发人员,IronQR可以集成到项目中,以提供服务器端QR码生成或增强Android应用程序的能力。 这种集成允许进行更复杂的QR码操作,这可能无法通过标准Android库实现。

开发人员可以创建具有复杂QR码功能的Android应用程序,例如批量QR码生成、先进的解码特性、或符合品牌要求的自定义QR码设计。 IronQR .NET库是开发人员扩展其Android应用程序的QR码功能的重要工具,超越标准的内置特性。

代码示例

以下是使用IronQR的.NET MAUI QR代码扫描器应用程序的演示。 在项目中安装IronQR库后,更新MauiPage.xaml代码:

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="QR_Code_Business_Card.MainPage"
             Title="QR Code Reader">
    <Grid Padding="20" RowDefinitions="Auto,*" ColumnDefinitions="*,Auto,*">
        <!-- Left side -->
        <VerticalStackLayout Grid.Row="1" Grid.Column="0" Spacing="20">
            <Button x:Name="ScanQRButton"
                    Text="Scan QR Code"
                    Clicked="OnScanQRButtonClicked"
                    HorizontalOptions="Fill"
                    BackgroundColor="#6200EE"
                    TextColor="White"
                    FontAttributes="Bold"
                    CornerRadius="10" />
            <Frame BorderColor="#E0E0E0" Padding="0" CornerRadius="10" HasShadow="True">
                <Grid>
                    <Image x:Name="SelectedImage"
                           HeightRequest="300"
                           WidthRequest="300"
                           Aspect="AspectFit" />
                    <ActivityIndicator x:Name="LoadingIndicator"
                                       IsRunning="False"
                                       IsVisible="False"
                                       Color="#6200EE"
                                       VerticalOptions="Center"
                                       HorizontalOptions="Center" />
                </Grid>
            </Frame>
        </VerticalStackLayout>
        <!-- Divider -->
        <BoxView Grid.Row="0" Grid.RowSpan="2" Grid.Column="1"
                 WidthRequest="1"
                 Color="#E0E0E0"
                 Margin="10,0" />
        <!-- Right side -->
        <VerticalStackLayout Grid.Row="1" Grid.Column="2" Spacing="20">
            <Frame BorderColor="#E0E0E0" Padding="10" CornerRadius="10" HasShadow="True">
                <Editor x:Name="ResultEditor"
                        HeightRequest="200"
                        IsReadOnly="True"
                        Placeholder="QR code content will appear here"
                        FontSize="16" />
            </Frame>
            <Button x:Name="CopyTextButton"
                    Text="Copy Text"
                    Clicked="OnCopyTextButtonClicked"
                    HorizontalOptions="Fill"
                    BackgroundColor="#6200EE"
                    TextColor="White"
                    FontAttributes="Bold"
                    CornerRadius="10" />
        </VerticalStackLayout>
    </Grid>
</ContentPage>
<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="QR_Code_Business_Card.MainPage"
             Title="QR Code Reader">
    <Grid Padding="20" RowDefinitions="Auto,*" ColumnDefinitions="*,Auto,*">
        <!-- Left side -->
        <VerticalStackLayout Grid.Row="1" Grid.Column="0" Spacing="20">
            <Button x:Name="ScanQRButton"
                    Text="Scan QR Code"
                    Clicked="OnScanQRButtonClicked"
                    HorizontalOptions="Fill"
                    BackgroundColor="#6200EE"
                    TextColor="White"
                    FontAttributes="Bold"
                    CornerRadius="10" />
            <Frame BorderColor="#E0E0E0" Padding="0" CornerRadius="10" HasShadow="True">
                <Grid>
                    <Image x:Name="SelectedImage"
                           HeightRequest="300"
                           WidthRequest="300"
                           Aspect="AspectFit" />
                    <ActivityIndicator x:Name="LoadingIndicator"
                                       IsRunning="False"
                                       IsVisible="False"
                                       Color="#6200EE"
                                       VerticalOptions="Center"
                                       HorizontalOptions="Center" />
                </Grid>
            </Frame>
        </VerticalStackLayout>
        <!-- Divider -->
        <BoxView Grid.Row="0" Grid.RowSpan="2" Grid.Column="1"
                 WidthRequest="1"
                 Color="#E0E0E0"
                 Margin="10,0" />
        <!-- Right side -->
        <VerticalStackLayout Grid.Row="1" Grid.Column="2" Spacing="20">
            <Frame BorderColor="#E0E0E0" Padding="10" CornerRadius="10" HasShadow="True">
                <Editor x:Name="ResultEditor"
                        HeightRequest="200"
                        IsReadOnly="True"
                        Placeholder="QR code content will appear here"
                        FontSize="16" />
            </Frame>
            <Button x:Name="CopyTextButton"
                    Text="Copy Text"
                    Clicked="OnCopyTextButtonClicked"
                    HorizontalOptions="Fill"
                    BackgroundColor="#6200EE"
                    TextColor="White"
                    FontAttributes="Bold"
                    CornerRadius="10" />
        </VerticalStackLayout>
    </Grid>
</ContentPage>
XML

之后,更新MauiPage.xaml.cs代码:

using IronQr;
using IronSoftware.Drawing;
namespace QR_Code_Business_Card
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            License.LicenseKey = "License-Key";
        }

        private async void OnScanQRButtonClicked(object sender, EventArgs e)
        {
            try
            {
                var result = await FilePicker.PickAsync(new PickOptions
                {
                    FileTypes = FilePickerFileType.Images,
                    PickerTitle = "Pick an image with a QR code"
                });

                if (result != null)
                {
                    string filePath = result.FullPath;
                    SelectedImage.Source = ImageSource.FromFile(filePath);

                    // Show loading indicator
                    LoadingIndicator.IsVisible = true;
                    LoadingIndicator.IsRunning = true;
                    ResultEditor.Text = "Processing QR code...";

                    // Process QR code in the background
                    await Task.Run(() =>
                    {
                        var inputBmp = AnyBitmap.FromFile(filePath);
                        QrImageInput imageInput = new QrImageInput(inputBmp);
                        QrReader reader = new QrReader();
                        IEnumerable<QrResult> results = reader.Read(imageInput);

                        MainThread.BeginInvokeOnMainThread(() =>
                        {
                            if (results.Any())
                            {
                                string scannedData = results.First().Value.ToString();
                                ResultEditor.Text = scannedData;
                            }
                            else
                            {
                                ResultEditor.Text = "No QR code found in the image.";
                            }

                            // Hide loading indicator
                            LoadingIndicator.IsVisible = false;
                            LoadingIndicator.IsRunning = false;
                        });
                    });
                }
            }
            catch (Exception ex)
            {
                ResultEditor.Text = $"An error occurred: {ex.Message}";
                LoadingIndicator.IsVisible = false;
                LoadingIndicator.IsRunning = false;
            }
        }

        private async void OnCopyTextButtonClicked(object sender, EventArgs e)
        {
            if (!string.IsNullOrWhiteSpace(ResultEditor.Text))
            {
                await Clipboard.SetTextAsync(ResultEditor.Text);
                await DisplayAlert("Success", "Text copied to clipboard", "OK");
            }
            else
            {
                await DisplayAlert("Error", "No text to copy", "OK");
            }
        }
    }
}
using IronQr;
using IronSoftware.Drawing;
namespace QR_Code_Business_Card
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            License.LicenseKey = "License-Key";
        }

        private async void OnScanQRButtonClicked(object sender, EventArgs e)
        {
            try
            {
                var result = await FilePicker.PickAsync(new PickOptions
                {
                    FileTypes = FilePickerFileType.Images,
                    PickerTitle = "Pick an image with a QR code"
                });

                if (result != null)
                {
                    string filePath = result.FullPath;
                    SelectedImage.Source = ImageSource.FromFile(filePath);

                    // Show loading indicator
                    LoadingIndicator.IsVisible = true;
                    LoadingIndicator.IsRunning = true;
                    ResultEditor.Text = "Processing QR code...";

                    // Process QR code in the background
                    await Task.Run(() =>
                    {
                        var inputBmp = AnyBitmap.FromFile(filePath);
                        QrImageInput imageInput = new QrImageInput(inputBmp);
                        QrReader reader = new QrReader();
                        IEnumerable<QrResult> results = reader.Read(imageInput);

                        MainThread.BeginInvokeOnMainThread(() =>
                        {
                            if (results.Any())
                            {
                                string scannedData = results.First().Value.ToString();
                                ResultEditor.Text = scannedData;
                            }
                            else
                            {
                                ResultEditor.Text = "No QR code found in the image.";
                            }

                            // Hide loading indicator
                            LoadingIndicator.IsVisible = false;
                            LoadingIndicator.IsRunning = false;
                        });
                    });
                }
            }
            catch (Exception ex)
            {
                ResultEditor.Text = $"An error occurred: {ex.Message}";
                LoadingIndicator.IsVisible = false;
                LoadingIndicator.IsRunning = false;
            }
        }

        private async void OnCopyTextButtonClicked(object sender, EventArgs e)
        {
            if (!string.IsNullOrWhiteSpace(ResultEditor.Text))
            {
                await Clipboard.SetTextAsync(ResultEditor.Text);
                await DisplayAlert("Success", "Text copied to clipboard", "OK");
            }
            else
            {
                await DisplayAlert("Error", "No text to copy", "OK");
            }
        }
    }
}
Imports IronQr
Imports IronSoftware.Drawing
Namespace QR_Code_Business_Card
	Partial Public Class MainPage
		Inherits ContentPage

		Public Sub New()
			InitializeComponent()
			License.LicenseKey = "License-Key"
		End Sub

		Private Async Sub OnScanQRButtonClicked(ByVal sender As Object, ByVal e As EventArgs)
			Try
				Dim result = Await FilePicker.PickAsync(New PickOptions With {
					.FileTypes = FilePickerFileType.Images,
					.PickerTitle = "Pick an image with a QR code"
				})

				If result IsNot Nothing Then
					Dim filePath As String = result.FullPath
					SelectedImage.Source = ImageSource.FromFile(filePath)

					' Show loading indicator
					LoadingIndicator.IsVisible = True
					LoadingIndicator.IsRunning = True
					ResultEditor.Text = "Processing QR code..."

					' Process QR code in the background
					Await Task.Run(Sub()
						Dim inputBmp = AnyBitmap.FromFile(filePath)
						Dim imageInput As New QrImageInput(inputBmp)
						Dim reader As New QrReader()
						Dim results As IEnumerable(Of QrResult) = reader.Read(imageInput)

						MainThread.BeginInvokeOnMainThread(Sub()
							If results.Any() Then
								Dim scannedData As String = results.First().Value.ToString()
								ResultEditor.Text = scannedData
							Else
								ResultEditor.Text = "No QR code found in the image."
							End If

							' Hide loading indicator
							LoadingIndicator.IsVisible = False
							LoadingIndicator.IsRunning = False
						End Sub)
					End Sub)
				End If
			Catch ex As Exception
				ResultEditor.Text = $"An error occurred: {ex.Message}"
				LoadingIndicator.IsVisible = False
				LoadingIndicator.IsRunning = False
			End Try
		End Sub

		Private Async Sub OnCopyTextButtonClicked(ByVal sender As Object, ByVal e As EventArgs)
			If Not String.IsNullOrWhiteSpace(ResultEditor.Text) Then
				Await Clipboard.SetTextAsync(ResultEditor.Text)
				Await DisplayAlert("Success", "Text copied to clipboard", "OK")
			Else
				Await DisplayAlert("Error", "No text to copy", "OK")
			End If
		End Sub
	End Class
End Namespace
$vbLabelText   $csharpLabel

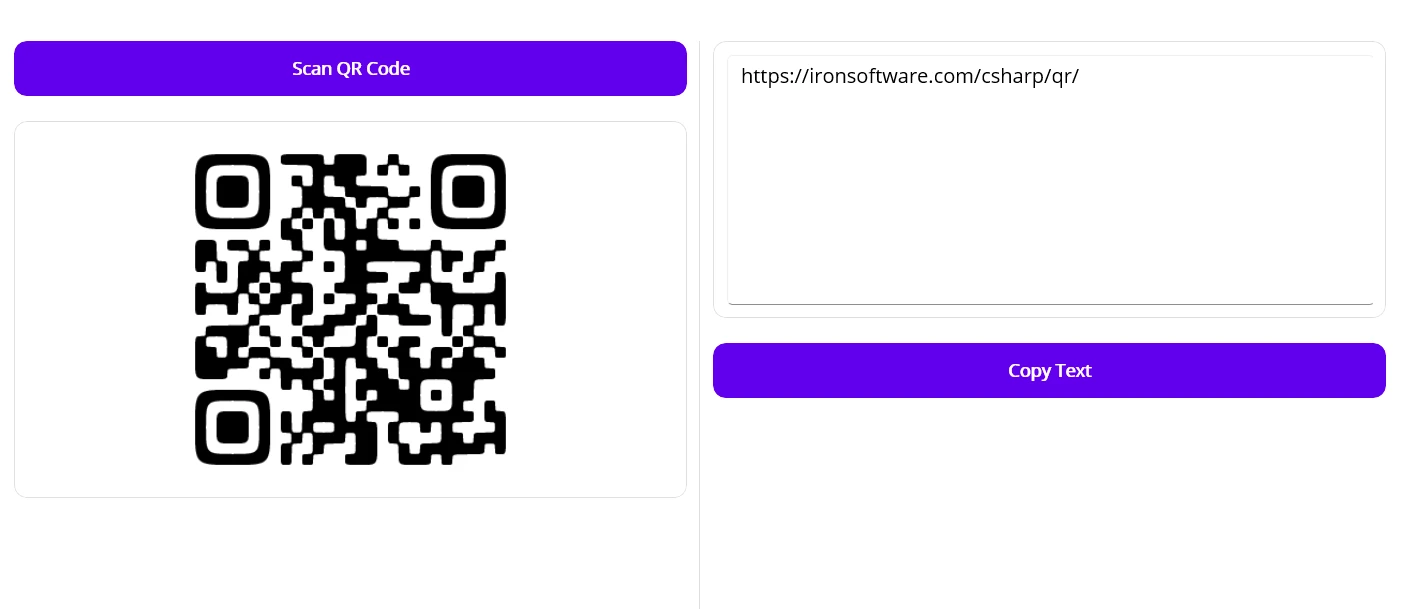

运行应用程序后,您将看到以下用户界面。 选择QR码后,它会扫描QR码并显示文本框中的结果文本,您可以使用复制按钮来复制。

如何扫描QR码Android(初学者教程):图8

结论

如何扫描QR码Android(初学者教程):图9

使用如Google Lens和快速设置磁贴等内置功能,在Android设备上扫描QR码变得轻而易举。 这些原生方法为用户提供快速和安全的QR码信息访问,无需额外的应用程序。

对于希望在其应用程序中整合高级QR码功能的开发人员,IronQR .NET库提供了强大的解决方案。 它支持自定义QR码生成、先进的扫描能力和广泛的自定义选项。 IronQR为开发人员提供免费试用以探索其功能,许可从$799起,为实现专业级的Android应用QR码集成提供了有价值的投资。

常见问题解答

如何使用内置摄像头在我的Android设备上扫描二维码?

如果相机应用与Google Lens集成,您通常可以使用内置摄像头应用扫描二维码。打开相机,将其对准二维码,并在支持的情况下,摄像机会显示与二维码相关的链接或操作。

什么是Google Lens,如何用于扫描Android上的二维码?

Google Lens是一种包含二维码扫描功能的视觉搜索工具。可以通过您的Android设备上的Google应用或Google Photos访问它。要扫描二维码,请打开Google Lens,将其对准二维码,它会提供与该代码相关的信息或链接。

如何将二维码扫描仪添加到我的Android快速设置中?

要将二维码扫描仪添加到快速设置中,请从您的Android设备顶部向下滑动以打开快速设置,然后点击'编辑'或铅笔图标,将QR扫描仪图块拖入活动区域以便快速访问。

在Android上扫描二维码需要第三方应用吗?

不一定。许多Android设备通过Google Lens或快速设置图块具有内置的二维码扫描功能。但是,如果您的设备不支持这些功能,您可能需要一个第三方应用。

开发人员可以使用什么库为他们的应用程序添加二维码功能?

开发人员可以使用IronQR .NET库为他们的应用程序添加二维码生成、阅读和处理功能,从而实现高级QRCode功能。

IronQR可以用于Android应用开发吗?

是的,IronQR可以通过像Xamarin或.NET MAUI这样的框架集成到Android应用开发中,提供如生成和扫描等高级二维码功能。

IronQR库为开发人员提供了哪些功能?

IronQR提供二维码生成、先进的扫描功能、定制选项、纠错以及支持编码各种数据类型的功能。

开发人员如何将IronQR集成到他们的Android项目中?

开发者可以通过使用.NET框架如Xamarin或.NET MAUI将IronQR集成到Android项目中,从而实现服务器端二维码生成或增强应用程序功能,提供高级二维码功能。

IronQR有试用版吗?

是的,IronQR为开发者提供了免费试用版,以便在购买专业许可证前探索其功能。

Jordi Bardia
软件工程师
Jordi 最擅长 Python、C# 和 C++,当他不在 Iron Software 利用这些技能时,他就在游戏编程。分享产品测试、产品开发和研究的责任,Jordi 在持续的产品改进中增加了巨大的价值。多样的经验使他面临挑战并保持投入,他表示这是在 Iron Software 工作的最喜欢的方面之一。Jordi 在佛罗里达州迈阿密长大,并在佛罗里达大学学习计算机科学和统计学。
